Usage

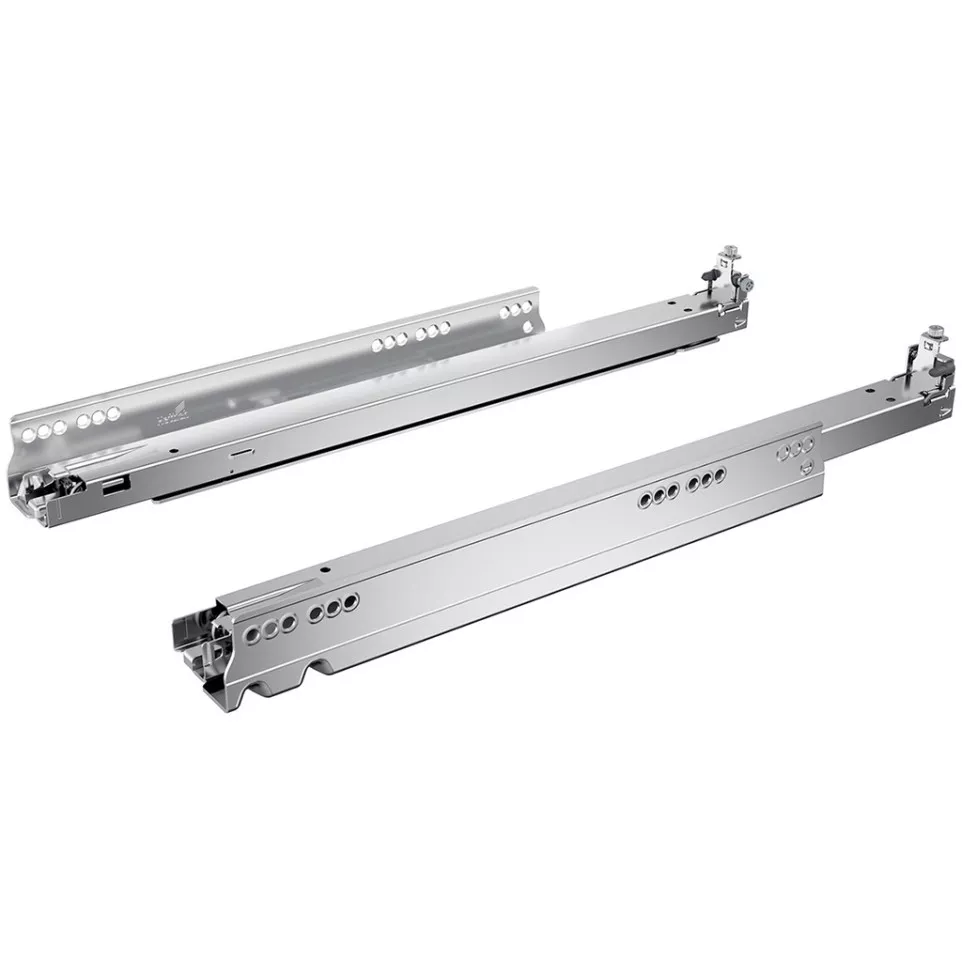

The Hettich Actro 5D full extension runner is designed for wooden drawers in furniture, providing smooth, silent operation with a high load capacity. Suitable for kitchens, offices, and living spaces requiring reliable drawer movement.
Advantages
- Full extension allows complete access to the entire drawer depth for optimized storage and retrieval.
- Integrated Silent System ensures gentle and quiet closing with every use.
- Sophisticated toolless adjustment options: height (+3 mm), side (+/-1.5 mm), tilt (+4 mm), radial (+/-1.5 mm), and depth (+/-2 mm).
- Robust load capacity of up to 40 kg per pair according to EN 15338 Level 3 certification.
- The catch must be ordered separately; installation requires attention to this detail for secure mounting.
Specifications
- Concealed runner made from galvanized steel with corrosion-resistant finish and compatible with optional Push to open Silent system.
- Conforms to EN 15338 Level 3 standards for durability in demanding furniture applications.
- Sustains up to a maximum load of 40 kg; nominal length: 550 mm; minimum cabinet body depth required: 553 mm; suitable for drawers with side profile thickness up to ≤16 mm.[3][5]
- User-friendly slide-on installation using catches enables rapid setup without tools; supports optional pull-out shelf locating catch or shelf support features.[3][5]
How it works
The Actro 5D runner installs beneath the wooden drawer, remaining concealed while supporting full extension movement. To open or close the drawer, simply pull or push as needed—the internal mechanism ensures silent action and allows precise adjustment without tools.[3][1]
