Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

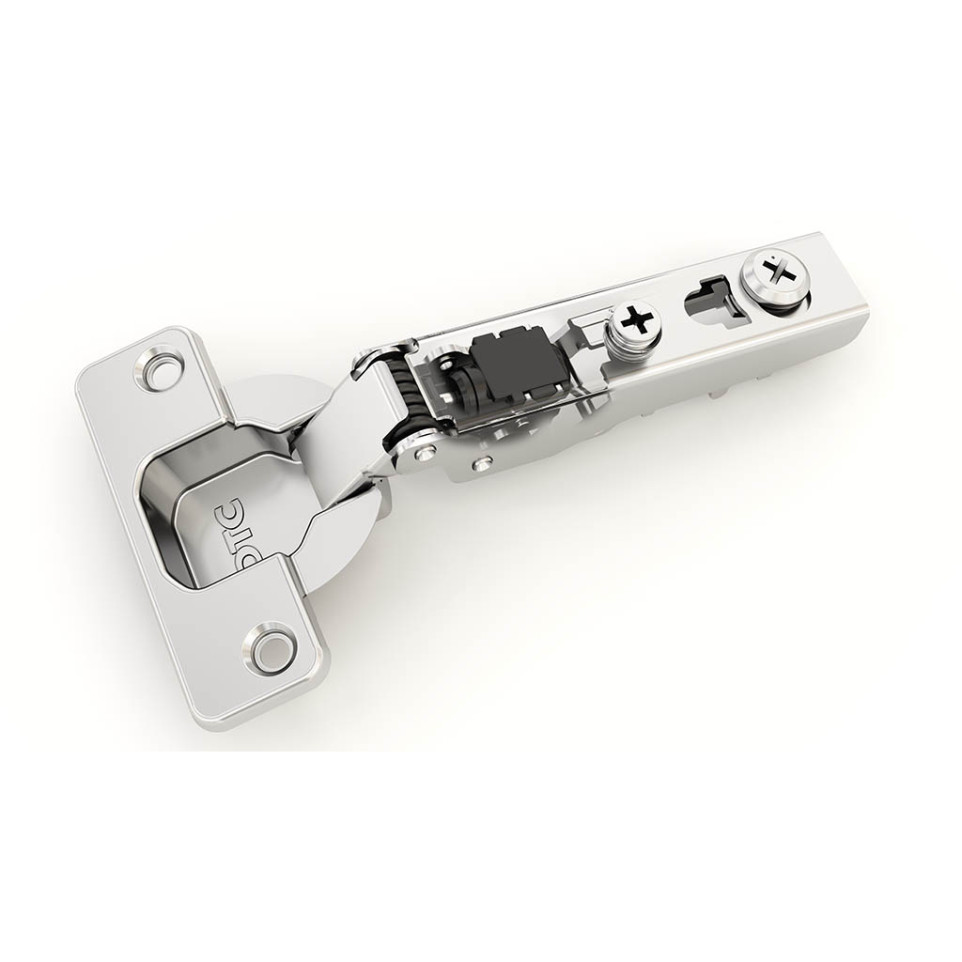

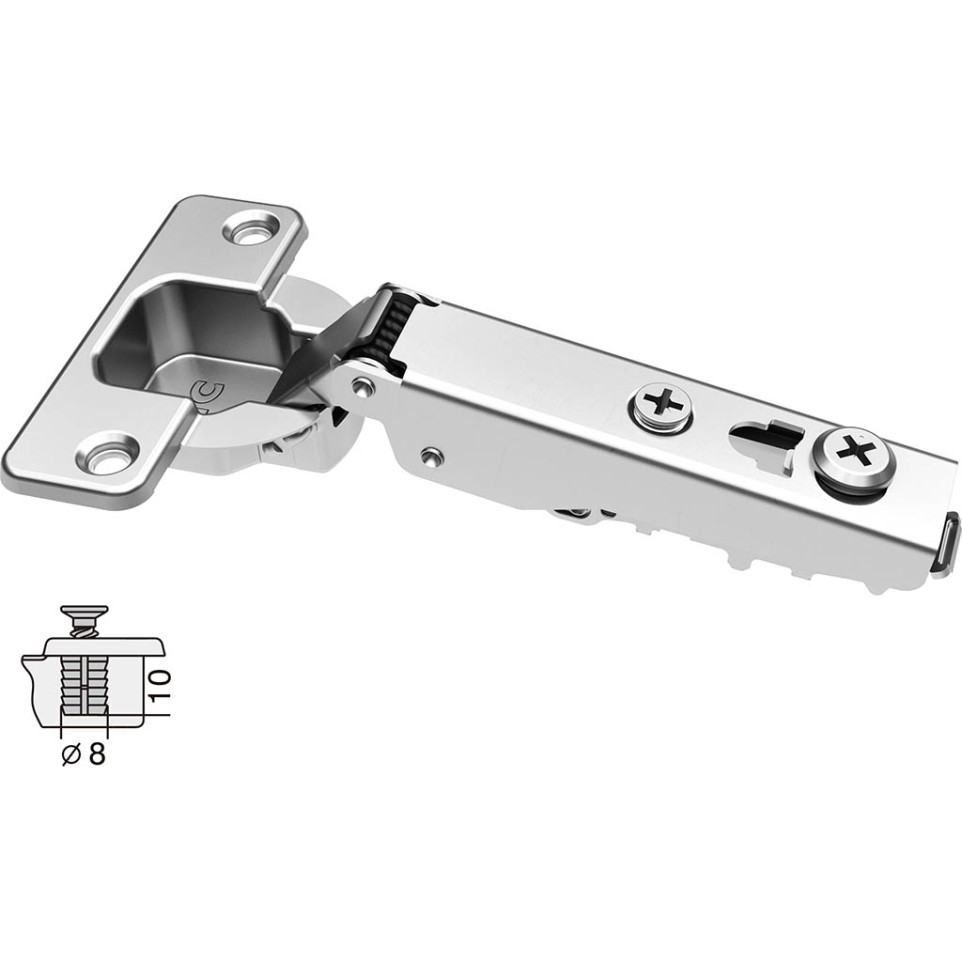

The DTC Stylish 110° Nickel Hinge with soft close and self-closing function is designed for full overlay cabinet doors. This premium hardware solution offers smooth operation and precision engineering for kitchen and furniture applications.
Specifications
- 110° opening angle for full cabinet accessibility
- Integrated soft close mechanism for silent and controlled door closing
- Self-closing function ensures doors stay shut when pushed

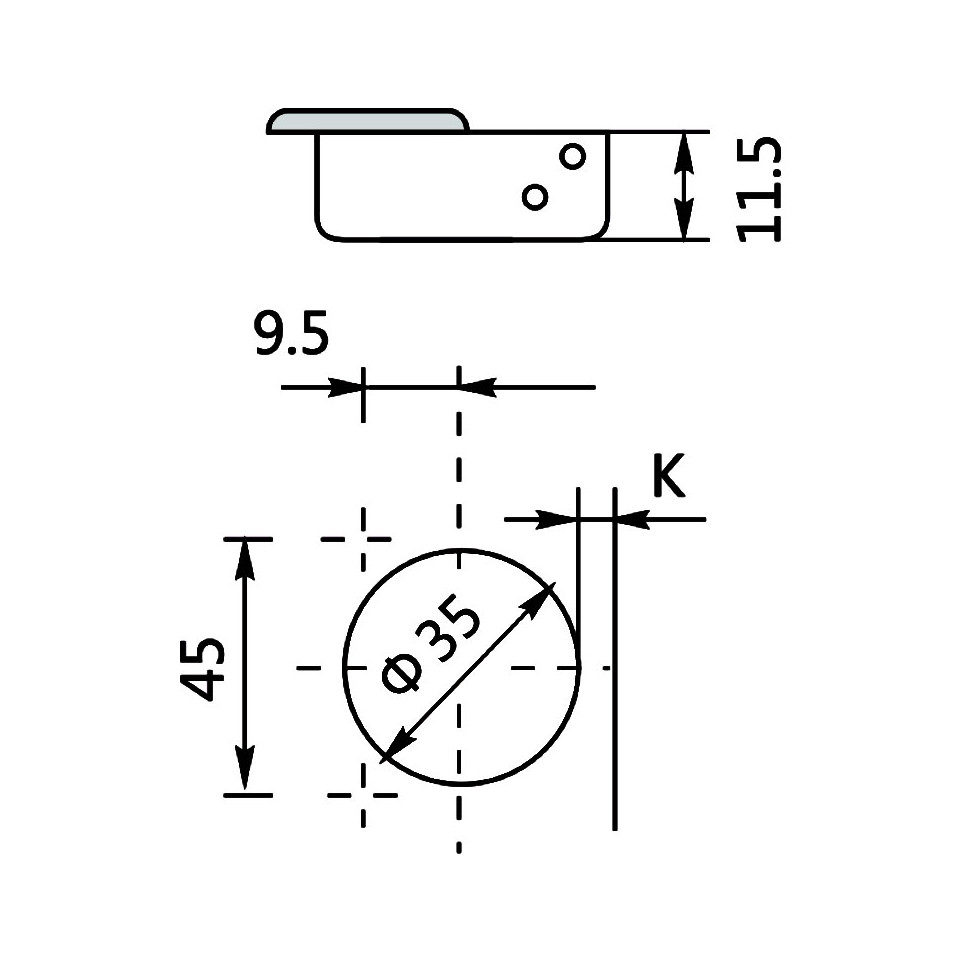

- 11.5mm hinge cup depth with 35mm diameter for secure installation
- Full overlay mounting type for a clean, modern aesthetic
- Drilling pattern of 45 x 9.5mm
- Compatible with door thickness from 16-26mm
- Nickel-plated finish for durability and style

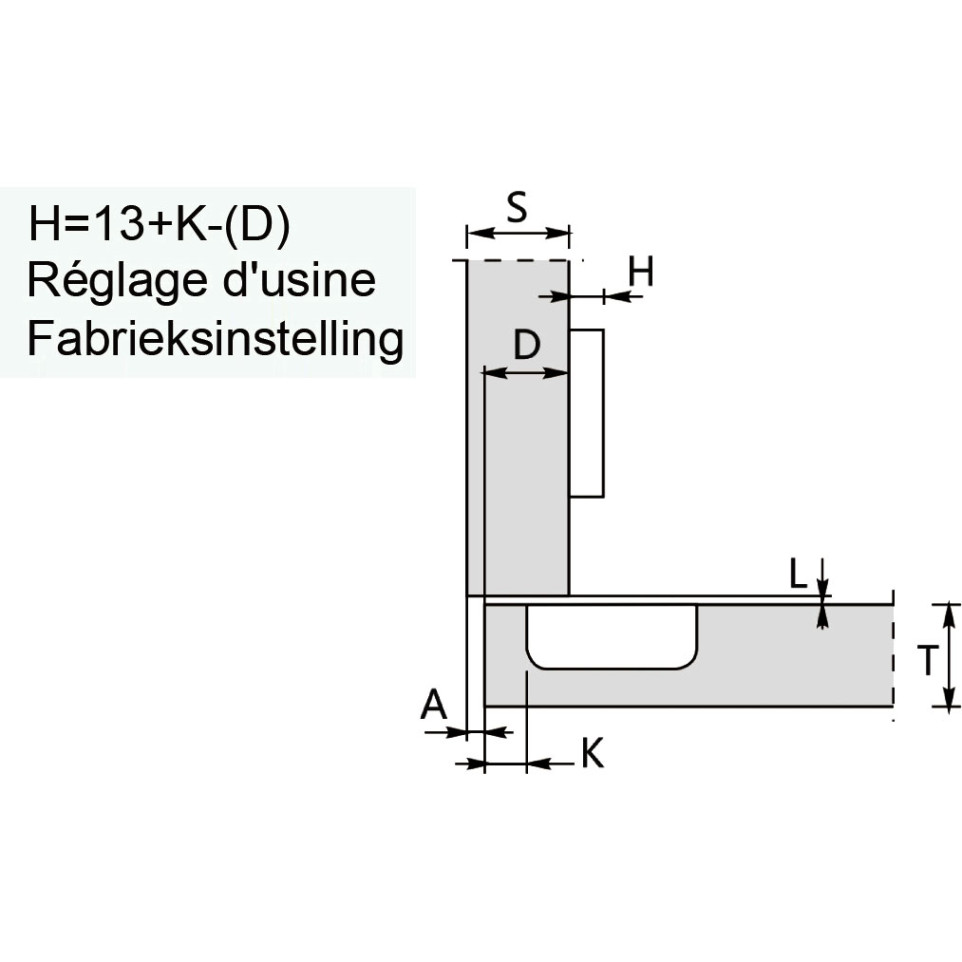

- Adjustable drilling distances on door (K): 3-6mm
Usage
Mount these hinges with screws to cabinet frames and doors. The integrated soft close mechanism prevents slamming while the self-closing function ensures doors close completely. Adjust the hinge position using the built-in adjustment mechanisms for perfect door alignment.
FAQ
-
How many hinges do I need per door? For standard cabinet doors up to 24" tall, two hinges are typically sufficient. For taller or heavier doors, use three or more hinges spaced evenly for proper support.
-
Are these hinges adjustable? Yes, these hinges feature multi-dimensional adjustment capabilities, allowing you to fine-tune the door position for perfect alignment.
-
What tools are needed for installation? You'll need a drill with a 35mm Forstner bit for the hinge cup, a screwdriver, measuring tape, and pencil for marking drilling points.
-
Can these hinges be used for corner cabinets? Yes, these 110° hinges work well for standard corner cabinets, though specialized corner hinges may be preferred for certain applications.
-
How do I maintain these hinges? Simply wipe clean with a dry cloth periodically. For smooth operation, apply a small amount of silicone-based lubricant to the moving parts if necessary.
