Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product
Stylish 110° nickel-plated screw-on hinge with integrated damping and automatic closing for semi-overlay doors. Ideal for cabinets requiring smooth, quiet operation and reliable closing in kitchens, bathrooms, or offices.
Specifications
- Nickel-plated steel construction for corrosion resistance and durability
- Integrated soft-close mechanism and automatic door return
- Opening angle: 110°
- Cup depth: 11.5 mm
- Cup diameter: 35 mm
- Designed for semi-overlay mounting; screw-on installation
- Compatible with door thicknesses: 16–26 mm

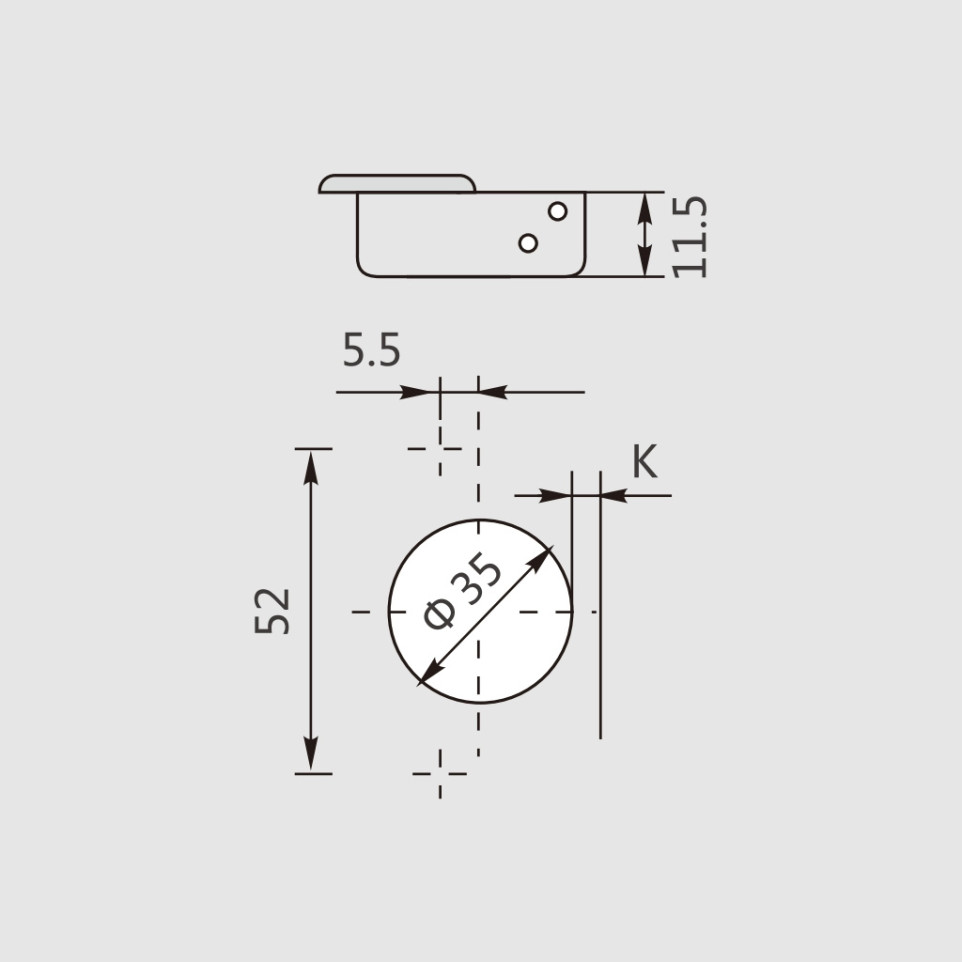

- Drilling pattern: 52 × 5.5 mm

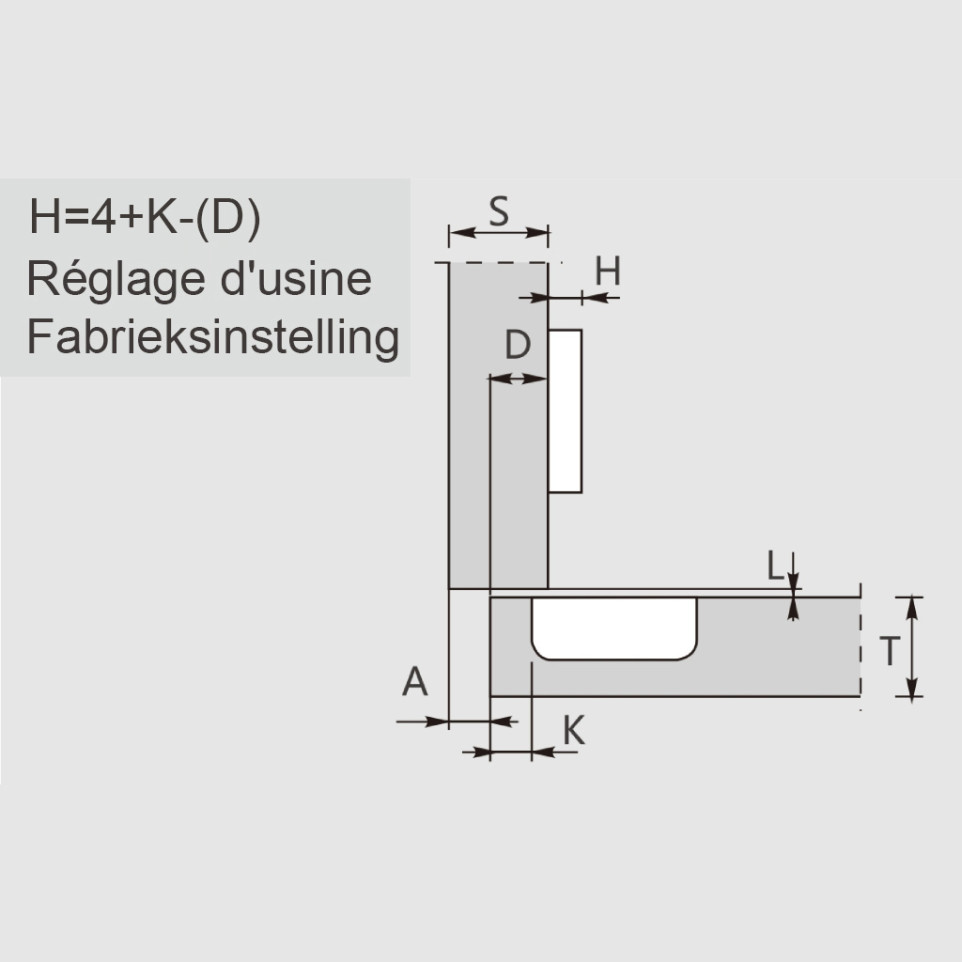

- Adjustable drilling distances on the door (K): 3–6 mm
Usage
Mount the hinge by drilling a 35 mm diameter hole with 11.5 mm depth in the door, following the provided drilling pattern. Fasten using screws. The hinge ensures gentle closing and automatic door positioning, suitable for semi-overlay cabinet applications.
FAQ
-
What door thickness does this hinge support?
Compatible with doors between 16 and 26 mm thick. -
Does the hinge have a soft-close feature?
Yes, it includes an integrated soft-close damper for controlled, quiet closing. -
What is the maximum opening angle?
The hinge opens up to 110 degrees for wide access. -
Is installation done with screws or clips?
It is a screw-on hinge requiring standard wood screws for mounting. -
What drilling measurements are required for installation?
Drill a 35 mm diameter hole with 11.5 mm depth and follow a 52 x 5.5 mm mounting pattern; door drilling distance K: 3–6 mm.
