Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

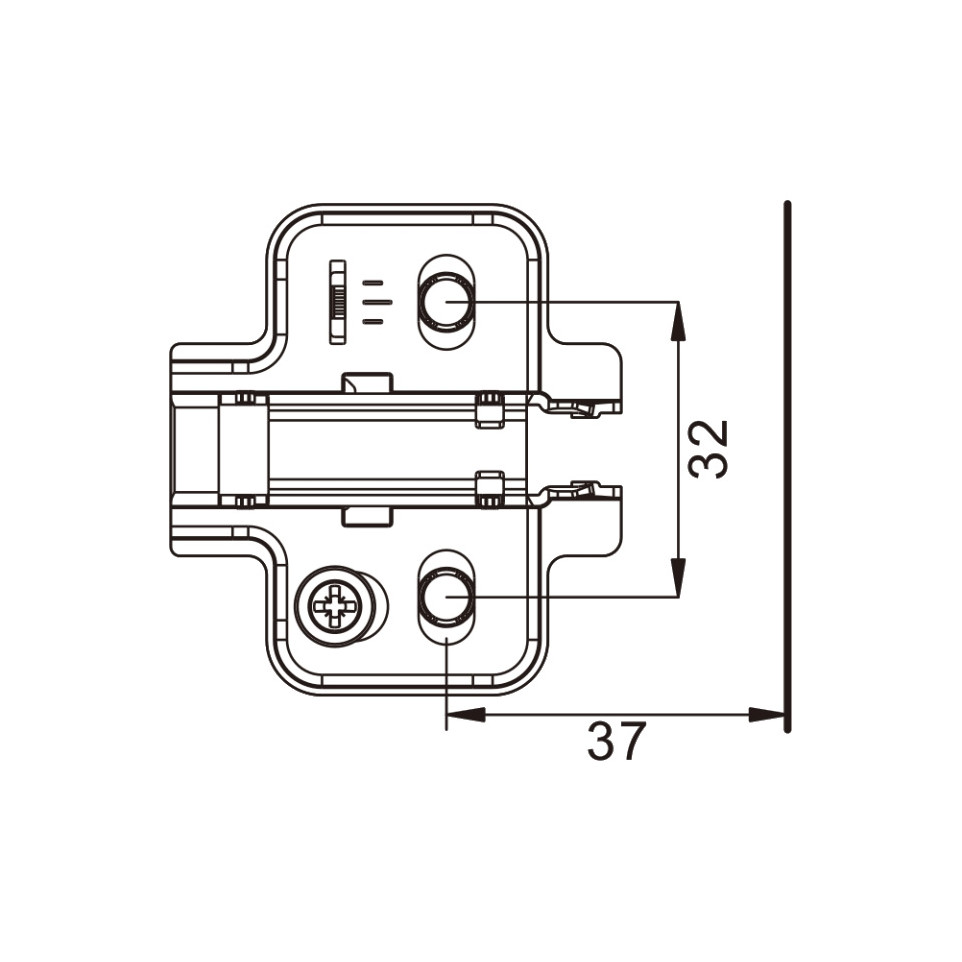

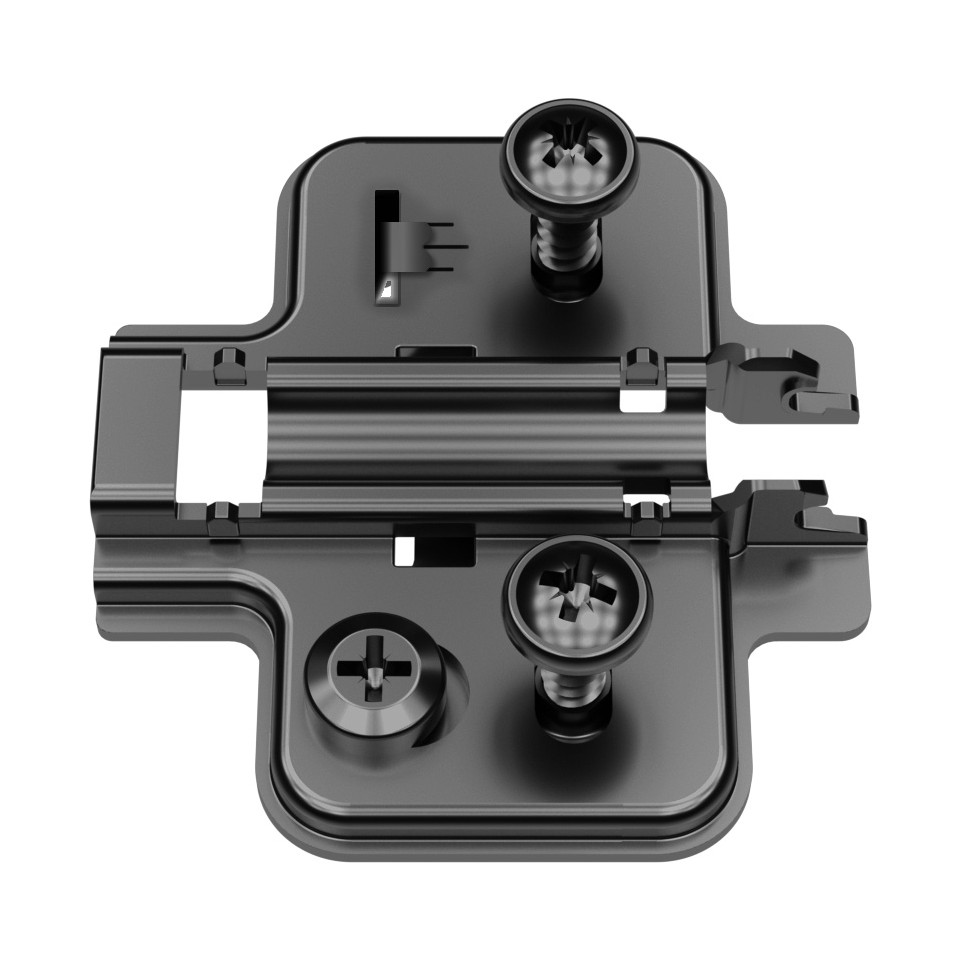

Cruciform Pivot-Star mounting plate in black titanium, supplied with screws for particleboard panels requiring 2.5mm pre-drilling, featuring direct height adjustment and a 4mm distance design per piece; ideal for modern cabinetry and hinge installations.
Specifications
- Sturdy construction with black titanium finish for enhanced corrosion resistance and contemporary appearance
- Designed for use with particleboard panels, includes appropriate screws for quick and reliable installation
- Allows precise direct height adjustment during assembly, with a 4mm mounting plate offset for flexible cabinet alignment
- Supports cam and direct adjustment for easy setup and after-install tuning
- Compatible with Pivot-Star hinge systems and standard 2.5mm pre-drilled panel holes
Usage

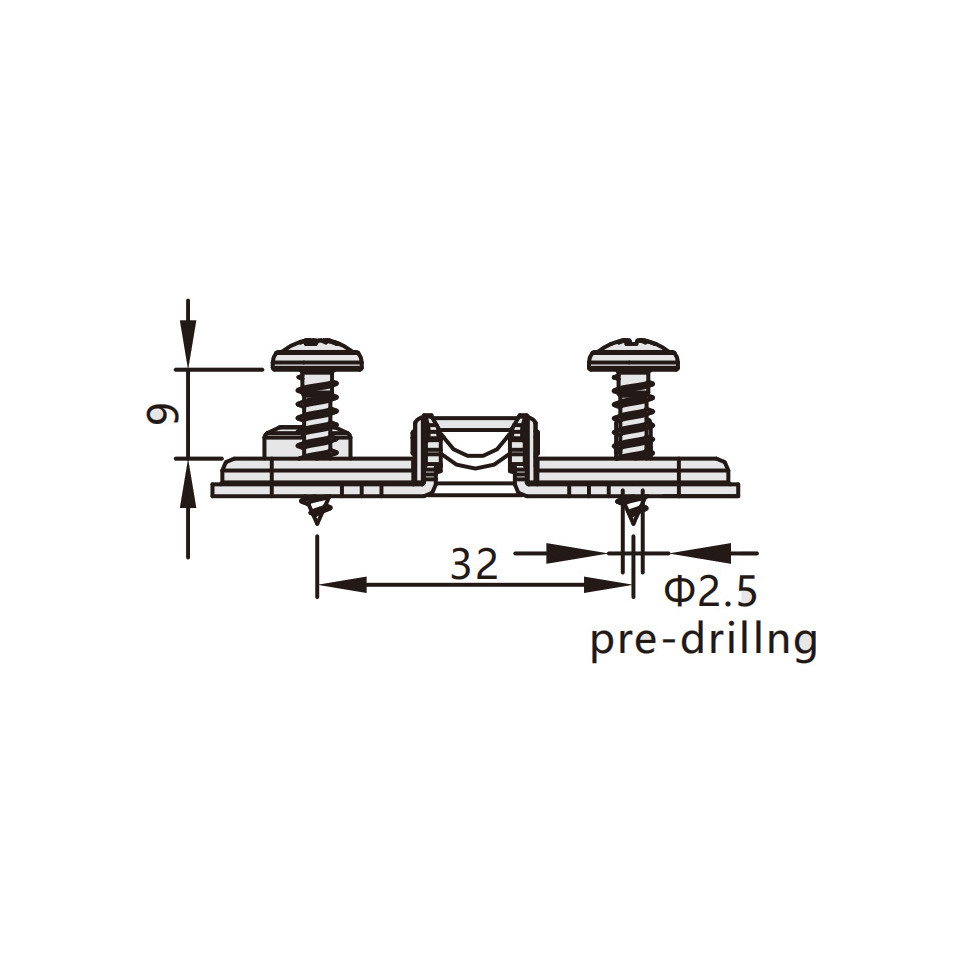

Align the mounting plate at the desired location on your particleboard panel, pre-drill using a 2.5mm bit, and secure with the included screws. The direct adjustment system enables fine-tuning of hinge position and cabinet alignment, ideal for precise door mounting in kitchens, wardrobes, or commercial projects.
FAQ
-
Is this plate suitable for all types of panels?
It is specifically engineered for particleboard panels and requires 2.5mm pre-drilled holes for secure fixing. -
What adjustment features does it provide?
The mounting plate includes direct height adjustment, allowing precise alignment of doors post-installation. -
Does it come with all necessary installation hardware?
Yes, screws adapted for particleboard installation are included in the package. -
What color and finish does the plate have?
It features a black titanium finish, designed for modern aesthetics and increased durability. -
Is it compatible with standard hinge systems?
The plate is designed for use with Pivot-Star hinge systems and similar stud hinge applications.
