Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

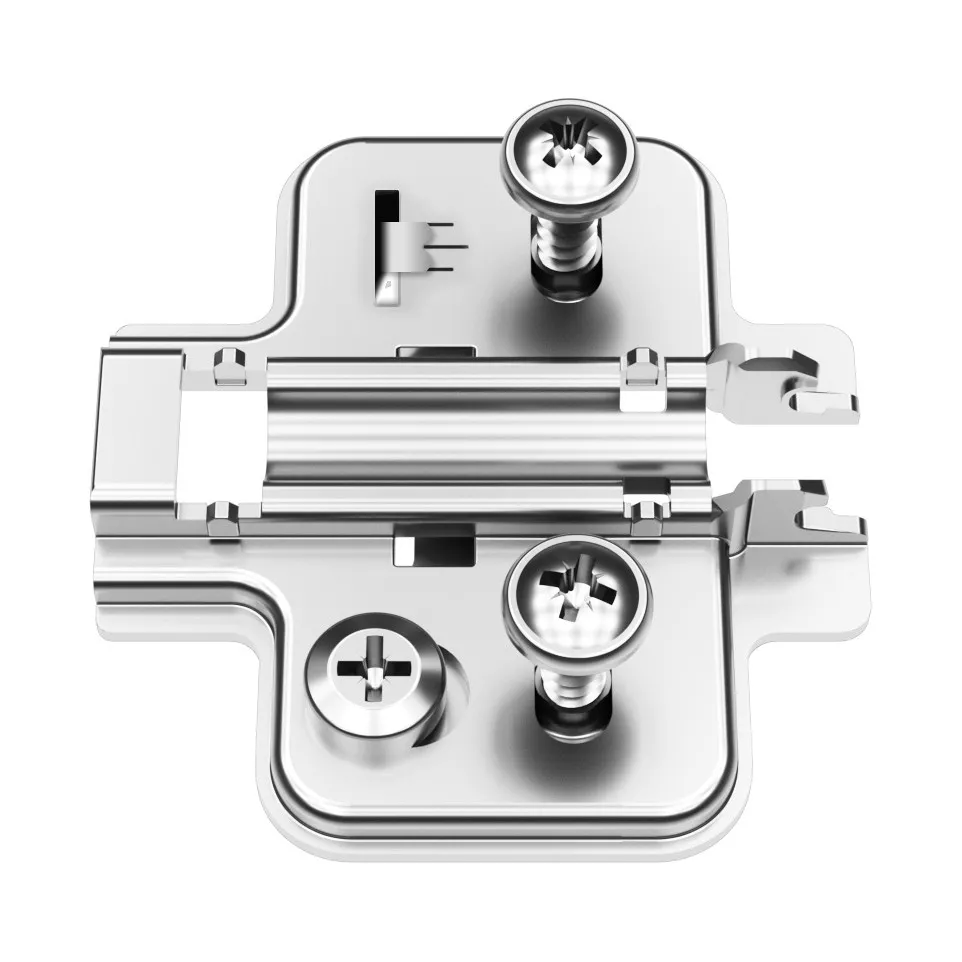

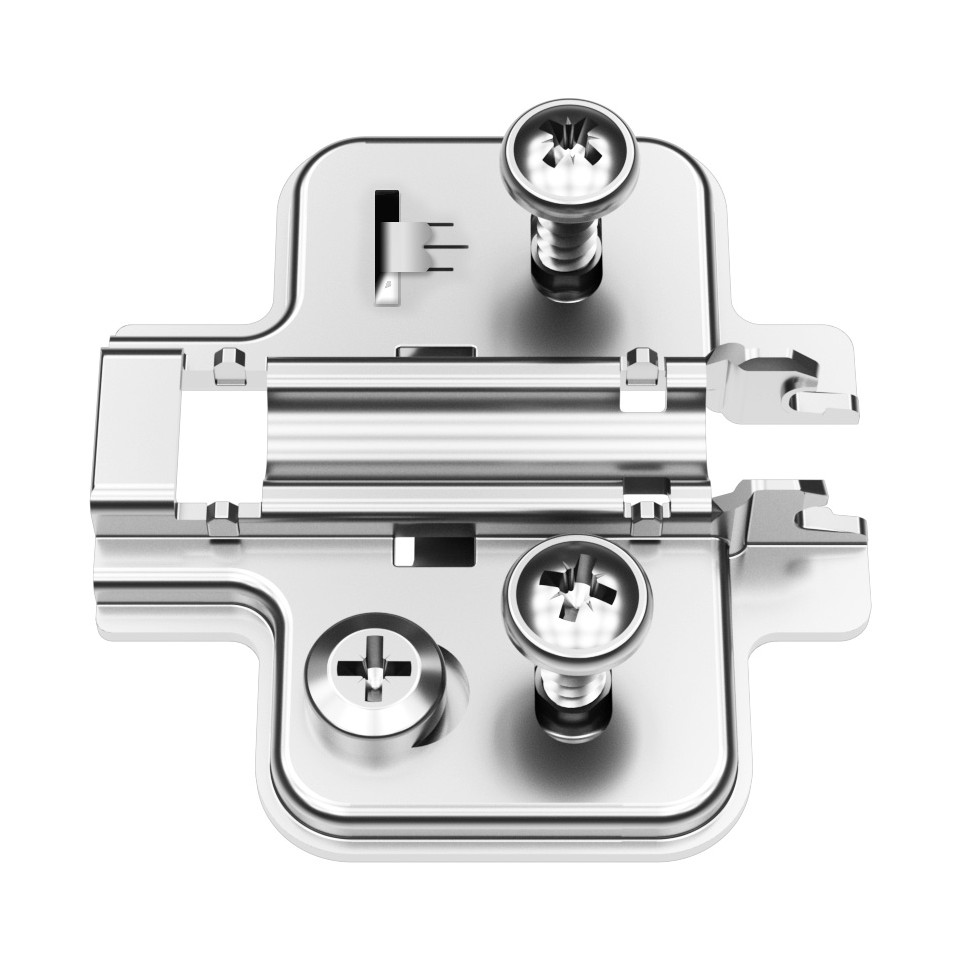

Cruciform Pivot-Star nickel-plated mounting plate designed for stud hinge and accessory applications. Supplied with special screws and expansion sleeves for Ø5 x 9mm drilling, it features direct height adjustment and a 0mm distance configuration for precise installations.
Specifications
- Nickel-plated steel construction for enhanced durability and corrosion resistance
- Equipped with specialty screws and expansion sleeves for secure fitting in 5 x 9mm pre-drilled holes
- Direct height adjustment without additional tools
- Cruciform profile for compatibility with standard stud hinges
- 0mm distance setting offers flush mounting with door and frame
- Professional-grade component for cabinetry and furniture systems
Usage
This mounting plate serves as a robust connection point for Pivot-Star hinges, allowing users to install stud hinges quickly and with precision on panels pre-drilled at Ø5 x 9mm. The integrated height regulation function permits effortless vertical alignment adjustments after installation, supporting both initial assembly and future door corrections in cabinetry and furnishing projects.
FAQ
-
What hinges is this mounting plate compatible with? This plate is designed for use with Pivot-Star stud hinges and compatible accessories within the same product family.
-
How is direct height adjustment achieved? Direct height adjustment is accomplished using an accessible adjustment mechanism integrated into the plate, enabling easy vertical fine-tuning of the attached hinge without removing the fixture.
-
What type of screws and sleeves are included? The product includes special screws and expansion sleeves, specifically sized for Ø5 x 9mm holes to ensure a secure mechanical bond with the substrate.
-
Is this mounting plate suitable for heavy cabinet doors? The nickel-plated steel construction and robust mounting method provide reliable performance for standard and moderately heavy doors in furniture and cabinetry applications.
-
Can this plate be reused after disassembly? As long as the mounting hardware remains intact and undamaged, the plate can be reused for future installations or adjustments.
