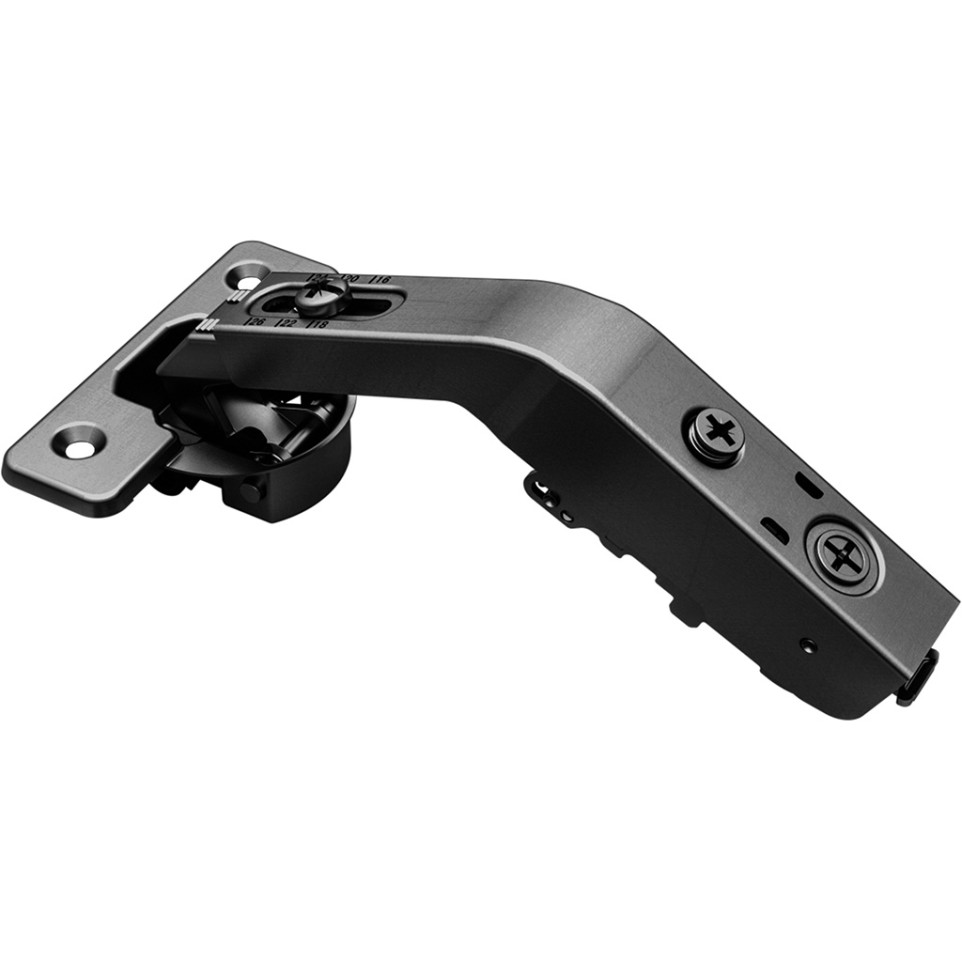

The Pivot-Star 55° screw-on hinge in black titanium is designed for corner cabinet bi-fold doors, enabling precise alignment and smooth automatic closing without integrated damping. Ideal for modern kitchens or storage units, this stud hinge offers a subtle aesthetic while optimizing space in angular cabinet layouts.
Specifications

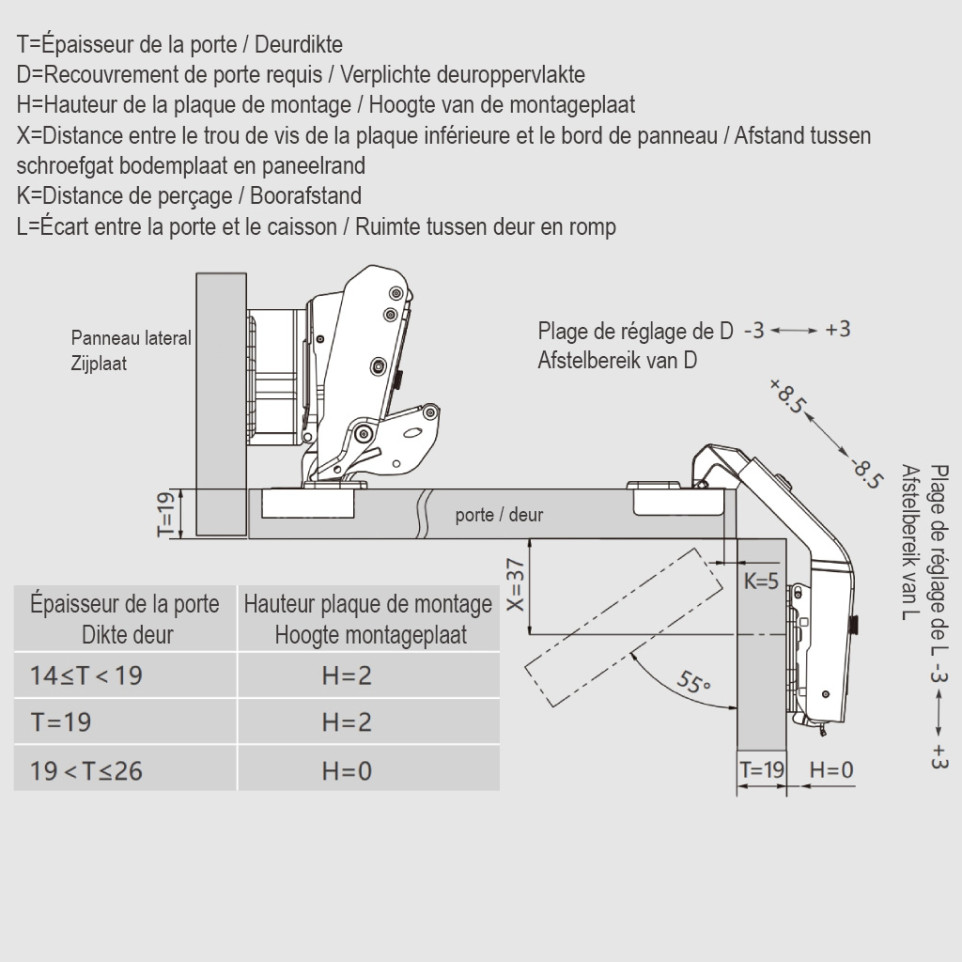

- 55° opening angle for controlled bi-fold movement
- Screw-on application for secure, stable mounting
- Overlay-type hardware for straightforward installation
- Black titanium finish for a sleek, corrosion-resistant look

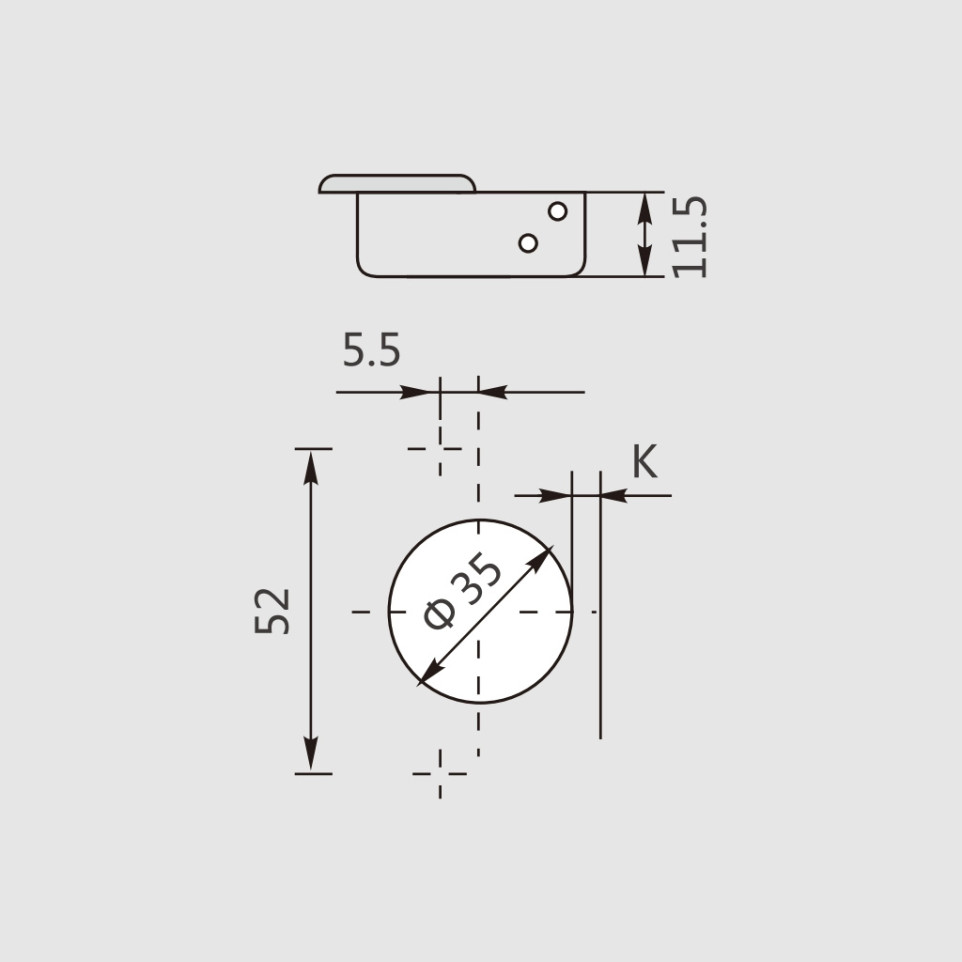

- Hinge cup depth: 11.5 mm
- Hinge cup diameter: 35 mm
- Drilling pattern: 52 x 5.5 mm
- Supports door thickness: 14–26 mm
- Adjustable drilling distance on the door (K): 3–7 mm
- No integrated soft-closing; features automatic closure
Usage
Mount the hinge using screws on the designated bores of a bi-fold corner door. Its 55° opening angle and automatic closing mechanism enable efficient and quiet door operation, maximizing access in corner cabinet configurations without the need for extra soft-close hardware.
FAQ
-
What is the opening angle of this hinge?
- The hinge provides a 55° opening, specifically tailored for corner cabinet bi-fold doors.
-
Does the hinge have an integrated soft-close feature?
- No, it does not include soft-close damping, but it offers automatic closing.
-
What dimensions does the hinge cup support?
- It requires a 35 mm diameter and 11.5 mm depth cup drilled into the door.
-
What is the supported door thickness?
- The hinge is compatible with doors ranging from 14 to 26 mm thick.
-
How is the hinge installed?
- The hinge is screw-mounted using a 52 x 5.5 mm drilling pattern and allows drilling distances (K) of 3–7 mm.
