Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

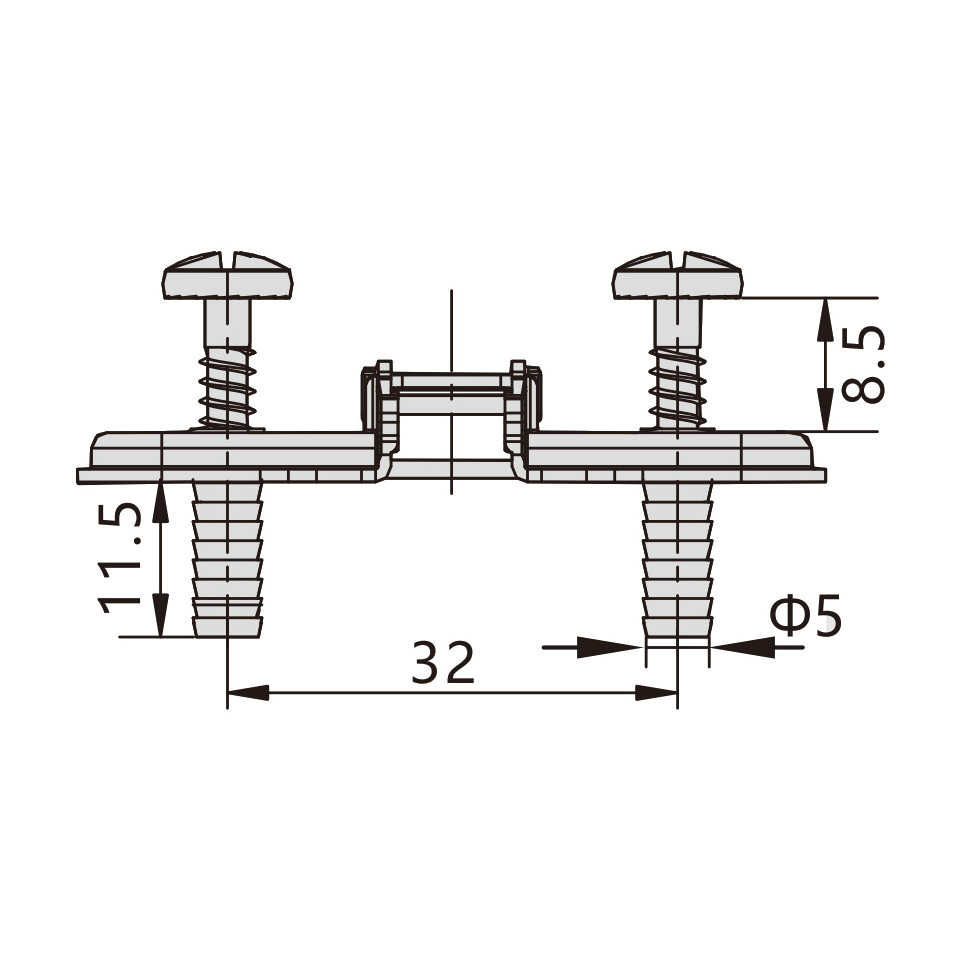

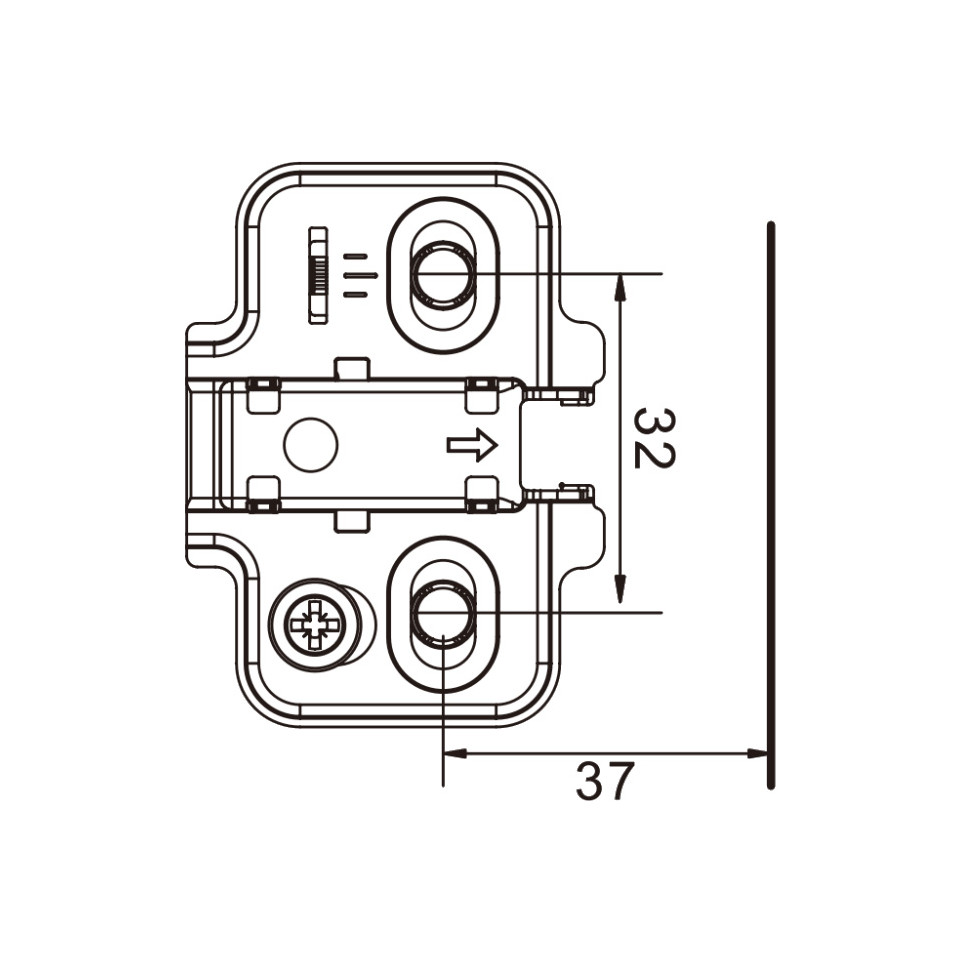

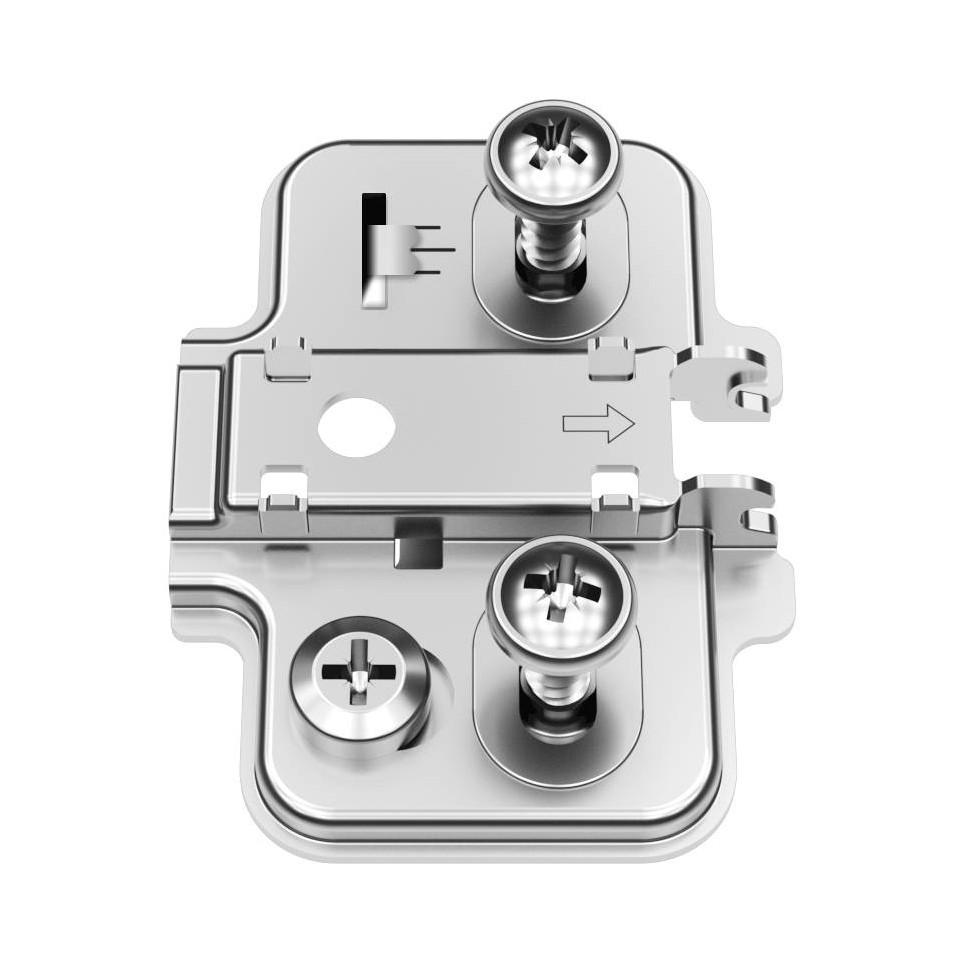

Nickel-plated cruciform mounting plate designed for stylish stud hinges, equipped with special screws and expanding sleeves for Ø5 x 12mm drillings. Features direct height adjustment with zero offset, suitable for precise cabinetry installations.
Specifications
- Nickel-plated steel construction for enhanced corrosion resistance
- Includes special screws and expanding sleeves for secure fixing
- Direct vertical adjustment for optimized alignment
- Designed for 0mm spacing
- Compatible with Ø5 x 12mm drilling diameter
Usage
Install the mounting plate onto the cabinet or furniture panel using the provided special screws and expansion sleeves in Ø5 x 12mm drill holes. Adjust the height directly to achieve precise alignment of the hinge and door, ensuring a stable and secure connection with zero offset.
FAQ
-
What is the material of the mounting plate?
The mounting plate is made of nickel-plated steel for durability and resistance to corrosion. -
What type of screws and fixing method are included?
It comes with special screws and expanding sleeves designed for Ø5 x 12mm drill holes, providing a secure and efficient installation. -
How does the height adjustment work?
The plate offers direct vertical adjustment, allowing you to fine-tune hinge positioning for optimal door alignment. -
What applications is this mounting plate suitable for?
It is used in cabinets or furniture installations that require stud hinges and precise adjustment with zero offset. -
Is the mounting plate compatible with all hinge types?
It is specifically intended for stud hinges and accessories compatible with Ø5 x 12mm fixing systems.
