Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

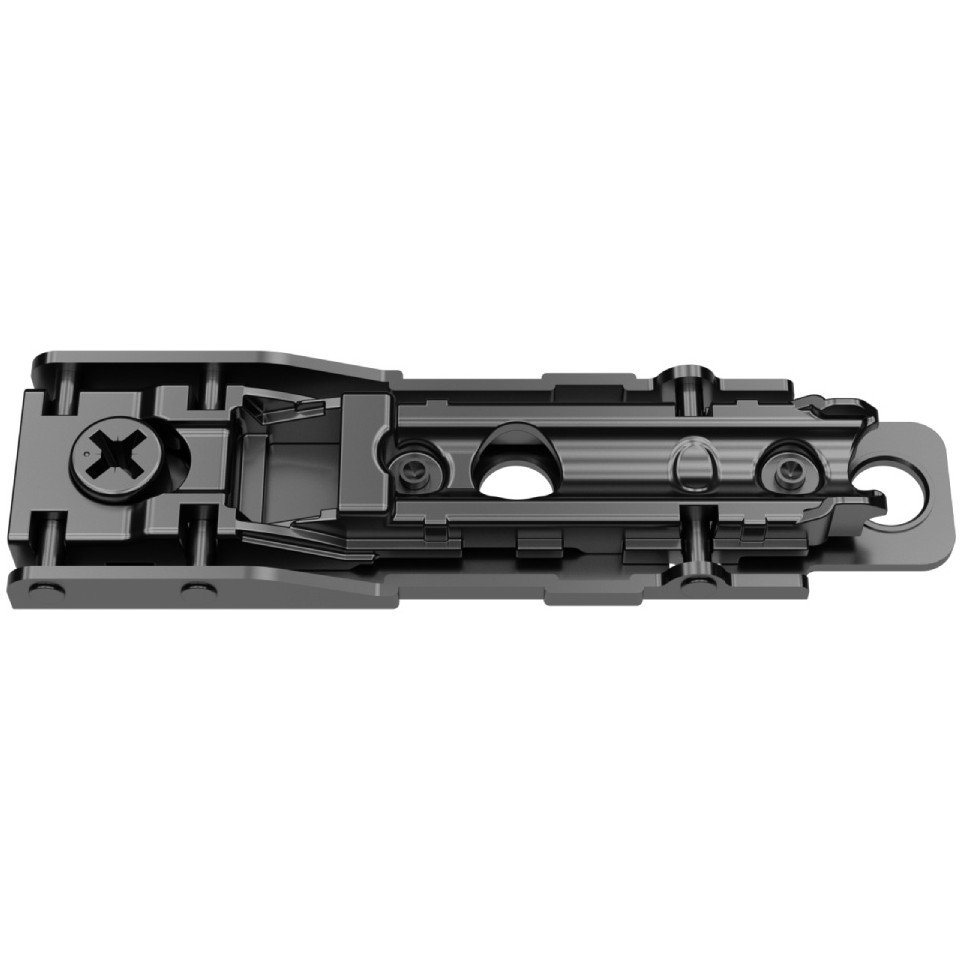

The Pivot-Star linear mounting plate in black titanium features Euro screws for Ø5 x 8mm boreholes and enables direct height adjustment, standard 2mm distance. Designed for stud hinges and accessories, it is suitable for precise furniture and cabinetry assembly.
Specifications
- Constructed from durable metal with a black titanium finish
- Equipped with pre-mounted Euro screws for efficient installation
- Provides a direct height adjustment range of +2mm to -2mm
- Mounting plate height: 2mm
- Compatible with a range of Pivot-Star and C81 series stud hinges
- Supports overlay, half overlay, and inset door mounting applications
- Maintains high strength and reliable long-term performance
Usage
Mount onto furniture frames using a Ø5 x 8mm bore; pre-mounted Euro screws ensure a secure, tool-friendly attachment. Directly adjust plate height to align and level doors precisely. Compatible with Pivot-Star hinges for cabinetry requiring quick, fine-tuned door positioning.
FAQ
- What door types are compatible with this mounting plate?
Compatible with full overlay, half overlay, and inset cabinet doors when paired with suitable Pivot-Star hinges. - How is height adjustment achieved?
Fine adjustments of +2mm to -2mm are made via a direct height mechanism, allowing precise alignment after installation. - What tools are required for installation?
A standard driver is needed for the Euro screws; mounting requires Ø5 x 8mm pre-bored holes in the cabinet frame. - Is the mounting plate suitable for soft-close hinges?
Yes, it is compatible with Pivot-Star series hinges, including models with adjustable soft-close functionality. - Can this plate be used for new installations and retrofits?
Suitable for both new cabinetry and replacement of existing mounting plates, provided the borehole and hinge compatibility match.
