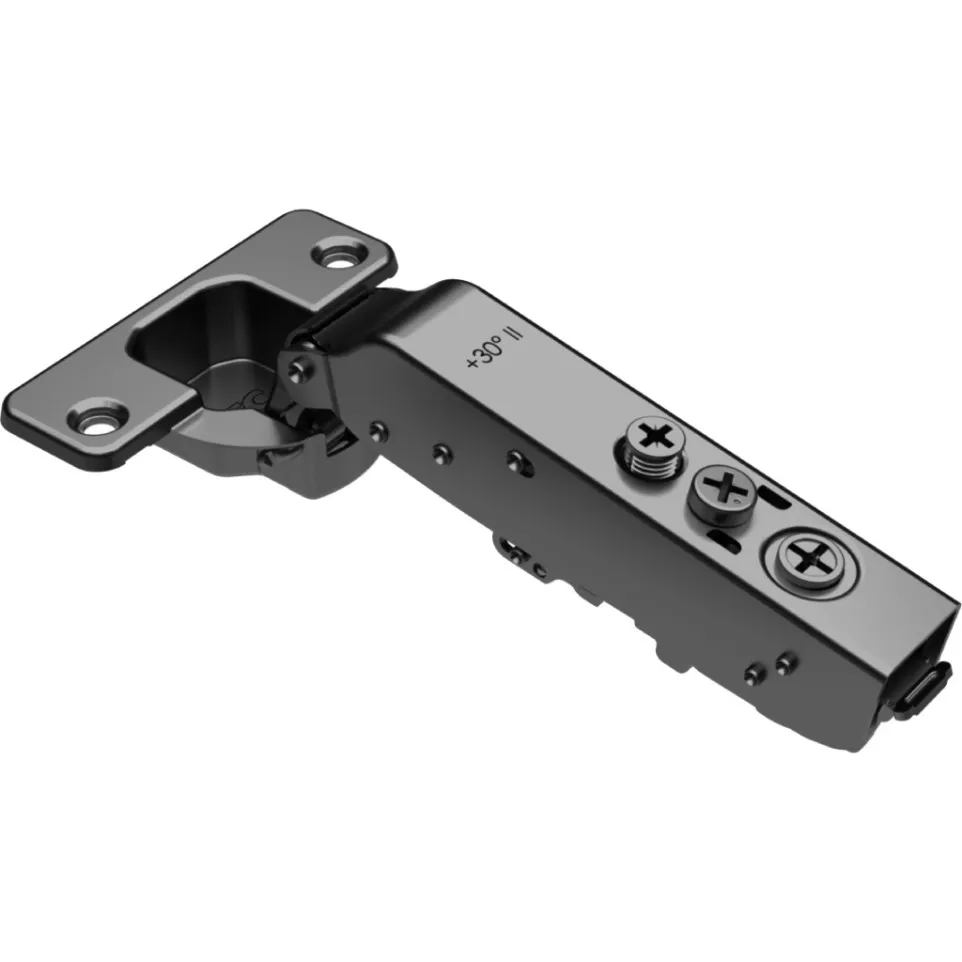

The 30° Pivot-Star 110° black titanium screw-on stud hinge provides smooth, soft-close and automatic closing action for overlay doors. Ideal for cabinetry and furniture applications, it combines reliable movement with a discreet, modern finish.
Designed for overlay mounting on cabinet doors, this hinge is installed by screwing into pre-drilled holes. With built-in soft-close and auto-close features, it ensures controlled, silent door movement and reliable closure after each use.
What is the maximum opening angle of this hinge?
The hinge opens to a maximum of 110°, allowing wide access to cabinet interiors.
Does this product include a soft-close feature?
Yes, it features integrated soft-close damping for quiet, gentle door closure.
What door thickness does it support?
It is suitable for doors with a thickness of 16 to 26 mm.
How is the hinge installed?

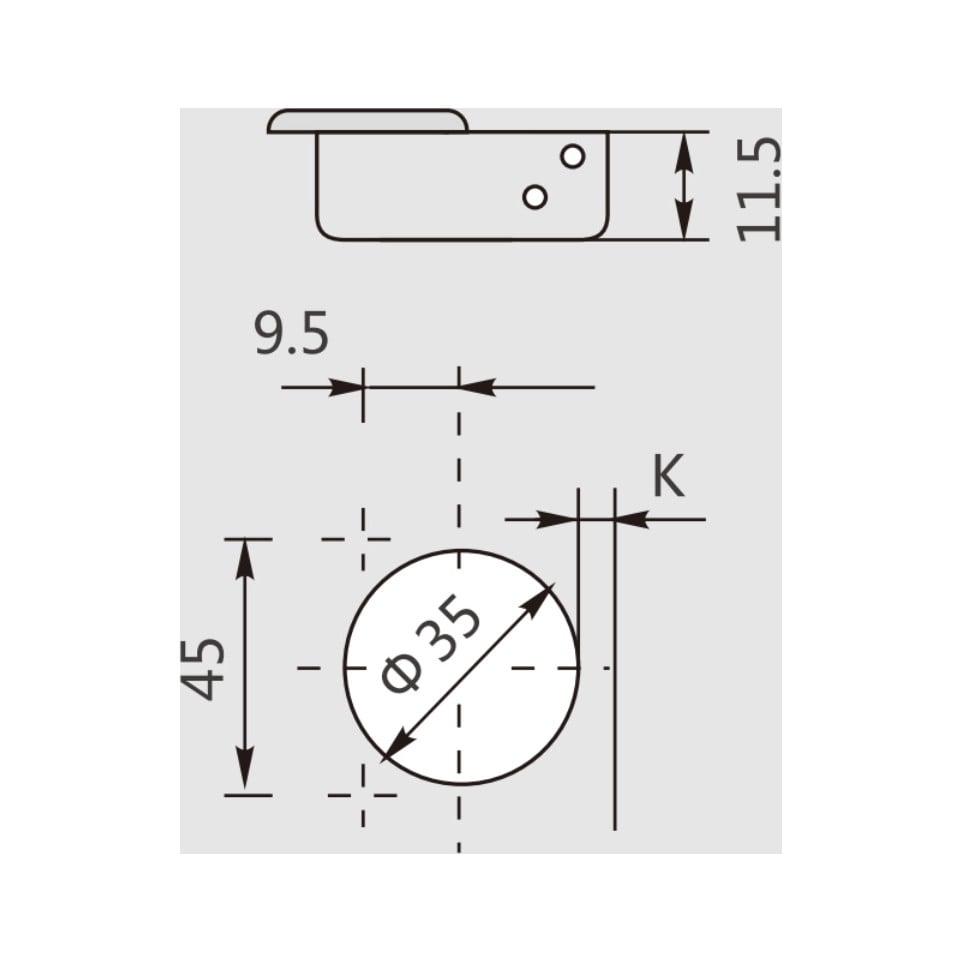

The hinge is mounted using screws into a drilling pattern of 45 x 9.5 mm.
Is this hinge suitable for overlay door applications?
Yes, it is specifically designed for full overlay cabinet and furniture doors.
