Pivot-Star 95 Degree Nickel-Plated Screw-On Hinge with Soft-Close and Self-Closing for Overlay Door up to 35m

Product

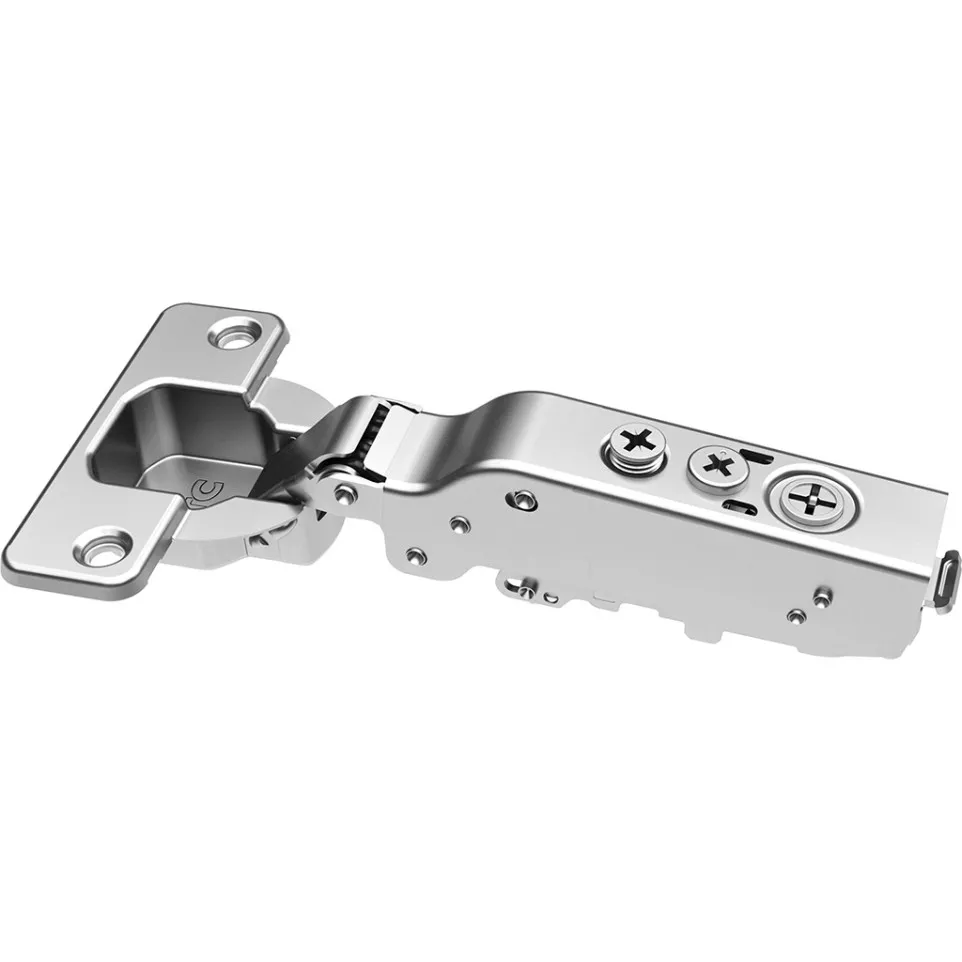

The Charnière Pivot-Star 95° Screw-On Hinge is a nickel-plated, full overlay hinge with soft close and automatic closing, designed for overlay doors with thickness from 19 to 35 mm. Ideal for kitchen, bathroom, or storage cabinet installations requiring controlled, quiet operation.

Specifications

• Integrated soft-close damper ensures smooth, silent closing
• Opening angle: 95° for enhanced access to the cabinet interior
• Screw-on mounting design for reliable installation

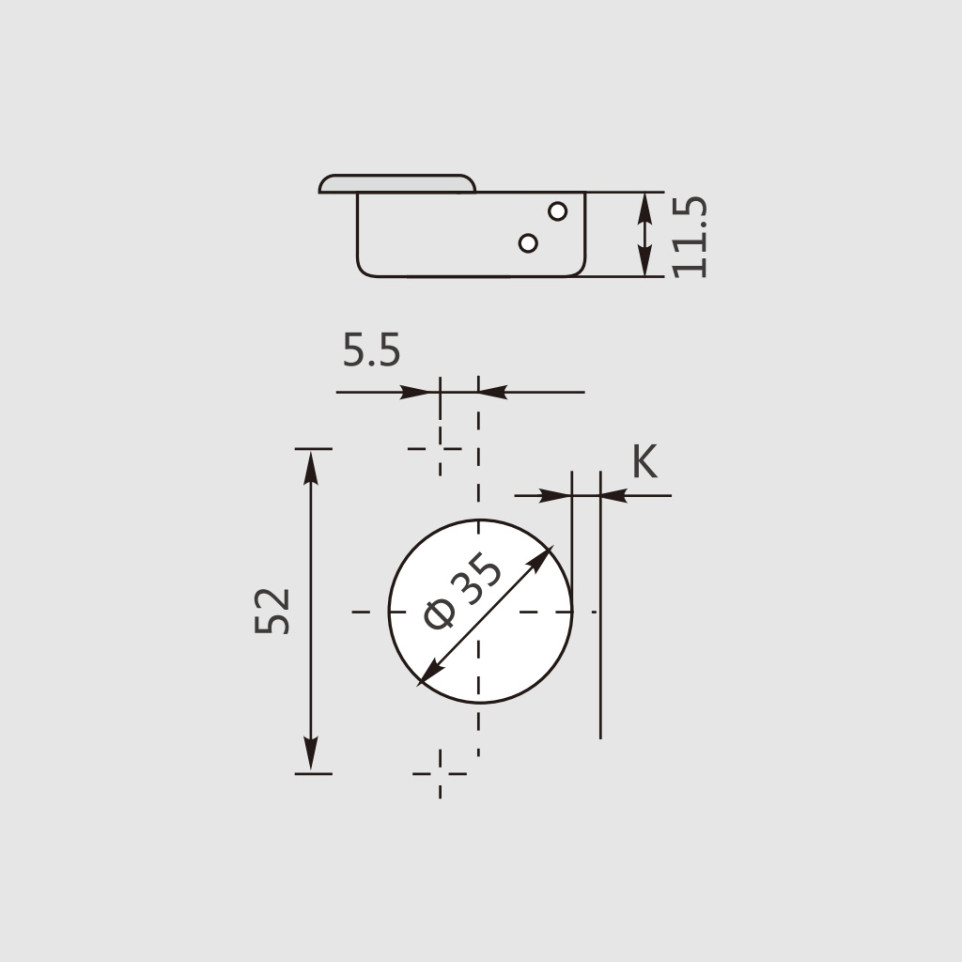

• Cup depth: 11.5 mm; cup diameter: 35 mm
• Overlay hinge type with 52 x 5.5 mm hole pattern
• Suitable for door thickness: 19–35 mm

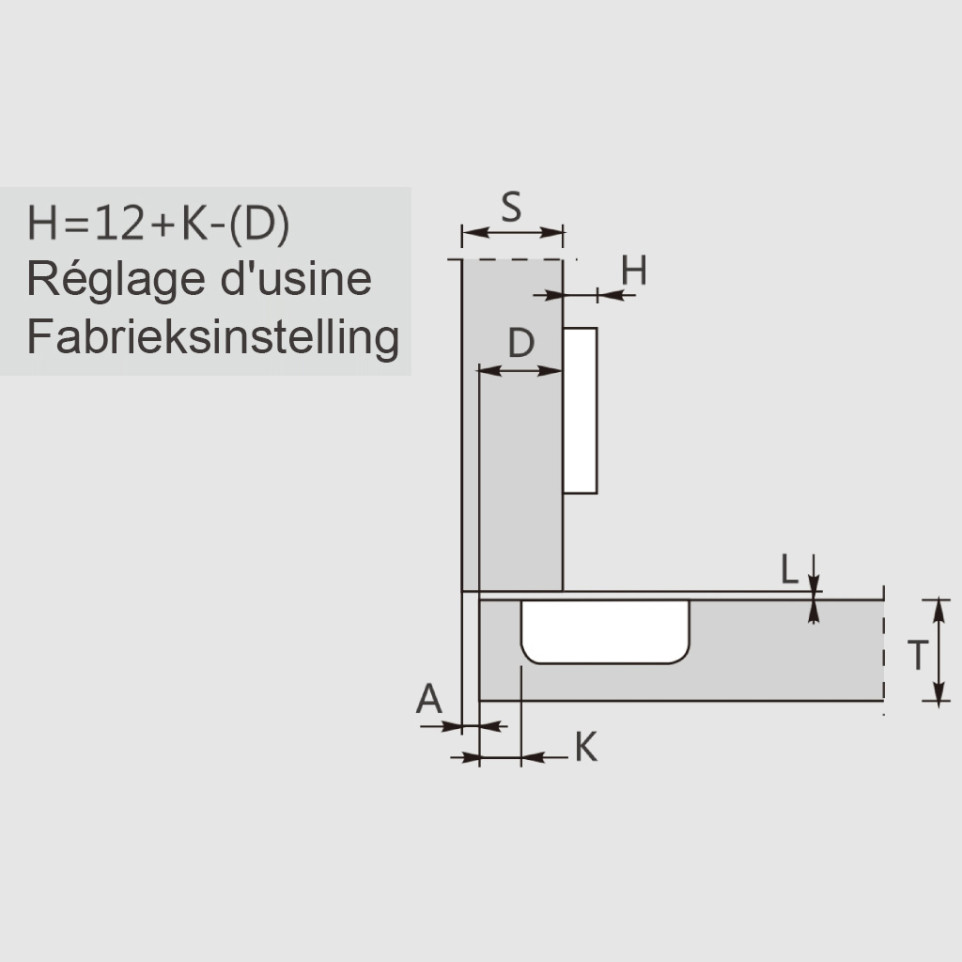

• Adjustable drilling distances on the door (K): 3–6 mm
• Nickel-plated for corrosion resistance and durability

Usage

Mount the hinge using screws on the door and cabinet. The integrated damper softly closes the door, while the automatic closing feature ensures secure and firm closure. The hinge suits overlay doors in various cabinetry applications, allowing for easy access with a 95° opening.

FAQ

1. What door thickness can this hinge accommodate?
   The hinge supports overlay doors from 19 to 35 mm thick.

2. Is it suitable for doors with full overlay configuration?
   Yes, it is designed specifically for overlay applications.

3. Does this hinge feature soft closing?
   It is equipped with an integrated damper for soft and quiet closing.

4. Can the hinge be installed with screws?
   Yes, it is a screw-on model for secure and straightforward installation.

5. What is the required cup drilling size?
   The hinge requires a 35 mm diameter and 11.5 mm depth cup.
