High-performance Pivot-Star hinge delivers a 110° opening angle and is designed for concealed cabinet doors. Features soft-close damping, automatic closing, and fits doors 16–26 mm thick, making it suitable for modern residential and commercial cabinetry.

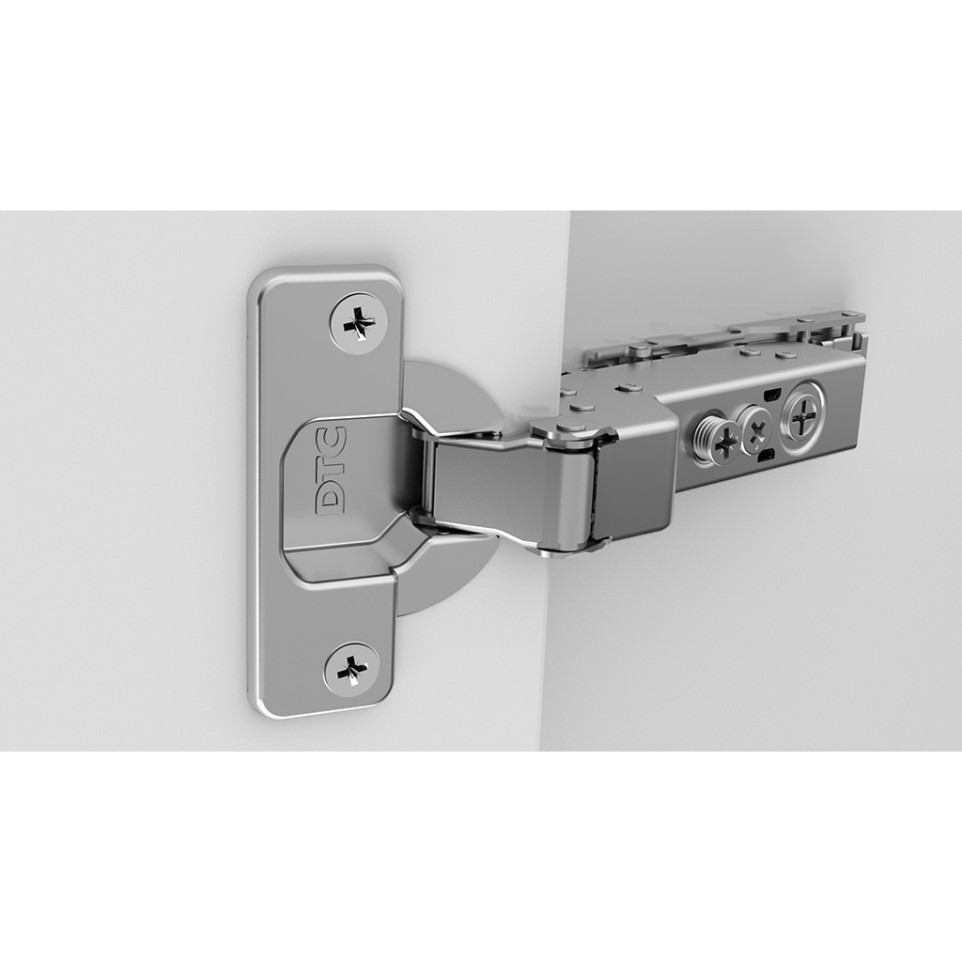

Install the hinge using expansion dowels for a strong, tool-free fit. Attach the mechanism to the door and the mounting plate to the cabinet side, then snap together. The integrated damper provides smooth and silent closure, with automatic closing for user convenience in kitchens, offices, or utility spaces.
What is the maximum opening angle of this hinge?
The hinge provides a 110° opening angle for wide cabinet access.
Is soft-closing integrated, or does it require a separate mechanism?
Soft-closing is fully integrated in the hinge, providing gentle door closure.
What door thicknesses are compatible?
This hinge supports doors with thicknesses from 16 mm to 26 mm.
What mounting method is used?

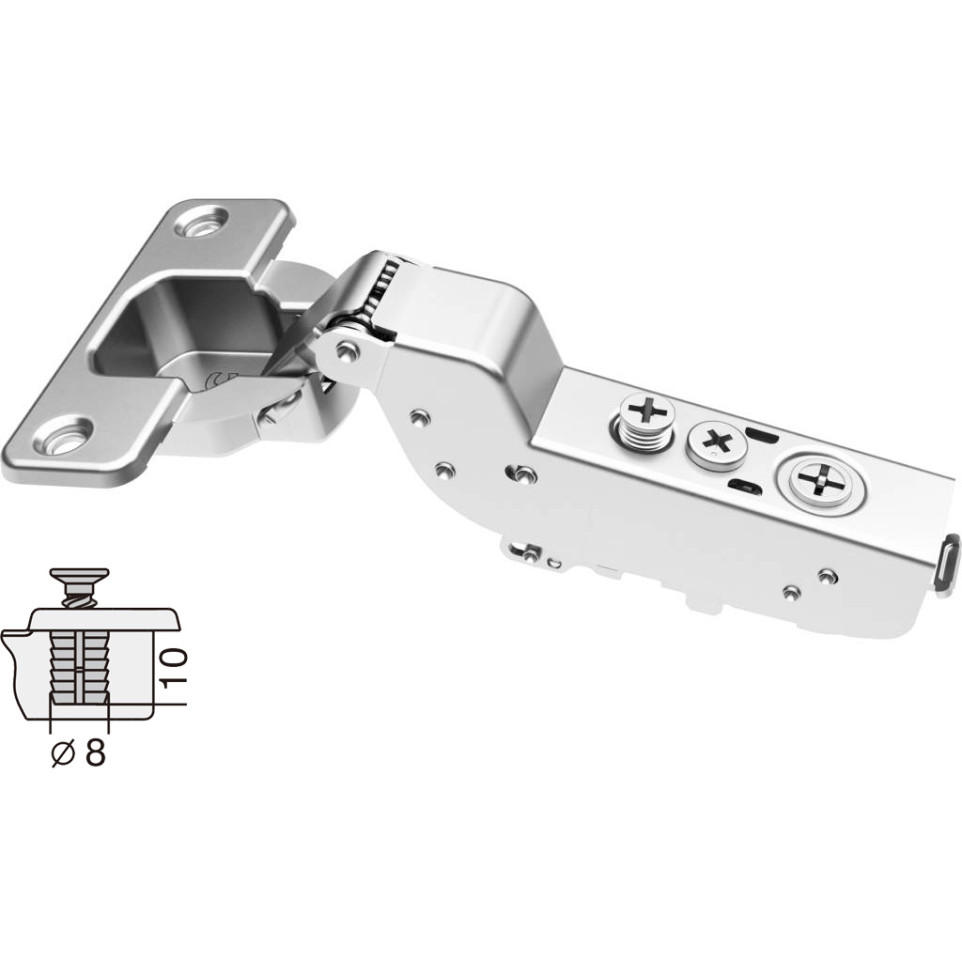

Mounts with Ø8x10 mm expansion dowels for simple, secure installation.
Does this hinge offer automatic closing?
Yes, the automatic closing feature ensures doors close fully and securely each time.
