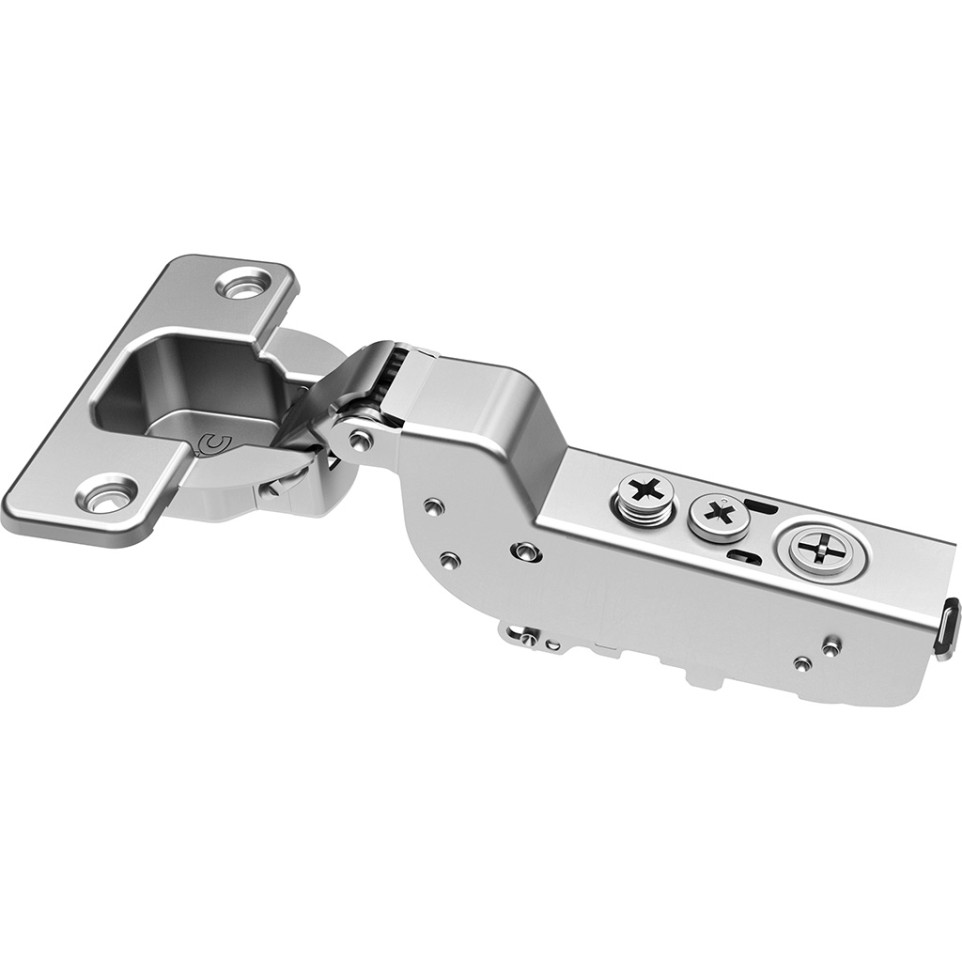

Pivot-Star 95 Degree Nickel Plated Screw-On Hinge with Soft Close and Self-Close for Overlay Doors up to 35mm

Pivot-Star 95 Degree Nickel Plated Screw-On Hinge with Soft Close and Self-Close for Overlay Doors up to 35mm
Pivot-Star 95 Degree Nickel Plated Screw-On Hinge with Soft Close and Self-Close for Overlay Doors up to 35mm
Pivot-Star 95 Degree Nickel Plated Screw-On Hinge with Soft Close and Self-Close for Overlay Doors up to 35mm
Pivot-Star 95 Degree Nickel Plated...
Pivot-Star 95 Degree Nickel Plated...
Pivot-Star 95 Degree Nickel Plated...

Estimated delivery date :  Wednesday 15 July
€3.02 HT
In stock

Ref : FGT-236237

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Charnière Pivot-Star 95° nickel-plated screw-on hinge with soft-close and automatic closing is designed for inset doors up to 35 mm thick, making it suitable for cabinets and furniture in residential or commercial environments.

Advantages

  • Integrated soft-close mechanism minimizes noise when shutting the door.
  • Automatic closing feature enhances convenience and security.
  • Screw-on installation simplifies mounting on wooden panels or frames.
  • Nickel-plated steel offers corrosion resistance and long-term durability.
  • Compact cup design (diameter: 35 mm; depth: 11.5 mm) fits standard drilling patterns.[1][2]

Specifications

  • The hinge is made from nickel-plated steel, ensuring a robust finish with good wear resistance.[1]

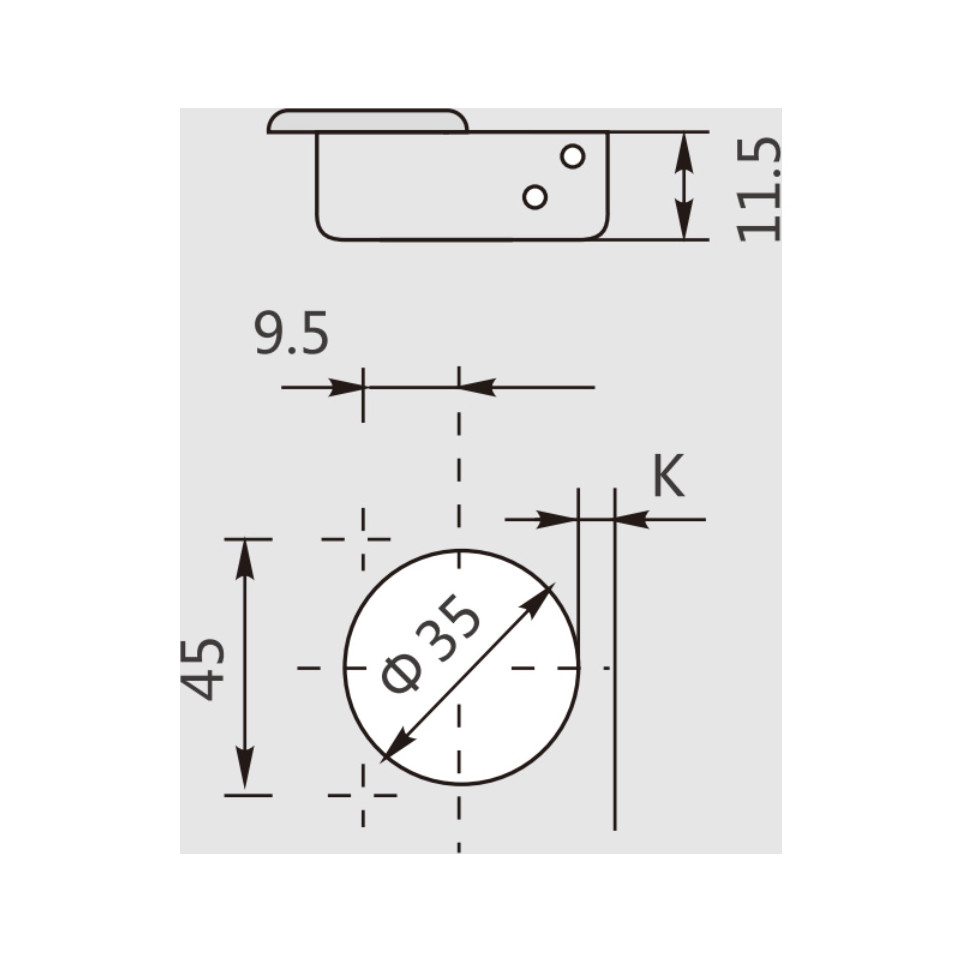

  • Suits doors between 19–35 mm thick; follows standard drilling scheme TB45 x 9.5 mm.[1]
  • Total opening angle: up to 95°. Cup diameter: Ø35 mm. Cup depth:11.5 mm.[1][2]
  • Dampened (soft-close) closure reduces impact stress on cabinet structures; includes self-closing functionality as a differentiating feature.[3]

How it works

This hinge mounts with screws into the cabinet side panel and door, using a concealed cup hole in the door edge. The integrated damper slows closure for smooth movement, while an internal spring ensures automatic shut at the end of travel.[1][3]

See more

Product Details

Brand DTC
Finishing nickelé
Type of assembly à visser
Material used acier
Drilling diagram TB45 x 9,5 mm
Finish Fittings rentrant
FGT-236237
