Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

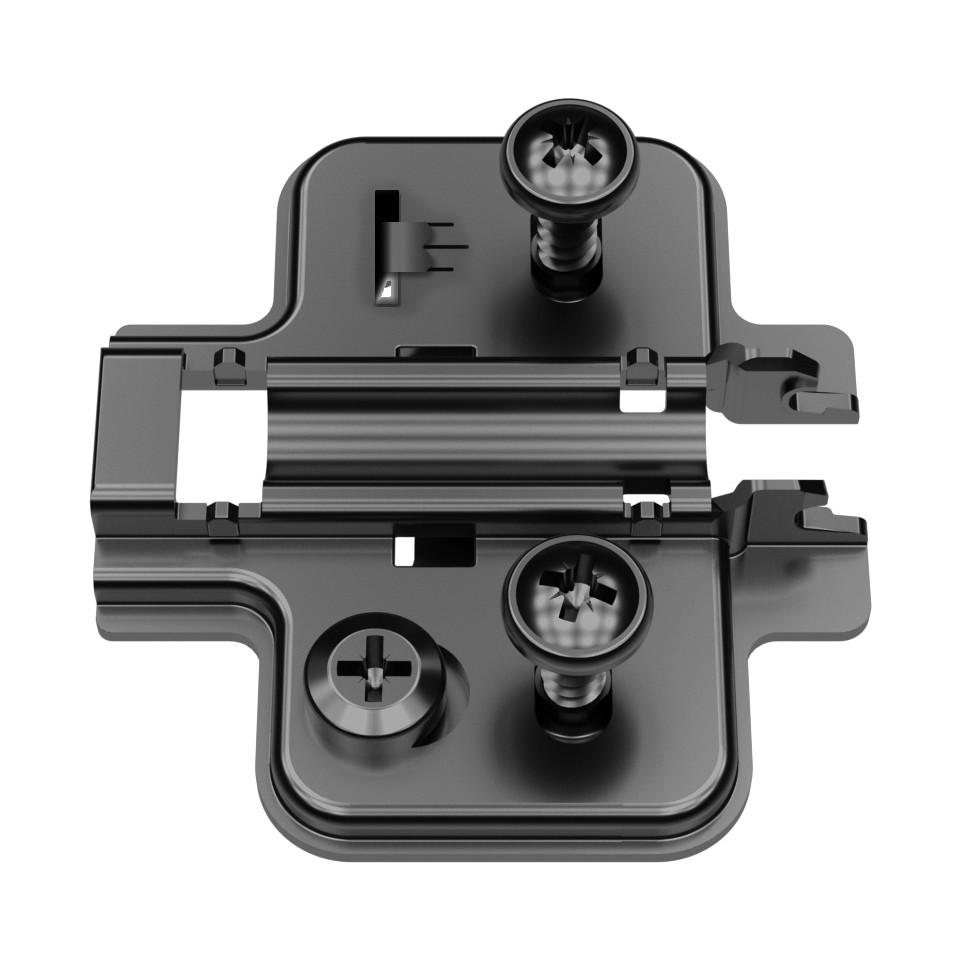

The Pivot-Star cruciform mounting plate in black titanium is designed for use with particle board panels, featuring direct height adjustment and a 2mm offset. Supplied with screws for Ø2.5mm pre-drilled holes, it is ideal for precise stud hinge installation.
Specifications
- Manufactured in black titanium finish with a robust cruciform design.
- Suitable for panels drilled at Ø2.5mm; screws included for chipboard or particle board.
- Offers direct height adjustment and a 2mm plate offset for optimal door alignment.
- Compatible with most stud hinges in cabinetry; supports 16–26mm door thickness.
- Precision-engineered for reliable fit and long-term durability.
Usage
Install by aligning the plate to the pre-drilled holes on your particle board panel and securing it with the provided screws. Use the accessible height adjustment feature to fine-tune door alignment for a seamless, stable hinge setup.
FAQ
-
Is the plate compatible with standard stud hinges?
Yes, it supports most stud hinges and accessories for cabinetry applications. -
What panel thicknesses does this plate accommodate?
Suitable for panels with a thickness of 16–26mm. -
How is the height adjusted?
Height is adjusted directly by turning the integrated cam screw, with a 2mm adjustment range. -
What drilling diameter is required?
A Ø2.5mm hole in the particle board is necessary for correct screw installation. -
Is the finish durable?
The black titanium coating offers resistance to everyday wear, maintaining its look over time.
