DTC Pivot-Star 45 Degree 110 Degree Soft-Close Titanium Black Screw-On Hinge with Damper and Auto Closing for Overlay Door

DTC Pivot-Star 45 Degree 110 Degree Soft-Close Titanium Black Screw-On Hinge with Damper and Auto Closing for Overlay Door
DTC Pivot-Star 45 Degree 110 Degree Soft-Close Titanium Black Screw-On Hinge with Damper and Auto Closing for Overlay Door
DTC Pivot-Star 45 Degree 110 Degree Soft-Close Titanium Black Screw-On Hinge with Damper and Auto Closing for Overlay Door
DTC Pivot-Star 45 Degree 110 Degree...
DTC Pivot-Star 45 Degree 110 Degree...
DTC Pivot-Star 45 Degree 110 Degree...

Estimated delivery date :  Thursday 9 July
€5.32 HT
In stock

Ref : FGT-236471

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

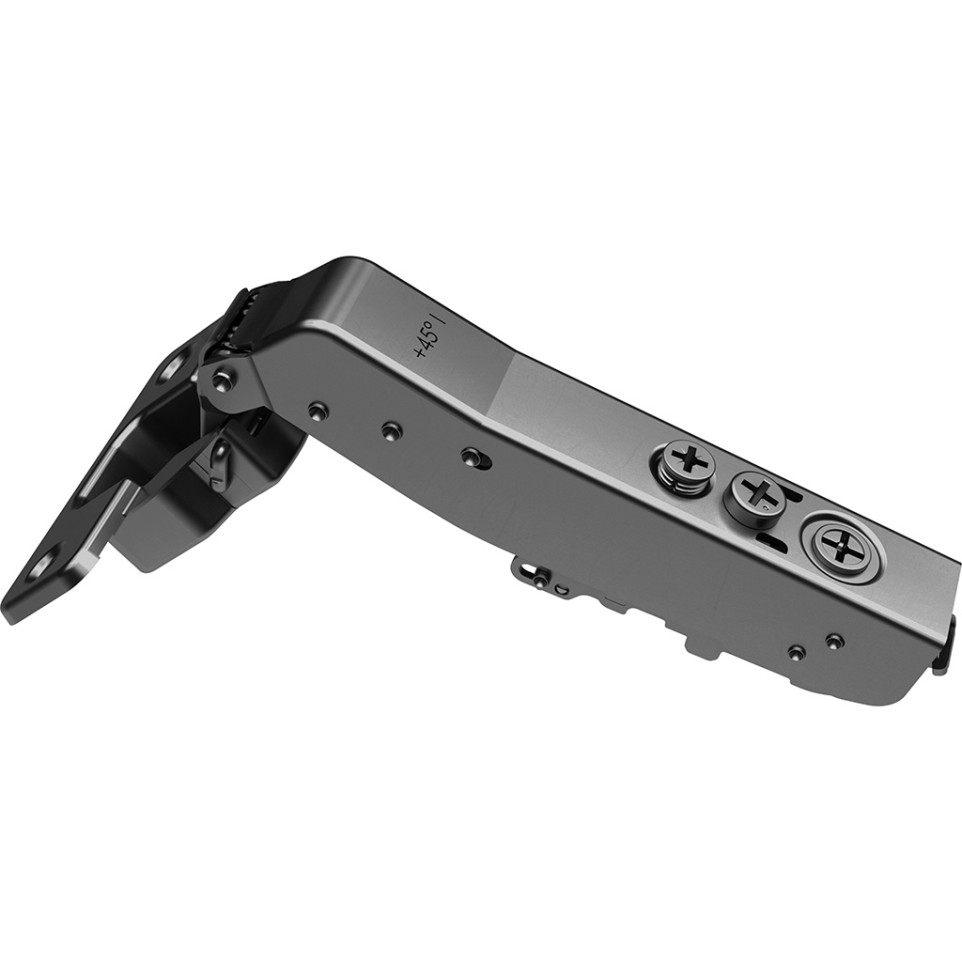

45° Pivot-Star hinge, 110° black titanium, offers integrated soft-close and automatic closing functionality for overlay cabinet doors. Designed for screw-on mounting and optimized for corner door applications in modern furniture or cabinetry.

Specifications

  • Black titanium finish adds durability and a contemporary look
  • Metal construction with premium engineering for long-lasting reliability

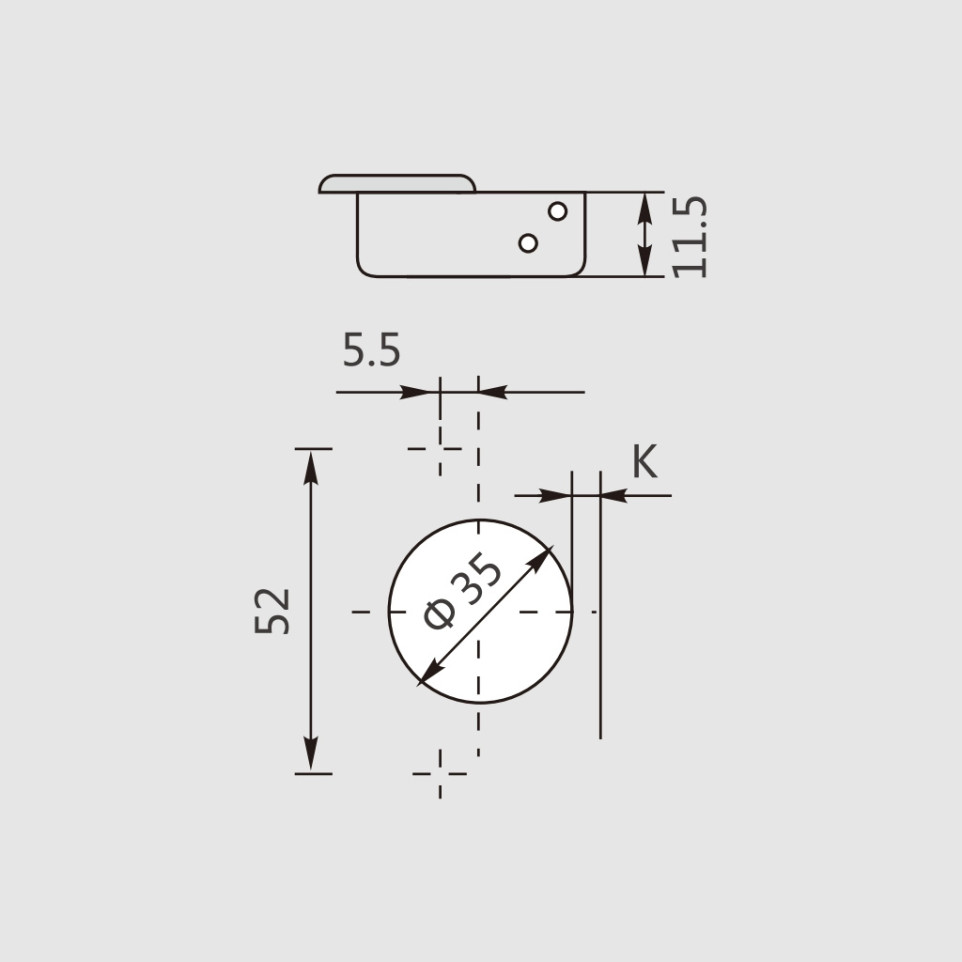

  • Hinge cup depth: 11.5 mm; Cup diameter: 35 mm

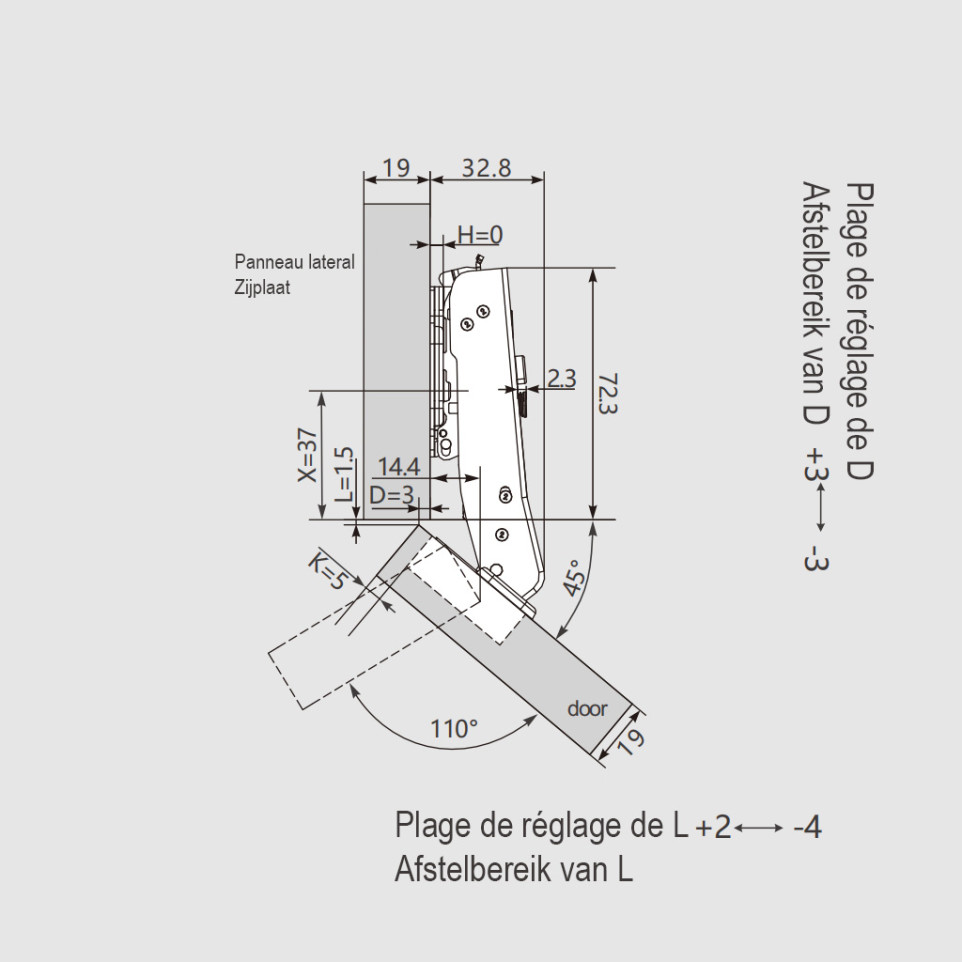

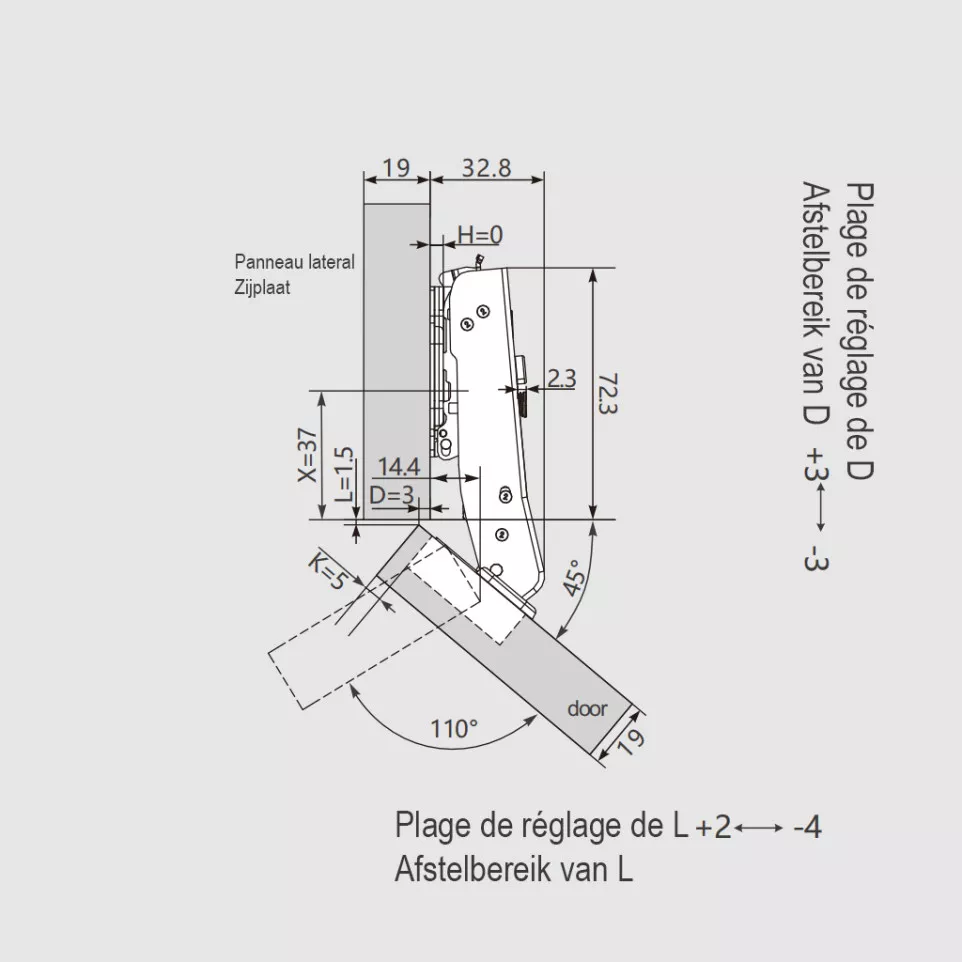

  • For door thickness: 16-26 mm; Drilling distances (K): 3-6 mm
  • Opening angle: 110°
  • With built-in soft-close damper and automatic closing
  • Suitable for overlay hinge type with screw mounting
  • Drilling pattern: 52 x 5.5 mm

Usage

Install the hinge by screwing it onto the door and cabinet frame following the specified drilling pattern. The integrated soft-close ensures gentle closing, reducing noise and wear. Automatic closing keeps doors securely shut, making it ideal for frequent-use areas.

FAQ

  1. What is the maximum door thickness compatible with this hinge?

    • The hinge supports doors from 16 mm up to 26 mm thick.

  2. Does this hinge provide soft-close functionality?

    • Yes, it features an integrated soft-close damper for silent, controlled closing.

  3. What type of installation is required?

    • The hinge is designed for screw-on mounting using the 52 x 5.5 mm drilling pattern.

  4. Is this hinge suitable for overlay or inset applications?

    • It is specifically designed for overlay doors.

  5. Can the closing speed be adjusted?

    • The soft-close mechanism is integrated; adjustments focus on installation precision rather than speed settings.
