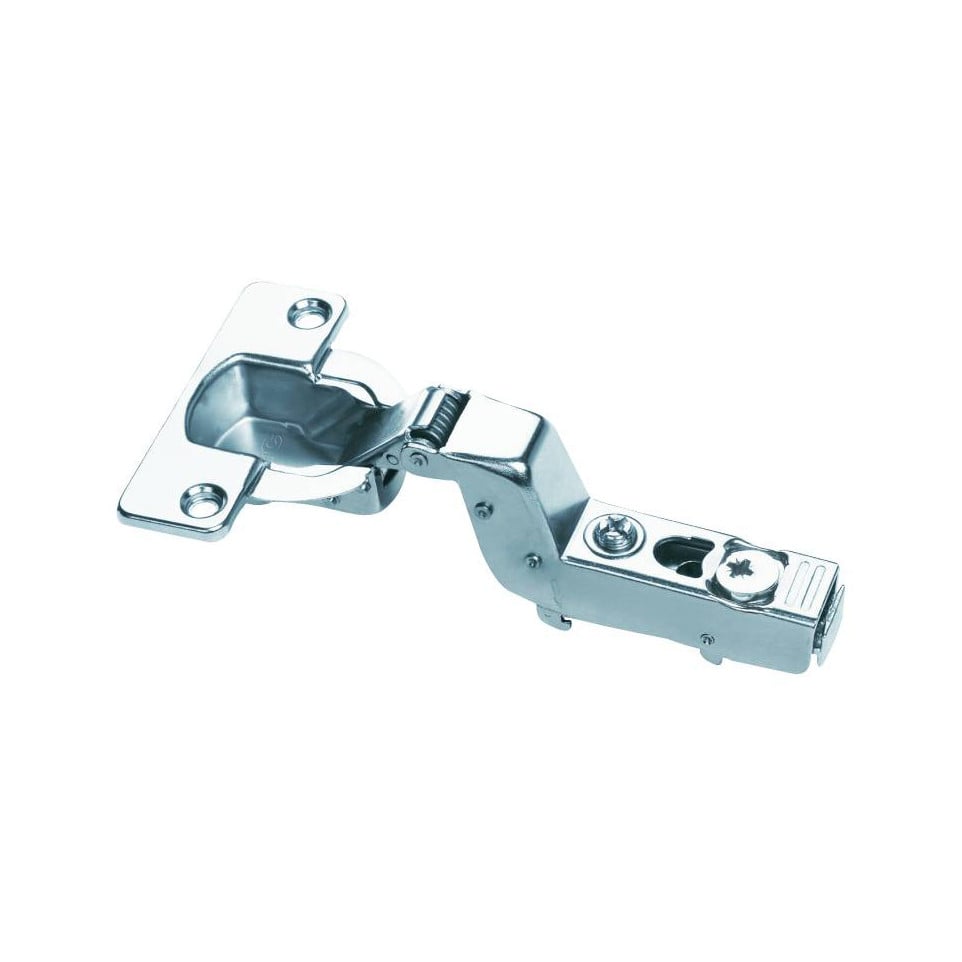

Pivot-Pro 95° Nickel Plated Screw-On Pivot Hinge with Damper, Auto-Close and 40mm Pin, for Inset Doors

Pivot-Pro 95° Nickel Plated Screw-On Pivot Hinge with Damper, Auto-Close and 40mm Pin, for Inset Doors
Pivot-Pro 95° Nickel Plated Screw-On Pivot Hinge with Damper, Auto-Close and 40mm Pin, for Inset Doors
Pivot-Pro 95° Nickel Plated Screw-On Pivot Hinge with Damper, Auto-Close and 40mm Pin, for Inset Doors
Pivot-Pro 95° Nickel Plated Screw-On...
Pivot-Pro 95° Nickel Plated Screw-On...
Pivot-Pro 95° Nickel Plated Screw-On...

Estimated delivery date :  Wednesday 15 July
€3.94 HT
In stock

Ref : FGT-236802

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

The Charnière Pivot-Pro 95° nickel-plated screw-on hinge features integrated soft-closing and automatic closing, designed for inset doors. Its 40 mm cup and robust construction make it ideal for high-use cabinetry and furniture where controlled closing and smooth operation are essential.

Specifications

  • Nickel-plated Pivot-Pro hinge for inset doors
  • Integrated damper for soft-closing with automatic closure function

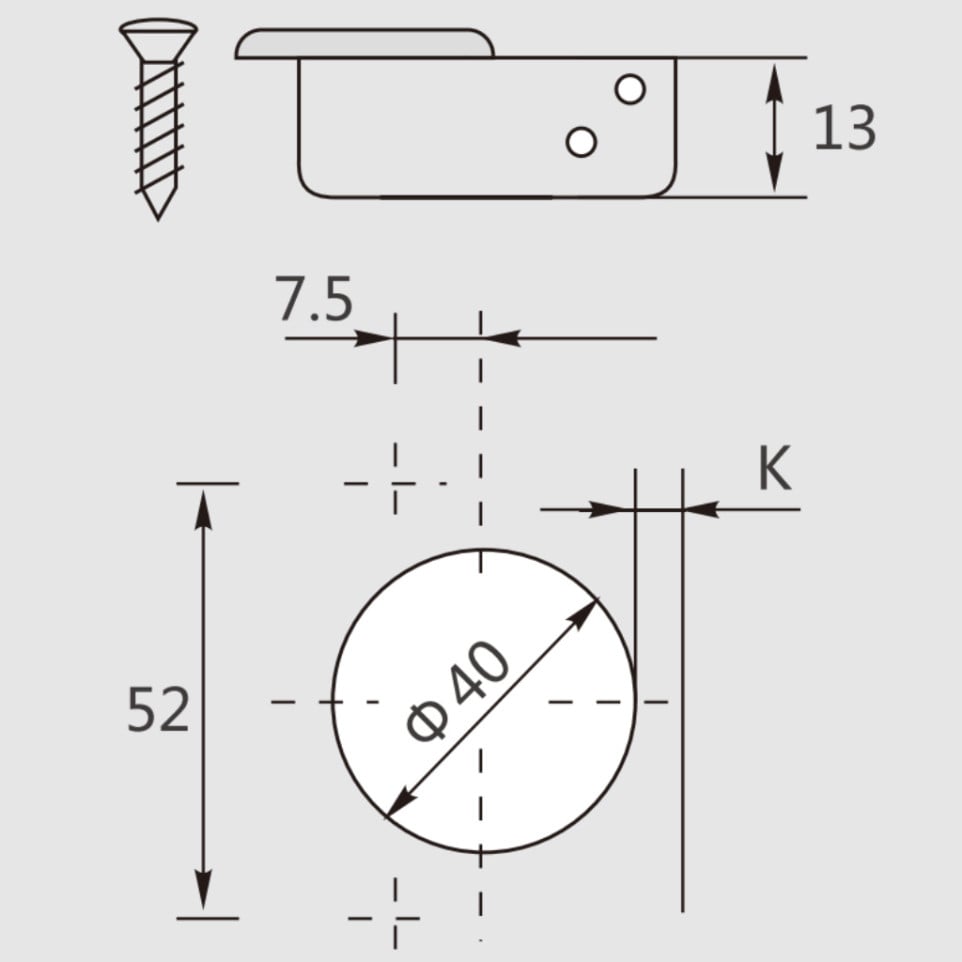

  • Cup diameter: 40 mm; cup depth: 13 mm
  • Opening angle: 95°
  • Drilling pattern: 52 x 5.5 mm for precise installation
  • Suitable for door thicknesses: 20–40 mm

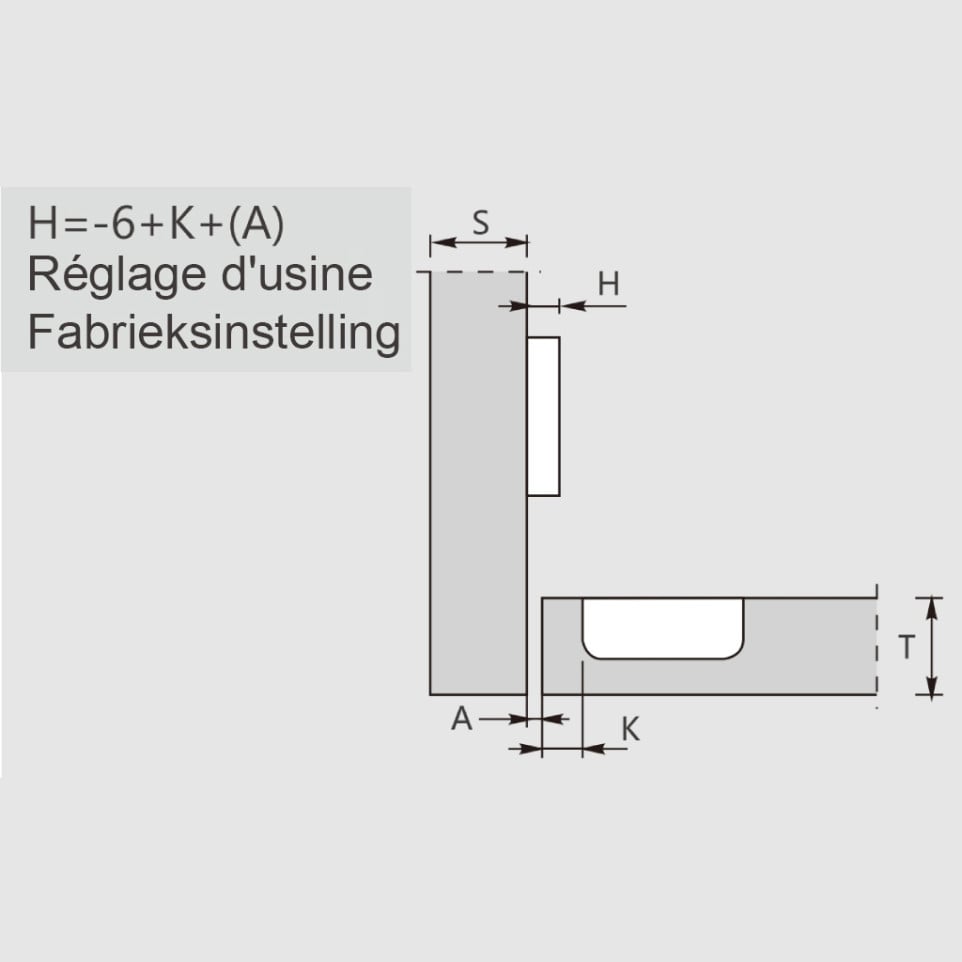

  • Adjustable installation with possible drilling distances (K): 3–15 mm
  • Screw-on mounting ensures secure fixation

Usage

This hinge is mounted by screwing into pre-drilled holes on cabinet doors. It allows doors to open to 95°, close automatically, and gently thanks to the built-in damper. The robust construction and easy-fit design make it suitable for residential or commercial furniture with inset doors demanding reliable, quiet closing.

FAQ

  1. What type of doors is this hinge designed for?

    • It is designed for inset doors with a thickness between 20 and 40 mm.

  2. Does the hinge provide soft-closing functionality?

    • Yes, the built-in damper ensures gentle and quiet closing.

  3. What is the cup diameter for drilling?

    • The required bore diameter is 40 mm.

  4. Is it easy to install for standard cabinetry?

    • Yes, the hinge features a screw-on mounting system and a common 52 x 5.5 mm drilling scheme.

  5. What is the opening angle of the hinge?

    • The hinge allows a 95° opening angle for comfortable access.
