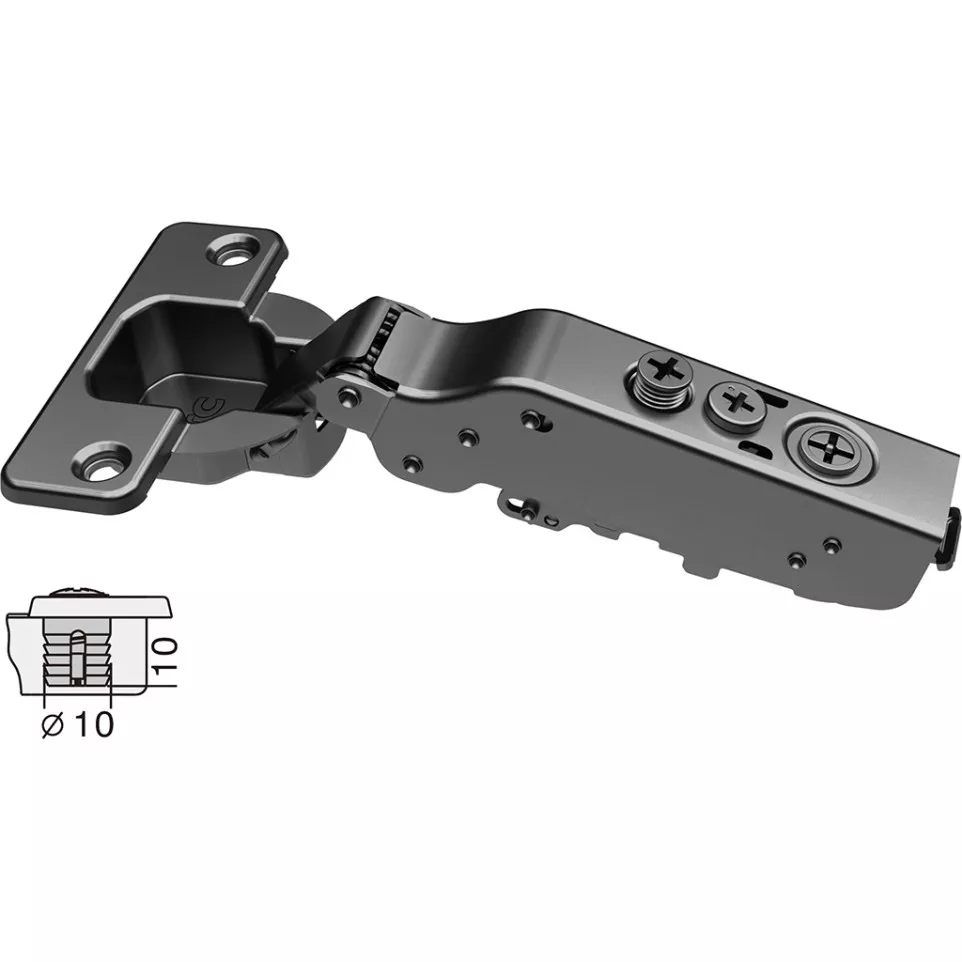

Pivot-Star 110° black titanium stud hinge with fast quarter-turn mounting, featuring built-in soft-close damping and automatic closing. Ideal for quick and reliable installation on overlay doors in furniture or cabinetry.
Specifications
- Black titanium finish; constructed with robust steel and engineered plastic components.
- Enhanced durability; designed for intensive residential or commercial use.
- Soft-close mechanism, 110° opening angle, automatic closure.

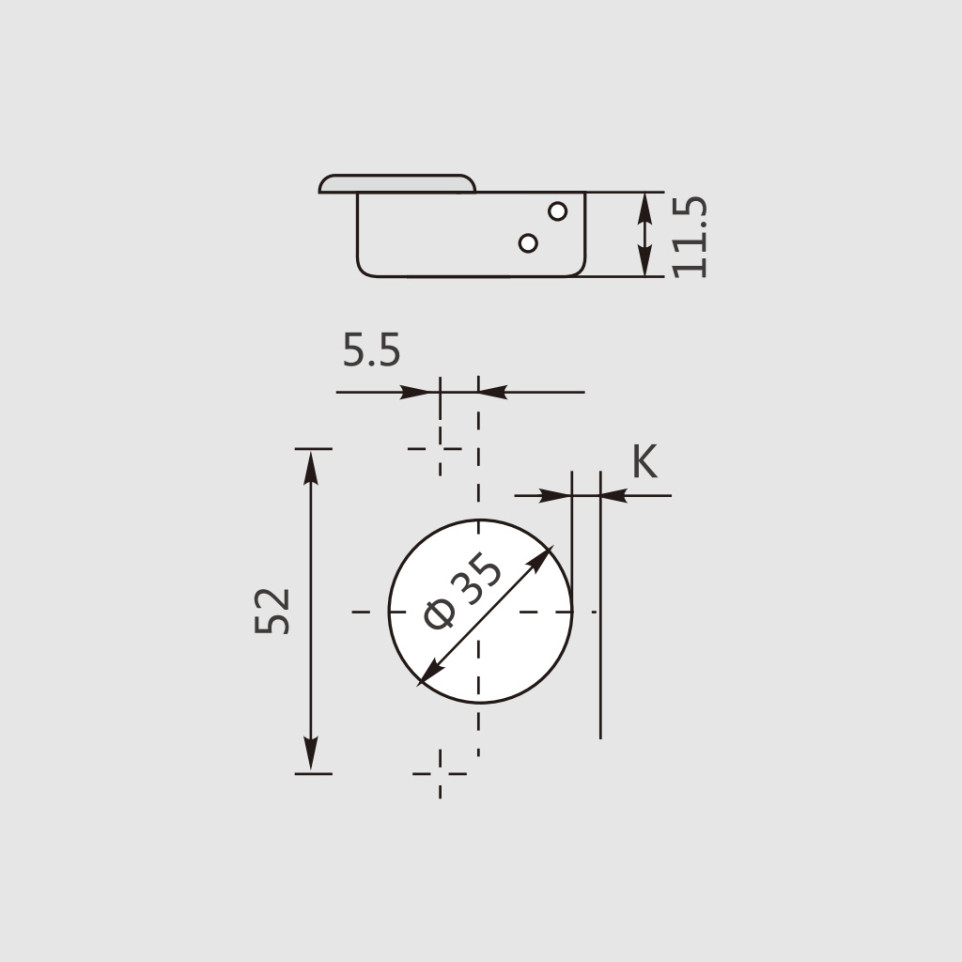

- Cup depth: 11.5 mm; cup diameter: 35 mm.
- Quick-install quarter-turn mounting.
- Suitable for overlay fittings; compatible with door thicknesses 16–26 mm.

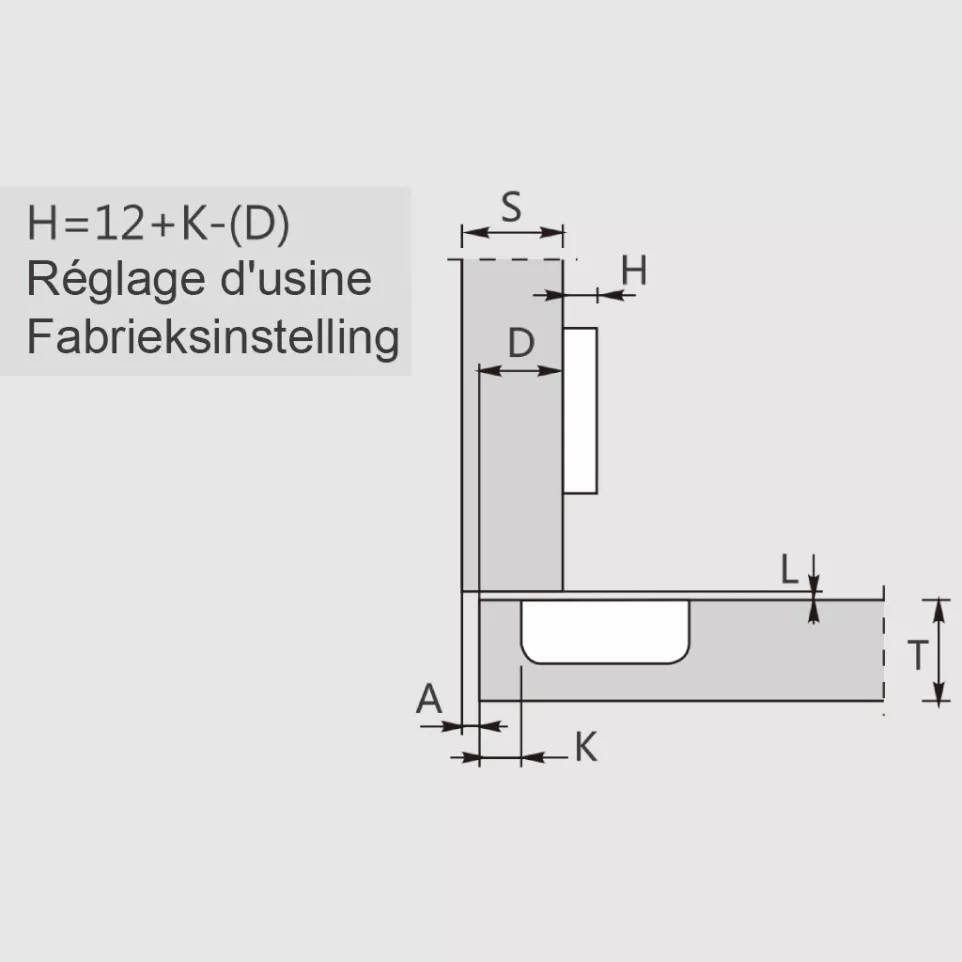

- Precise drilling pattern: 52 x 5.5 mm; door drilling distance (K): 3–6 mm.
Usage
Install directly into a prepared door with specified mounting holes and depths using the quick quarter-turn mechanism. The hinge provides smooth, quiet, and controlled door closure with amortisation, ideal for kitchens, offices, or custom cabinetry.
FAQ
- What is the maximum opening angle? – The hinge opens to 110 degrees.
- What door thicknesses are compatible? – Suitable for doors 16 to 26 mm thick.
- Does this hinge include soft-close and automatic closing? – Yes, both features are built in.
- How is it installed? – The hinge mounts quickly with a quarter-turn system and requires precise drilling (52 x 5.5 mm, K: 3–6 mm).
- What materials are used in the construction? – The hinge combines steel and advanced polymer materials with a black titanium finish for durability and aesthetics.
