Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

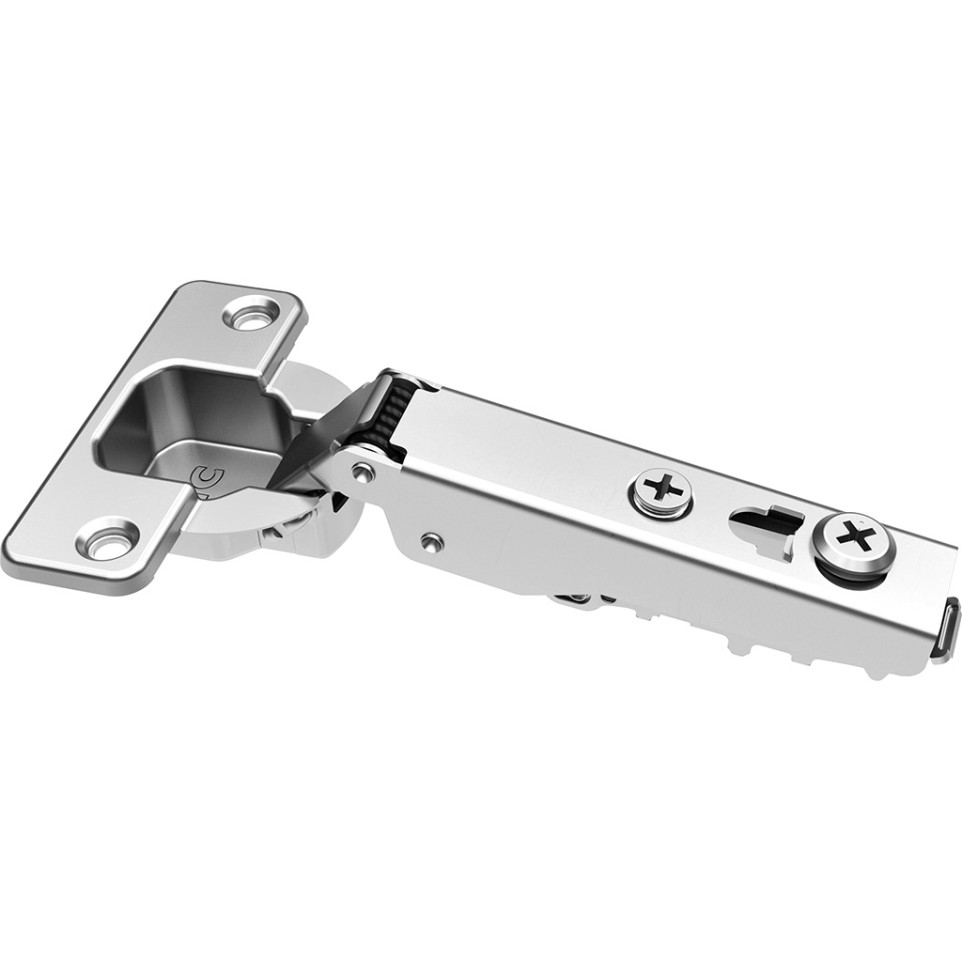

Stylish 110° nickel-plated screw-on hinge without soft close, featuring automatic closing. Designed for overlay doors, it is ideal for cabinet and furniture applications requiring reliable and consistent self-closing action.
Specifications
- Nickel-plated steel construction offers corrosion resistance and a modern finish.
- Mounting: Screw-on type, suitable for overlay installations.

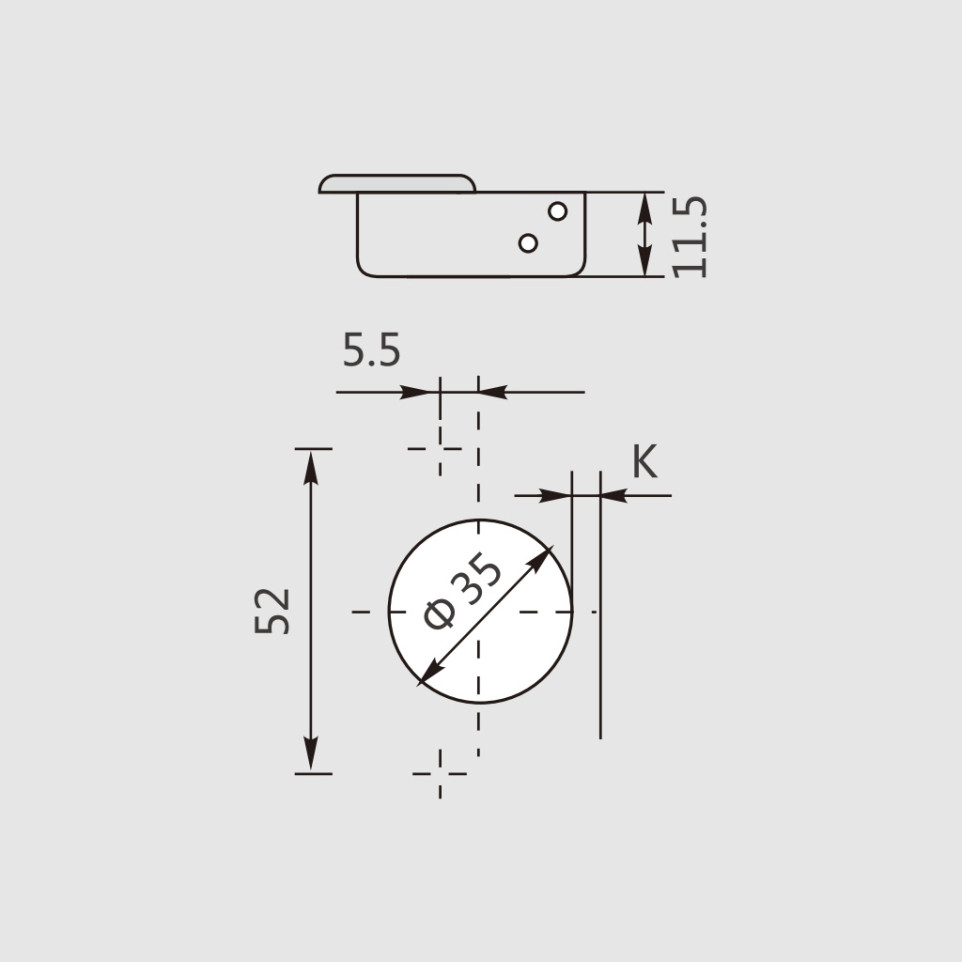

- Hinge cup: 35 mm diameter, 11.5 mm depth.
- Opening angle: 110° for wide accessibility.
- Cup drilling pattern: 52 x 5.5 mm.
- For door thicknesses: 16–26 mm.

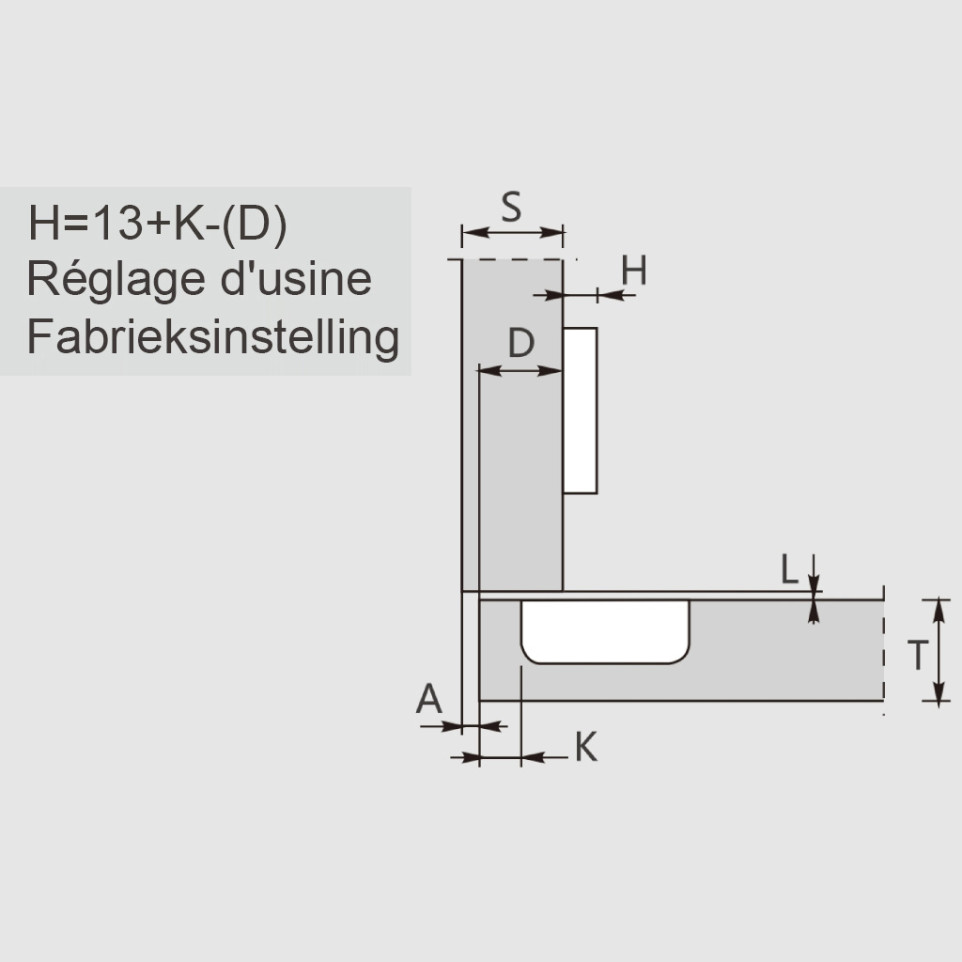

- Drilling distance on door (K): 3–6 mm.
- Automatic closing without integrated damping.
Usage
Install the hinge by screwing it into a 35 mm diameter, 11.5 mm deep bore on overlay cabinet or furniture doors. Adjust drilling distances (K) between 3–6 mm to match door alignment. The hinge ensures doors close automatically, providing practical daily convenience.
FAQ
-
Is this hinge suitable for soft-close doors?
No, this hinge does not have integrated soft-close; it features automatic closing without damping. -
What type of door is required for installation?
It fits overlay doors with thicknesses from 16 to 26 mm. -
What is the required drilling diameter for the hinge cup?
The cup requires a 35 mm diameter bore with a depth of 11.5 mm. -
Is installation hardware included?
Screws are needed for installation; verify included accessories before purchase. -
Can this hinge be used for both right and left cabinet doors?
Yes, the design allows mounting on either side for door flexibility.
