Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

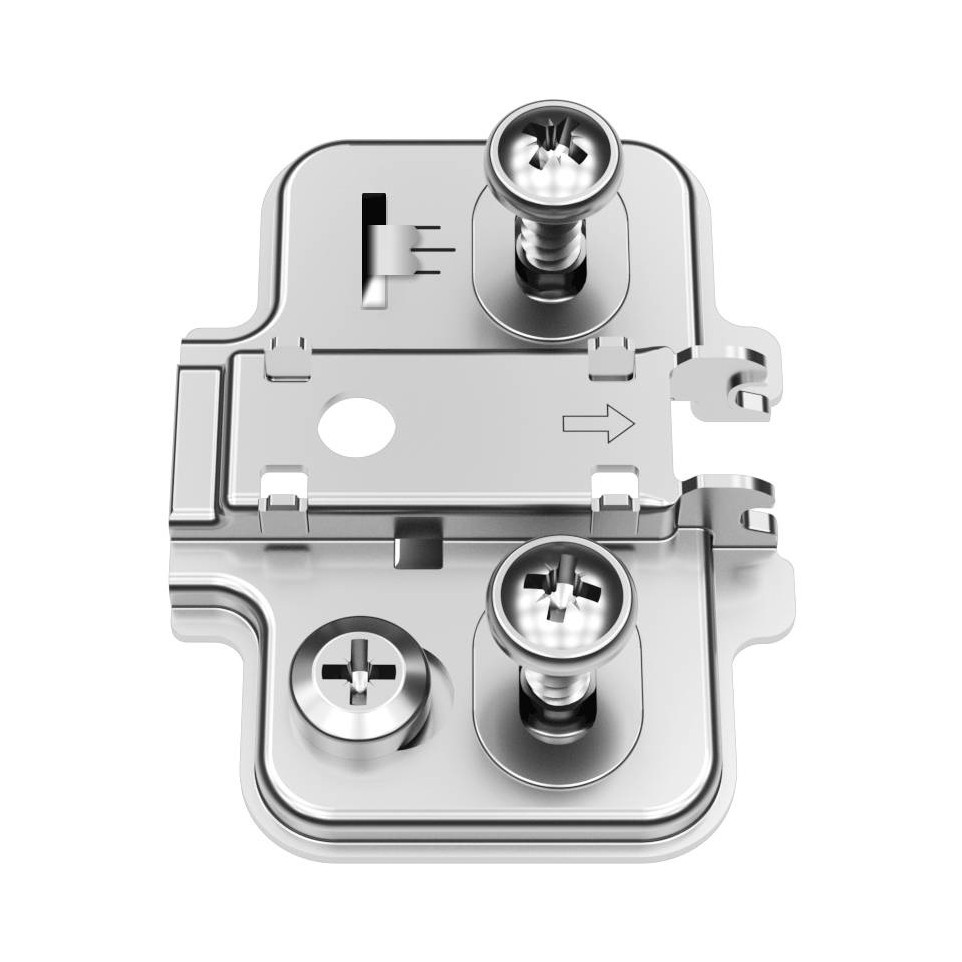

Nickel-plated cruciform mounting plate with Euro screws for 5 x 8 mm drilling, offering direct height adjustment and a 2 mm spacing. Designed for stud hinge assembly, it ensures precise, secure installation in furniture and cabinetry.
Specifications
- Steel construction with a durable nickel-plated finish

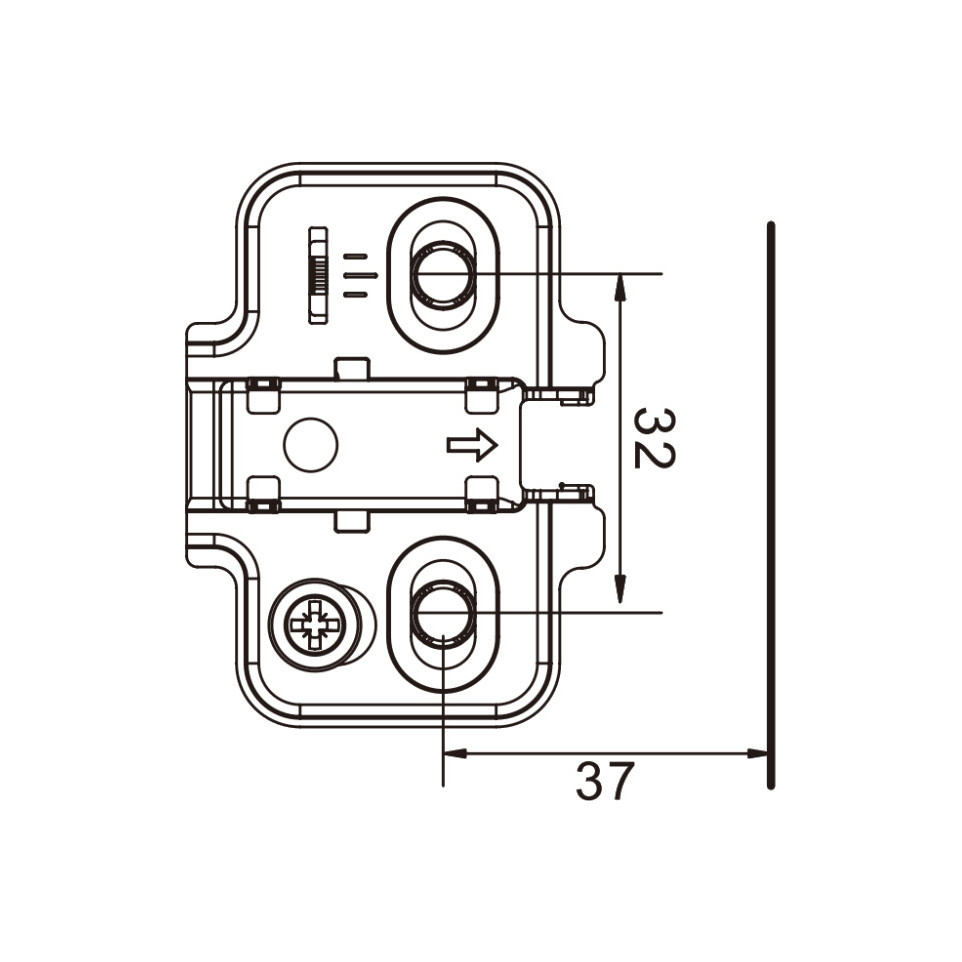

- Euro screws for a solid mounting in Ø5 x 8 mm pre-drilled holes

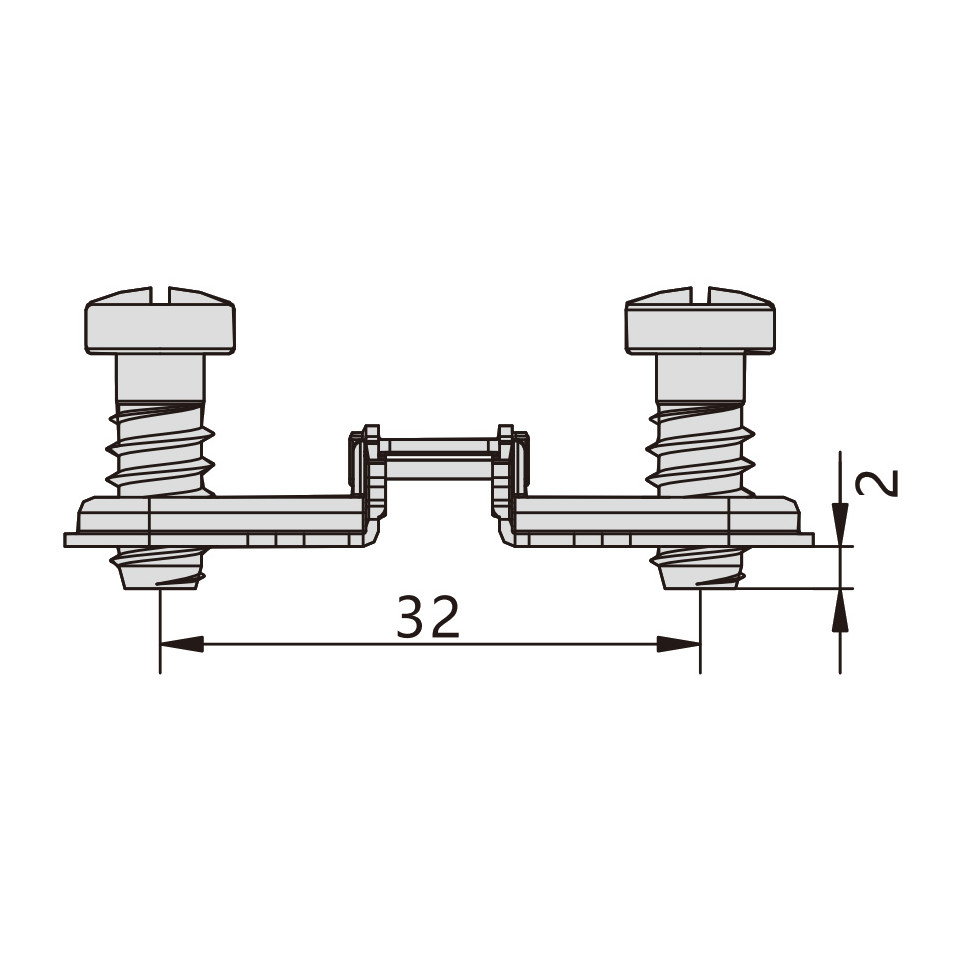

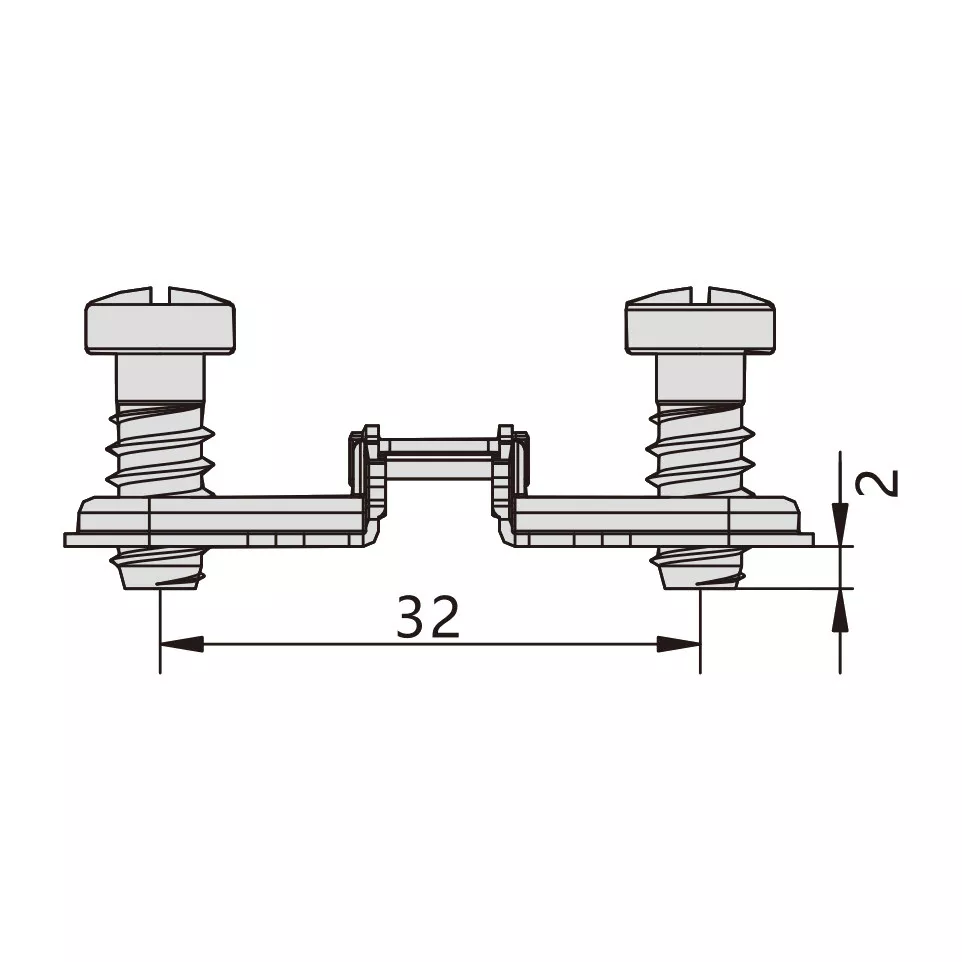

- Direct vertical adjustment for ease of alignment, distance 2 mm per piece
- Engineered for reliable performance in stud hinges and hardware applications
Usage
Install the mounting plate onto cabinet or frame panels using the supplied Euro screws and 5 x 8 mm pre-drilled holes. Fine-tune door alignment by adjusting the plate’s direct height positioning. Suitable for use with compatible hinges in various joinery and furniture projects.
FAQ
-
What material is the cruciform mounting plate made from?
It is made from steel with a nickel-plated finish for durability and corrosion resistance. -
How is the mounting plate installed?
The plate is fixed using Euro screws, requiring pre-drilled Ø5 x 8 mm holes for secure, accurate assembly. -
Can height be adjusted after installation?
Yes, the direct adjustment feature allows you to finely tune the plate’s height for precise door alignment. -
What is the intended application of this mounting plate?
It is designed for stud hinges and similar hardware, commonly used in cabinet and furniture construction. -
Is the plate suitable for other drilling patterns?
This model is specifically engineered for Ø5 x 8 mm holes. Use with other patterns may not ensure correct fit or function.
