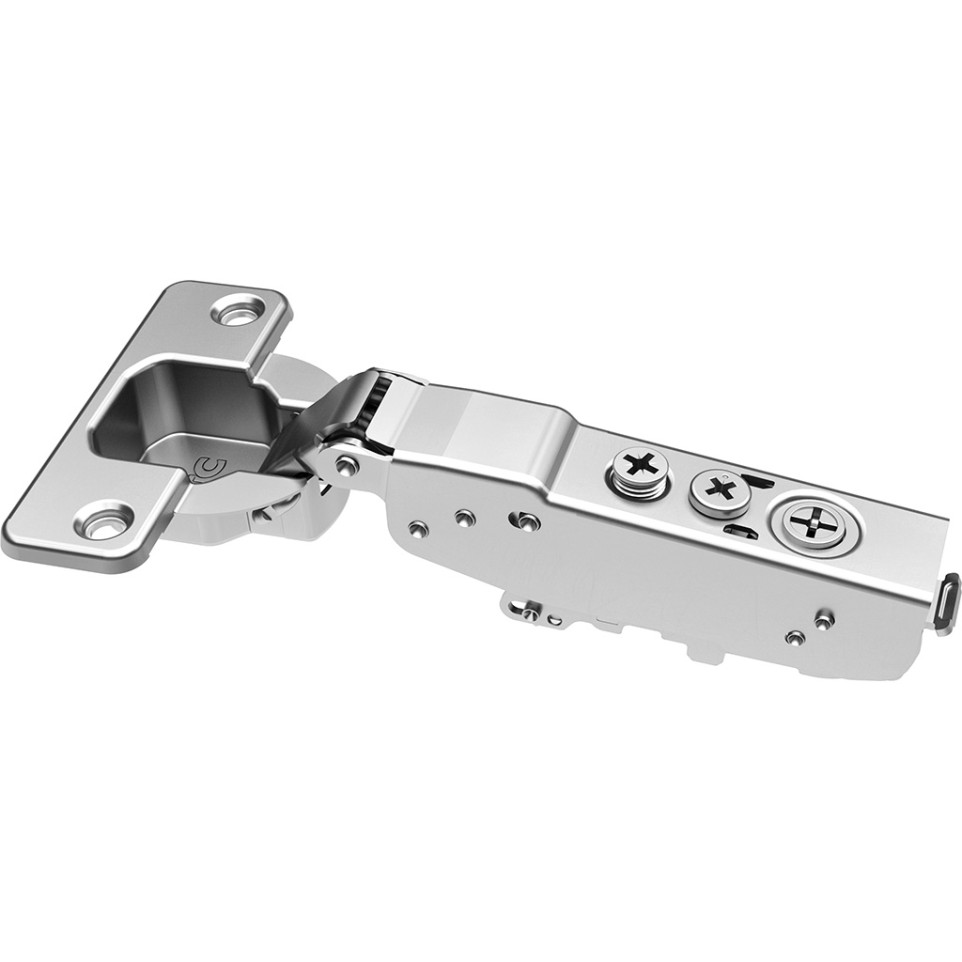

Pivot-Star 95° Nickel Plated Screw-On Hinge with Soft Close and Automatic Closing for Semi Overlay Doors

Product

Nickel-plated Pivot-Star hinge for semi-overlay doors, offering a 95° opening angle, soft-close damping, and automatic closing. Engineered for cabinet or furniture doors within 19–35 mm thickness, it’s designed for secure screw-on installation.

Specifications

• Sturdy nickel-plated construction with integrated soft-close mechanism for gentle and quiet operation
• Boîtier depth: 11.5 mm; diameter: 35 mm
• For semi-overlay (partial cover) mounting

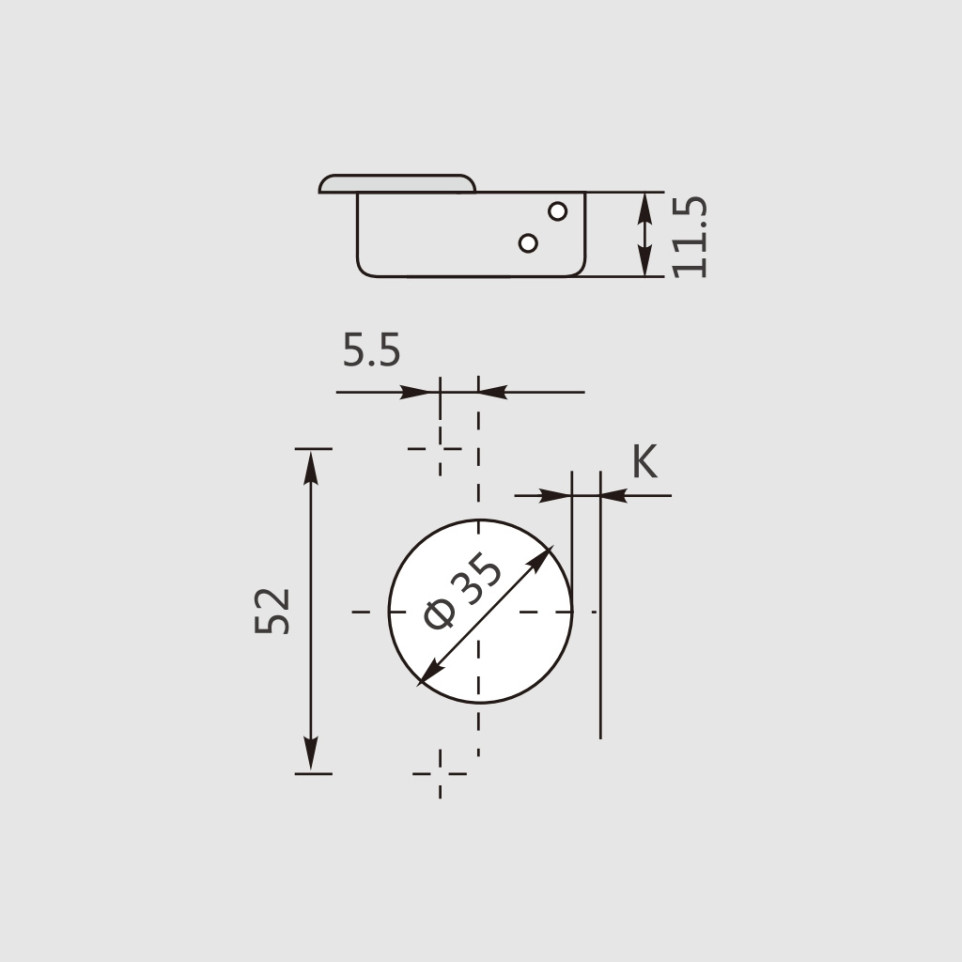

• Drilling pattern: 52 x 5.5 mm
• Recommended door thickness: 19–35 mm

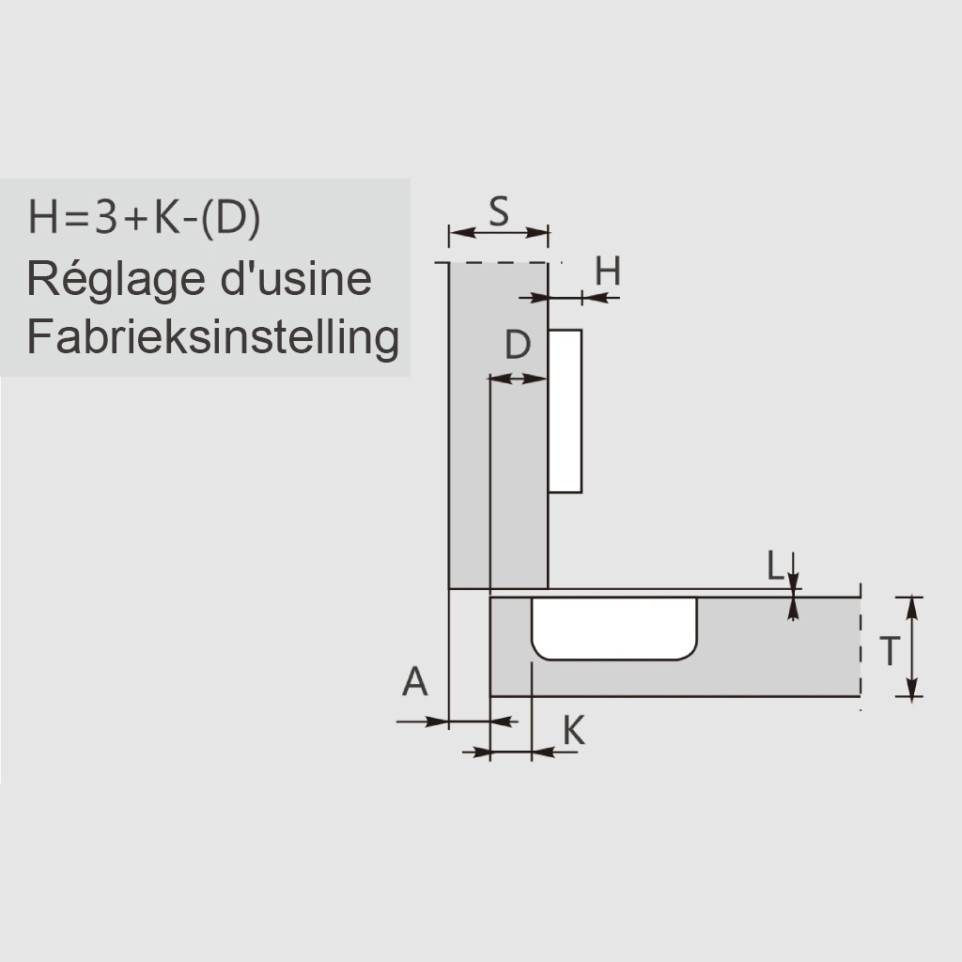

• Variable fixing distances on door: 3–6 mm
• Automatic closing feature ensures door remains shut securely

Usage

Screw the hinge onto the cabinet frame and semi-overlay door using the provided drilling pattern and mounting locations. The soft-close feature cushions door movement, while the automatic closing keeps it properly shut, making it ideal for kitchens, wardrobes, and furniture with moderate to thick doors.

FAQ

1. What door thicknesses are supported?
   Designed for doors from 19 to 35 mm thick.

2. Is the closing action adjustable?
   The integrated damper ensures soft and consistent self-closing, though speed or damping level is not user-adjustable.

3. Can this hinge be installed by screwing?
   Yes, the hinge is designed for easy screw-on mounting.

4. What is the opening angle?
   The hinge allows for a 95° door opening, suitable for most cabinet configurations.

5. Is this hinge suitable for full-overlay or only semi-overlay doors?
   This model is specifically for semi-overlay door applications.
