Stylish 110° Nickel-Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Door

Stylish 110° Nickel-Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Door
Stylish 110° Nickel-Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Door
Stylish 110° Nickel-Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Door
Stylish 110° Nickel-Plated Concealed...
Stylish 110° Nickel-Plated Concealed...
Stylish 110° Nickel-Plated Concealed...

Estimated delivery date :  Tuesday 9 June
€2.52 HT
In stock

Ref : FGT-236705

Variantes

Hinge Stylish 110° Nickel-Plated Screw-On with Soft-Close and Self-Closing for Overlay Door per Piece Hinge Stylish 110° Nickel-Plated Screw-On with Soft-Close and Self-Closing for Overlay Door per Piece Stylish 110° Nickel Hinge with Expansion Sleeves (Ø8x10mm), Damper and Self-Closing Stylish 110° Nickel Hinge with Expansion Sleeves (Ø8x10mm), Damper and Self-Closing Stylish 110° Nickel Hinge with Expansion Sleeves (Ø8x10mm), Soft Close and Auto Stylish 110° Nickel Hinge with Expansion Sleeves (Ø8x10mm), Soft Close and Auto Stylish 110° Nickel Hinge with Expansion Sleeves Ø8mm, Damper and Soft Close, Semi-Inset Door Stylish 110° Nickel Hinge with Expansion Sleeves Ø8mm, Damper and Soft Close, Semi-Inset Door Stylish 110° Nickel Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self-Closing for Inset Door per unit Stylish 110° Nickel Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self-Closing for Inset Door per unit Stylish 110° Nickel Plated Concealed Hinge (Ø8x10mm) with Soft Close and Self Closing for Partial Overlay Doors Stylish 110° Nickel Plated Concealed Hinge (Ø8x10mm) with Soft Close and Self Closing for Partial Overlay Doors Stylish 110° Nickel Plated Screw-On Hinge with Soft Close and Self Closing for Overlay Door / PC Stylish 110° Nickel Plated Screw-On Hinge with Soft Close and Self Closing for Overlay Door / PC Stylish 110° Nickel Quick-Mount Hinge with Soft Close and Auto Close for Door (Ø10x10mm) Stylish 110° Nickel Quick-Mount Hinge with Soft Close and Auto Close for Door (Ø10x10mm) Stylish 110° Nickel-Plated Clip-On Hinge with Soft Close and Automatic Closing for Door (Ø10x10mm) Stylish 110° Nickel-Plated Clip-On Hinge with Soft Close and Automatic Closing for Door (Ø10x10mm) Stylish 110° Nickel-Plated Concealed Hinge (Ø8x10mm), Soft-Close and Self-Closing, for Overlay Door Stylish 110° Nickel-Plated Concealed Hinge (Ø8x10mm), Soft-Close and Self-Closing, for Overlay Door Stylish 110° Nickel-Plated Concealed Hinge with Soft Close and Automatic Closing for Semi Overlay Door (Ø10x10mm) Stylish 110° Nickel-Plated Concealed Hinge with Soft Close and Automatic Closing for Semi Overlay Door (Ø10x10mm) Stylish 110° Nickel-Plated Press-In Hinge (Ø8x10mm) Soft-Close Self-Closing Inset Door / P Stylish 110° Nickel-Plated Press-In Hinge (Ø8x10mm) Soft-Close Self-Closing Inset Door / P Stylish 110° Nickel-Plated Quick-Mount Hinge Flash (Ø10x10mm) with Soft Close and Auto Closing for Door Stylish 110° Nickel-Plated Quick-Mount Hinge Flash (Ø10x10mm) with Soft Close and Auto Closing for Door Stylish 110° Nickel-Plated Screw-On Hinge with Soft Close and Auto Closing for Half Overlay Door per Piece Stylish 110° Nickel-Plated Screw-On Hinge with Soft Close and Auto Closing for Half Overlay Door per Piece Stylish 110° Nickel-Plated Screw-On Hinge with Soft Close and Automatic Closing for Inset Door / PC Stylish 110° Nickel-Plated Screw-On Hinge with Soft Close and Automatic Closing for Inset Door / PC Stylish 110° Nickel-Plated Soft-Close Screw-On Hinge with Automatic Closing for Half Overlay Door per Piece Stylish 110° Nickel-Plated Soft-Close Screw-On Hinge with Automatic Closing for Half Overlay Door per Piece Stylish Nickel-Plated 110° Screw-On Hinge with Soft-Close and Self-Closing for Overlay Door / Piece Stylish Nickel-Plated 110° Screw-On Hinge with Soft-Close and Self-Closing for Overlay Door / Piece
Quantity (Vendu par 50)

Add to your shopping List

You must be logged


Related Products

Description

Product

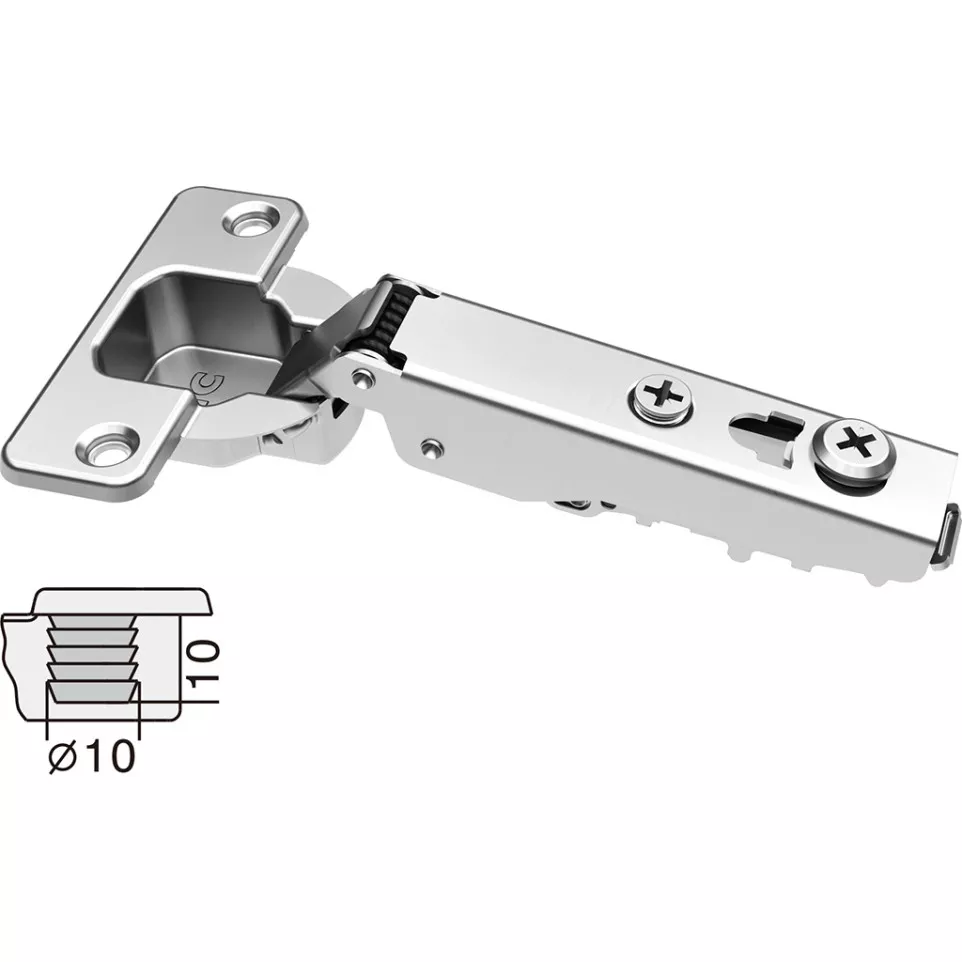

Stylish 110° nickel-plated press-in hinge designed for overlay doors, featuring integrated damping and automatic closing. Ideal for cabinet and furniture doors requiring smooth, quiet operation and reliable closure.

Specifications

  • Nickel-plated finish resists wear and corrosion
  • Integrated soft-closing mechanism for quiet, controlled movement
  • 110° opening angle allows wide access
  • Mounting type: press-in
  • Cup depth: 11.5 mm
  • Cup diameter: 35 mm
  • Drilling pattern: 52 x 5.5 mm
  • Door thickness compatibility: 16–26 mm

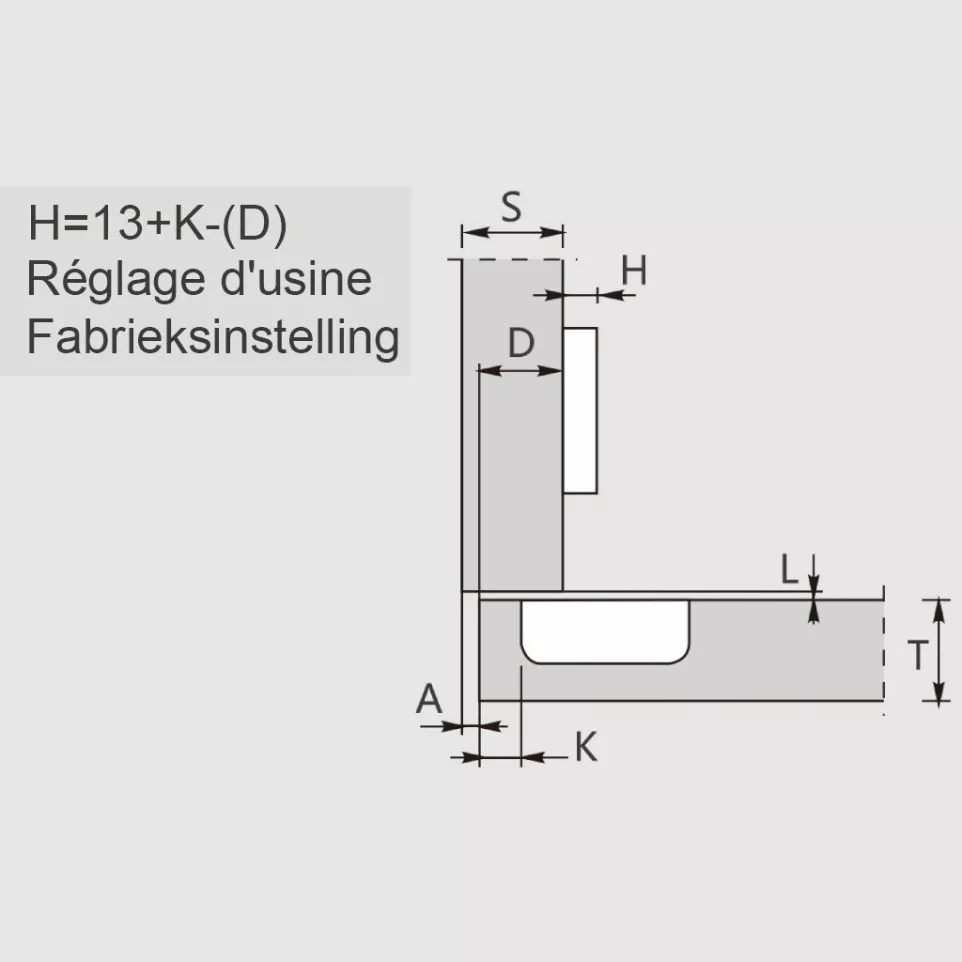

  • Possible drilling distances (K): 3–6 mm

Usage

Install by boring a 35 mm diameter hole with an 11.5 mm depth on the door, then press-fit the hinge cup. Suitable for overlay mounting on cabinet or furniture doors 16–26 mm thick. The hinge’s damping system ensures soft closing with automatic lock-in at the end of travel.

FAQ

  1. What door thickness does this hinge support?
    It accommodates doors with thicknesses between 16 mm and 26 mm.

  2. Is a special tool required for installation?
    A standard boring bit for a 35 mm hole is sufficient for mounting; no specialized tools are needed.

  3. Does the hinge provide soft and automatic closing?
    Yes, it features integrated damping and automatic closing for smooth and secure operation.

  4. Can it be used for overlay cabinet doors?
    Yes, it is specifically designed for overlay (applique) door mounting.

  5. What are the required drilling dimensions?
    The cup requires a hole with 11.5 mm depth and 35 mm diameter; drilling distances on the door (K) should be between 3–6 mm.
