Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage

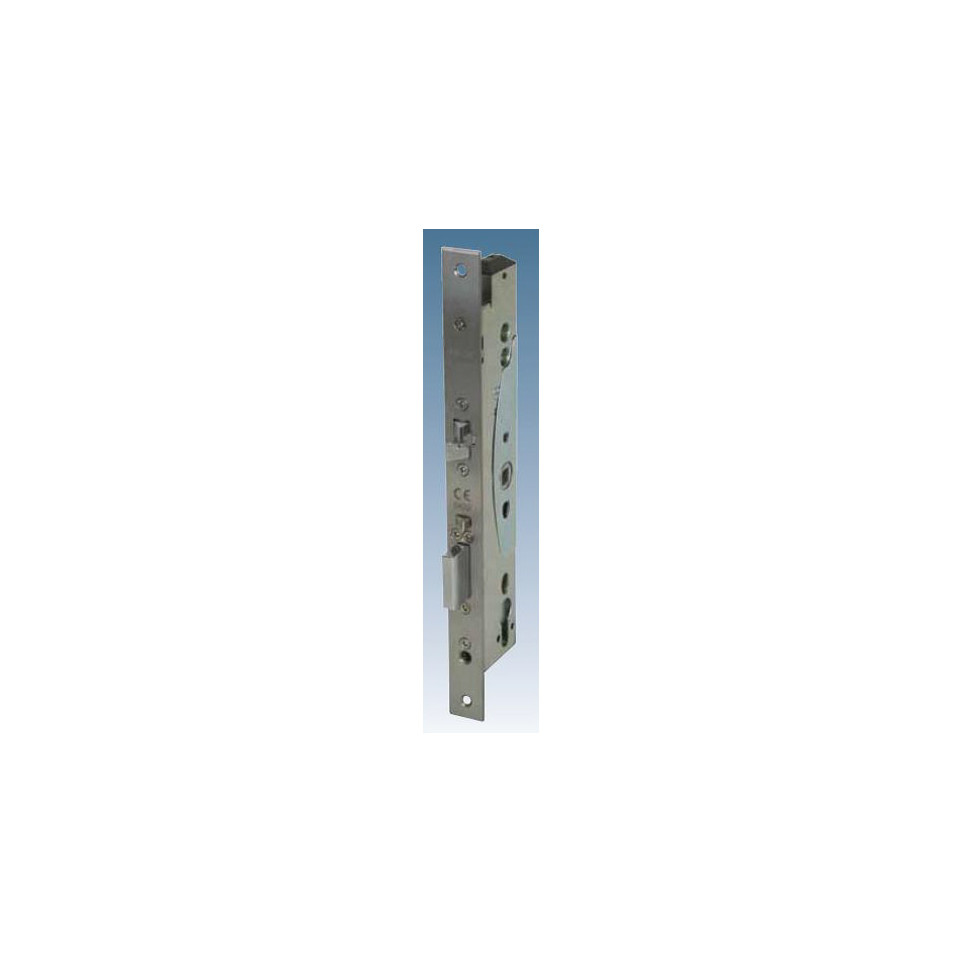

The Abloy EL461 solenoid lock is designed for controlled access on medium-traffic profile doors, offering electronic operation from both sides. It is ideal for internal doors in commercial, public, or institutional buildings where secure and monitored entry and exit are needed.
Advantages
- Both inside and outside handles can be electrically controlled via access systems or remote control[1][4].
- Non-handed design allows installation on left- or right-opening doors without modification[1].
- Automatic deadbolting when the door closes increases security with a 20 mm deadbolt throw[1][5].
- Integrated monitoring outputs provide real-time feedback on lock status for enhanced building management integration[1][4].
- The lock can be set to fail-locked or fail-unlocked operation depending on security requirements; mechanical override by cylinder ensures access during power outages[3][4].
Specifications
- The EL461 features a robust mortise lock case constructed to DIN standards for single-point locking in narrow profile doors. It uses Europrofile cylinders and straight spindle function.
- Carries certifications including EN14846 (electric locks) with fire approval; suitable for fire-rated interior doors within specified guidelines[3][5]. Operating temperature: -20°C to +60°C.

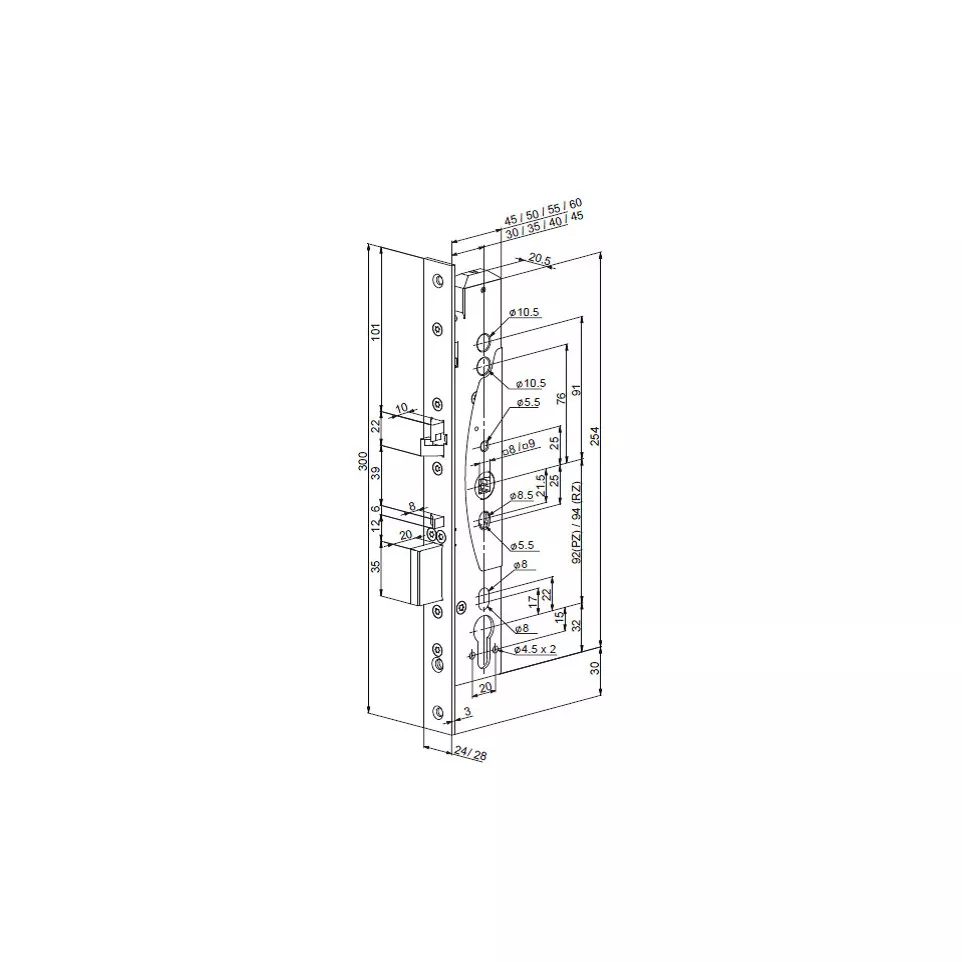

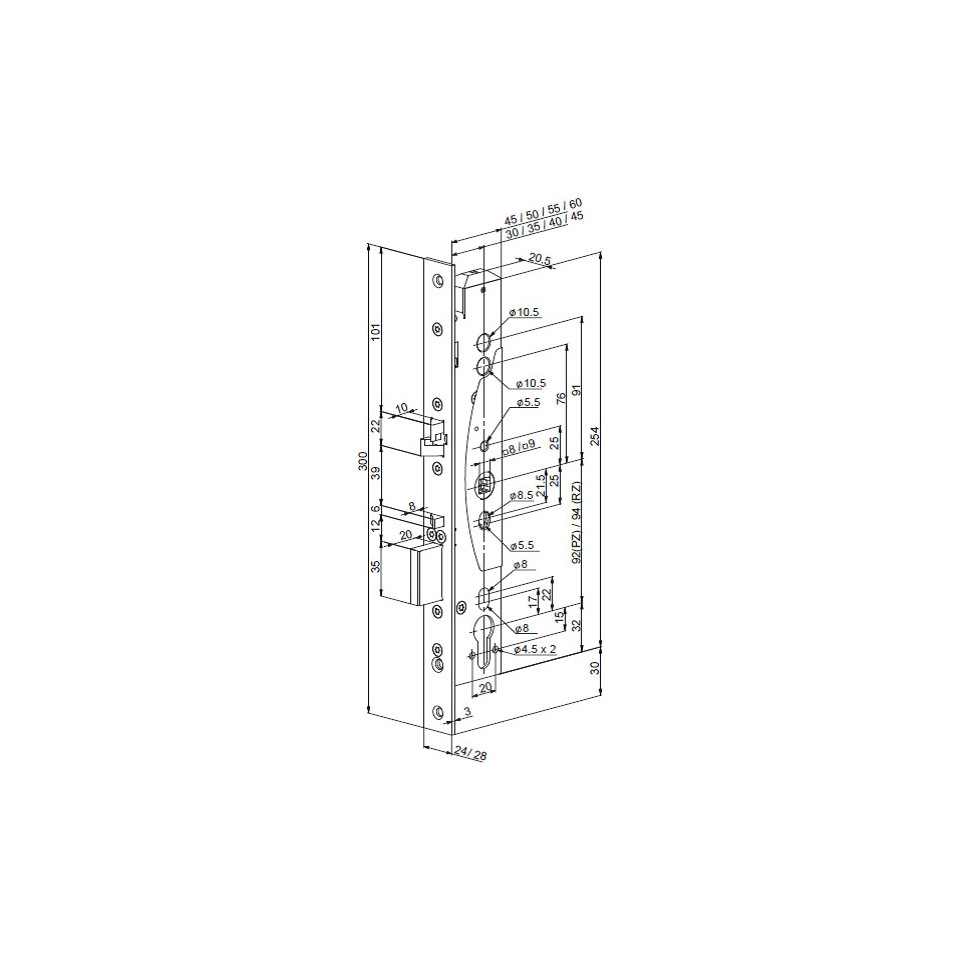

- Operates at input voltage of 12–24 VDC. Typical current consumption: idle at 12VDC/240 mA (max. 550 mA), idle at 24VDC/130 mA (max. 300 mA). Deadbolt throw: 20 mm; double action latch throw: 10 mm. Backset options: 30, 35, 40, or 45 mm; center distance: 92 mm[1][4][5]. Monitoring contacts rated up to 0.5 A/30 V AC/DC (10 W)[1].[9]
- Differentiating features include dual-sided electrical handle control (not suitable with door automation), changeable between fail-lock/fail-unlock modes directly on the lock case, integrated status indication outputs, mechanical override via key cylinder and suitability for both wooden and metal narrow-profile applications.[3][4]
How it works
The EL461 engages its inside and outside handles electronically using an access control system or remote command. When power activates the handle(s), pressing them retracts both the deadbolt and latch bolt simultaneously; if required, a key-operated cylinder provides emergency mechanical override.
