Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage
The Abloy EL520 motorized mortise lock is designed for secure access control in high-traffic wooden or metal doors, typically found in public buildings, commercial premises, hospitals, and educational facilities.
Advantages
- Enables convenient push/pull operation and supports integration with automated door systems for hands-free entry.
- Enhances security via a robust 20 mm deadbolt with dual-point locking and electric anti-tampering feature.
- Certified for fire (EN14846), emergency exit (EN179), and panic (EN1125) doors; suitable for demanding safety applications.
- Non-handed design allows installation on both left- or right-opening doors without additional configuration.
- If power fails during unlocking, the deadbolt automatically secures the door; manual override ensures continued access control.
Specifications

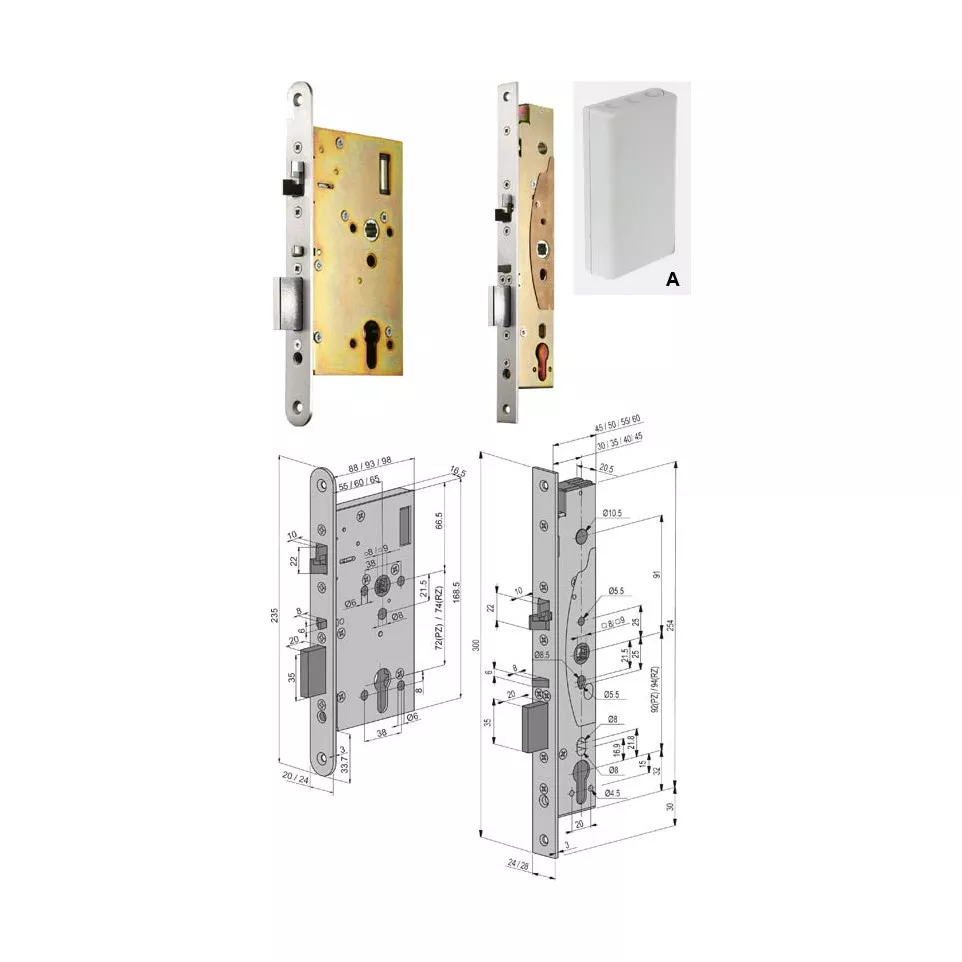

- Design: Mortise lockcase with Europrofile cylinder compatibility; double action latch and motor-driven deadbolt mechanism. Face plate: rounded shape, available widths of 20 mm or 24 mm; backset options include standard sizes such as 60 mm.
Lock dimensions: approximately 168.5 × 98 ×16.5 mm [lock body], face plate length up to ~235 mm.
Net weight: approx.1.15 kg [1][3][5]. - Durability & Certifications:
• Complies with EN14846 (electric locks), EN179 (exit devices), EN1125 (panic exit devices)
• Fire-rated when installed appropriately
• Operating temperature range: -20°C to +60°C
• Durable steel construction enhances resistance to wear and burglary attempts [1][3][9]. - Performance:
• Operating voltage:12–24 VDC /12–18 VAC (+15%/-10%)
• Current consumption at12 VDC—idle:80 mA, drive:450 mA, max.:1300 mA;
at24 VDC—idle:40 mA, drive:220 mA,max.:600mA
• Deadbolt throw of20mm; double action latch is also included.
• Monitoring contacts provide real-time status on bolt position, door status,and user interaction.
- Differentiating Features:
• Automated locking/unlocking via integrated motor
• Day/night modes for flexible security levels
• Mechanical key override provides backup in case of system failure
• Advanced monitoring outputs—door position,latch/bolt status,sabotage detection[1][3][7].
How it works
The EL520 unlocks electrically when triggered by an access control signal – retracting the deadbolt inside the case while releasing the latch for opening by a pull handle or automated operator. Mechanical override by key cylinder is always possible from outside while free egress is maintained from inside via handle operation. When closed again,the lock automatically throws out its deadbolt securing the door at two points[1][9].
