Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Product

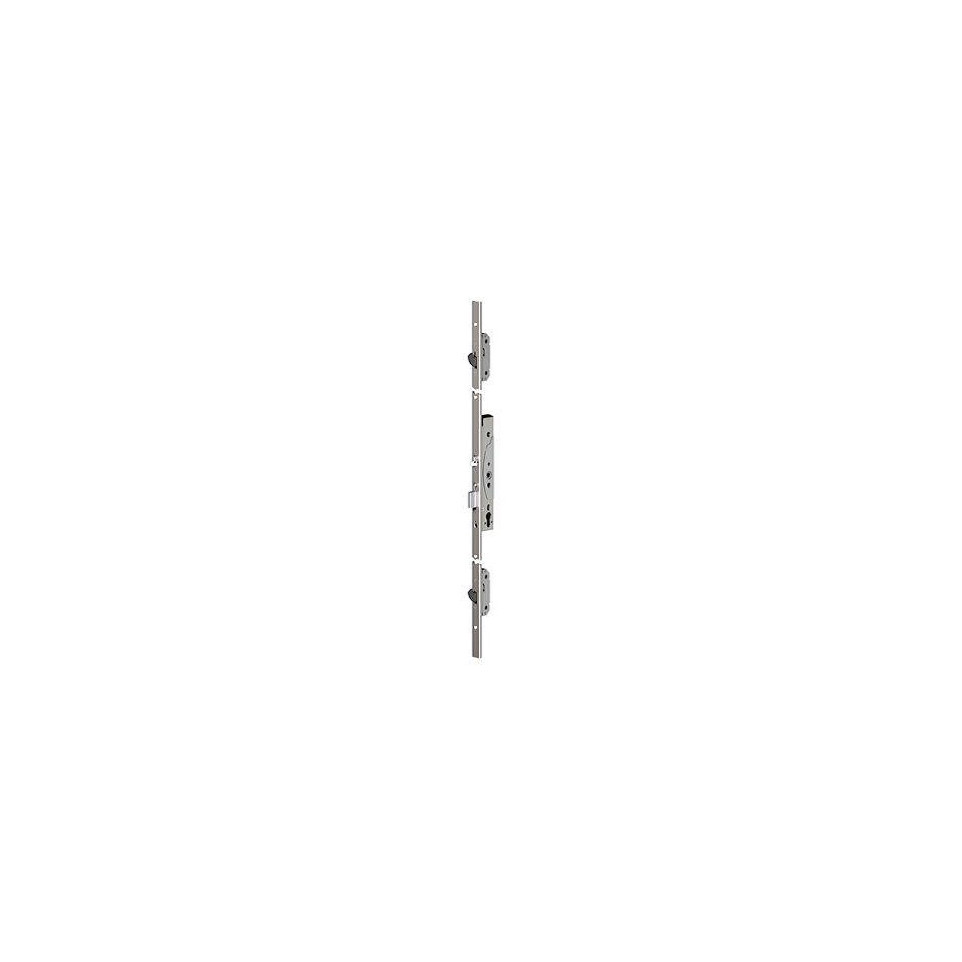

The Abloy MP420 motorized multipoint lock by Assa Abloy is designed for both exterior and interior doors requiring high security and advanced access control. It operates with various signal generators and is suitable for automatic door systems.
Specifications
- Materials and Technologies: Enclosed steel lock case (approx. 2 mm thick); reinforced, satin chrome-plated steel faceplate (6.5 mm); 3 mm chrome steel strike plate; nickel-plated steel deadbolt and hook bolts; tempered steel follower
- Mechanical Strength: Deadbolt throw 20 mm; multipoint hooks; lateral resistance up to 40 kN; certified up to 500,000 operating cycles
- Certifications and Standards: EN 12209 (mechanical security class 6), SKG*** (burglary resistance), EN 179 (emergency exit with handle), EN 1125 (panic exit with bar), CE, Benor/atg RF 30’/60’
- Design Features: Reversible (left/right) via Allen screw; euro-profile cylinder compatibility; panic function for quick egress; electrical operating voltage 12–24 V DC or 12–18 V AC (fail-secure)

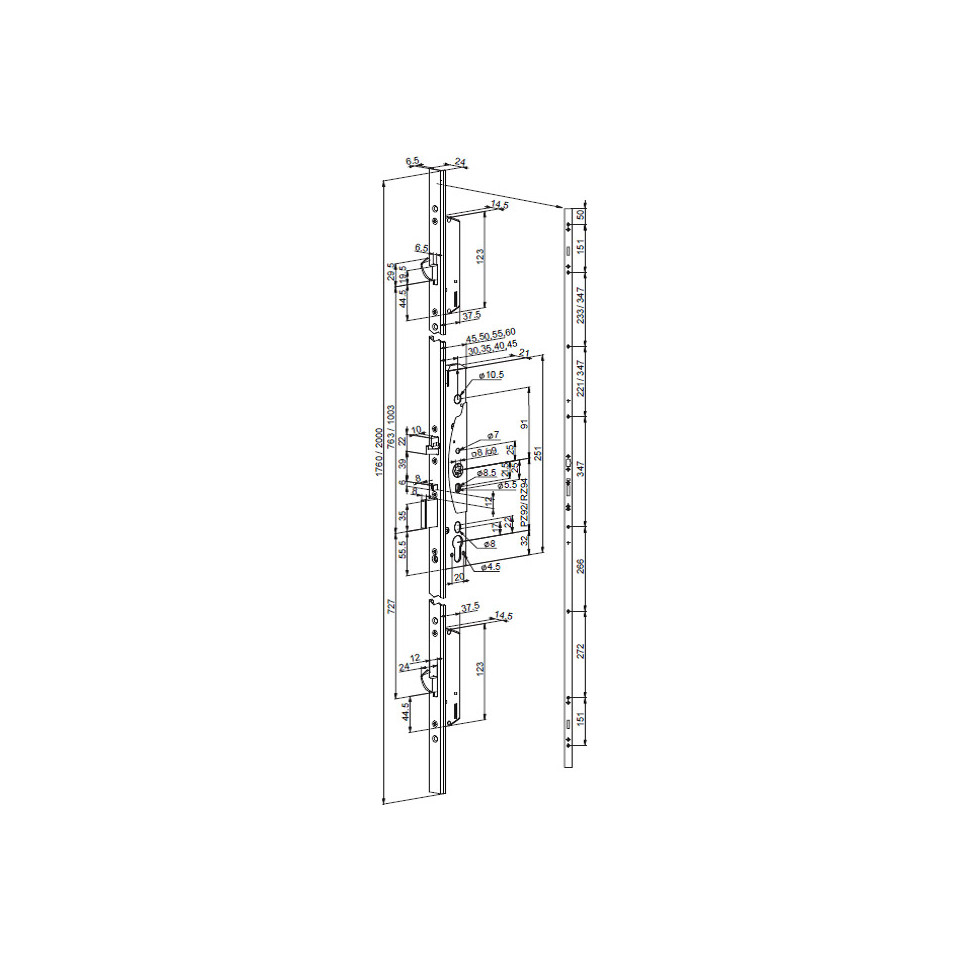

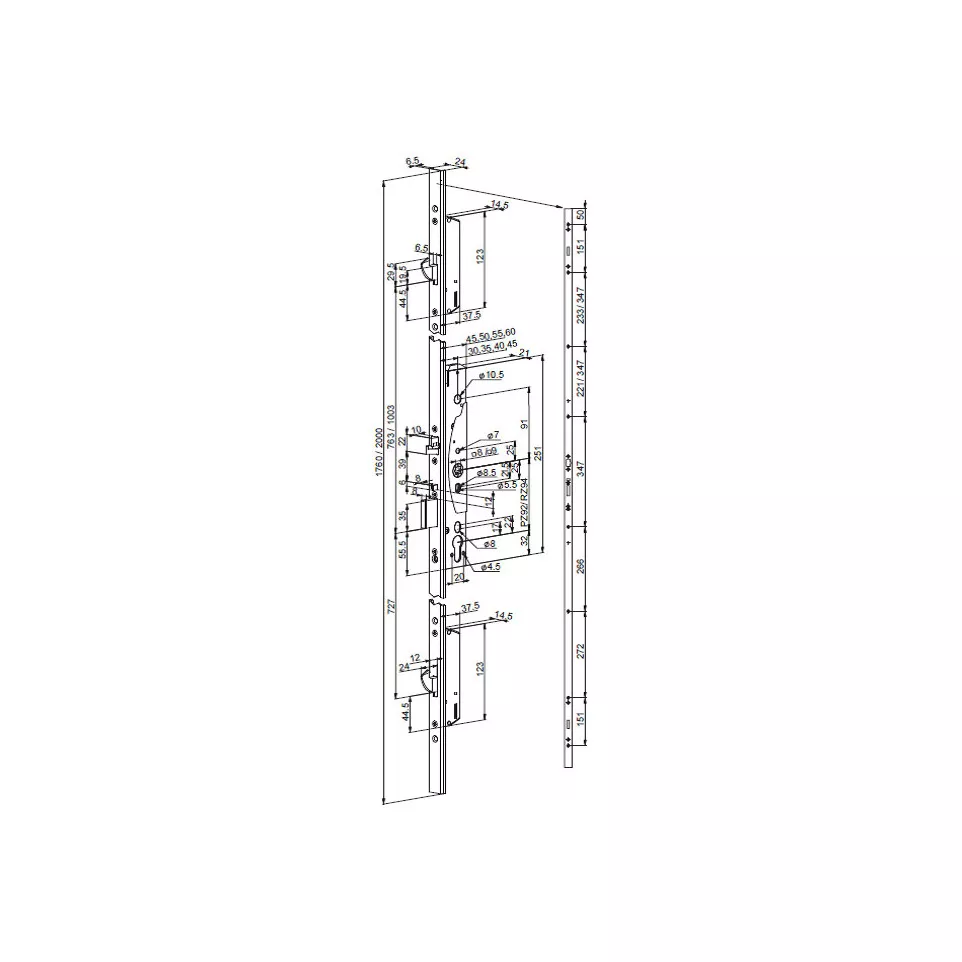

- Dimensions: Faceplate 1760/2000 × 24 × 6.5 mm; lock case 254 × 50 mm; backset 35 mm (available 30/40/45 mm); follower 9 mm (adapter 8 mm)
- Electrical Features: Operating current max 1.3 A (12V), 0.6 A (24V); signaling contacts for bolt, handle, cylinder, and door status; max output 0.8A at 30V AC/DC
- Environmental Range: -20°C to +60°C
Usage
The lock is controlled by pulse generators such as badge readers, keypads, key switches, or control buttons, and interfaces with an external control unit. Upon signal, the motor retracts the locking bolts for a programmable time (2–15 seconds). The system provides auto-locking of deadbolts upon door closure and maintains security even during power outages. Both mechanical key and panic bar/handle enable emergency egress at all times.
FAQ
-
Is the MP420 compatible with both left and right-handed doors?
Yes, the lock is fully reversible and can be set for left or right-hand operation using an Allen key. -
How is emergency exit assured in case of power failure?
The lock’s fail-secure mechanism and automatic deadbolt engagement ensure security, while the mechanical handle or key allows immediate exit. -
What access control devices can operate this motorized lock?
It accepts impulses from badge readers, keypads, key switches, command buttons, timers, or integration with automatic door openers. -
What standards does the MP420 meet for escape routes and security?
Certified to EN 12209 (class 6), SKG***, EN 179, and EN 1125, it is suitable for use on emergency and panic exit doors. -
Is real-time status information available for integration with building systems?
Yes, signaling outputs provide status of the bolt, handle, cylinder, and door, allowing integration with monitoring and alarm systems.
