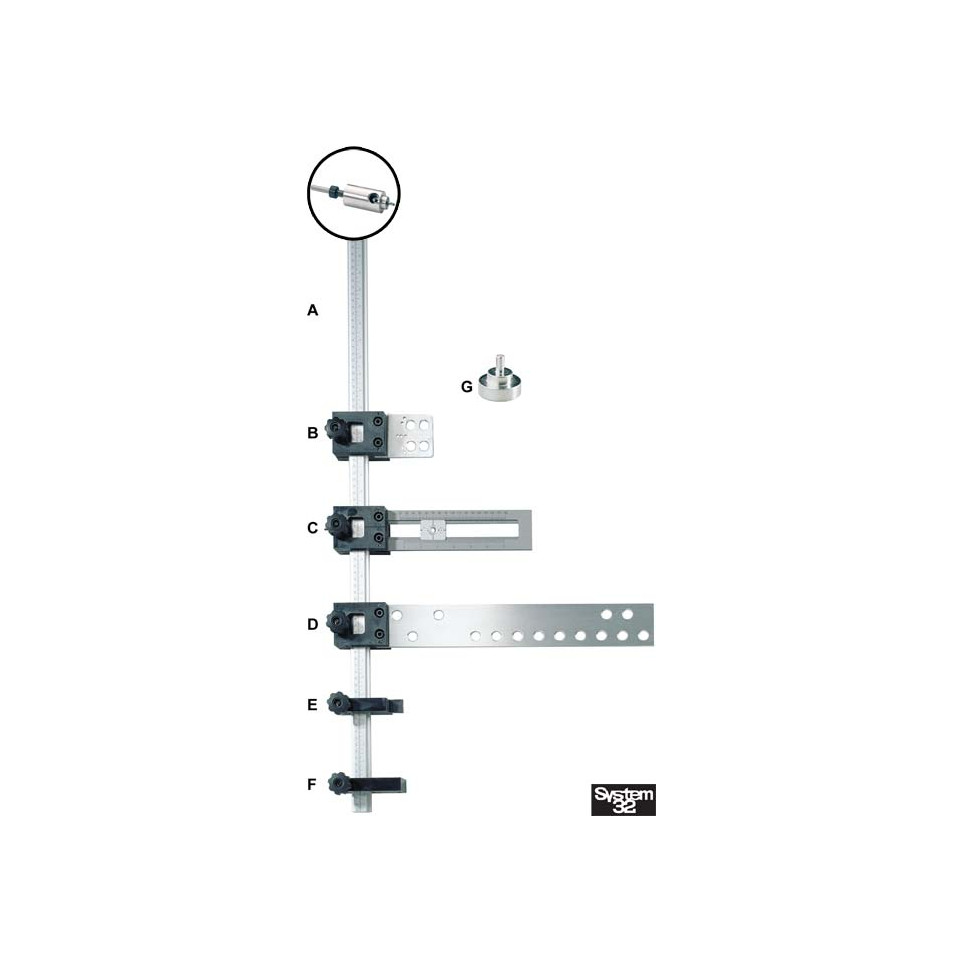

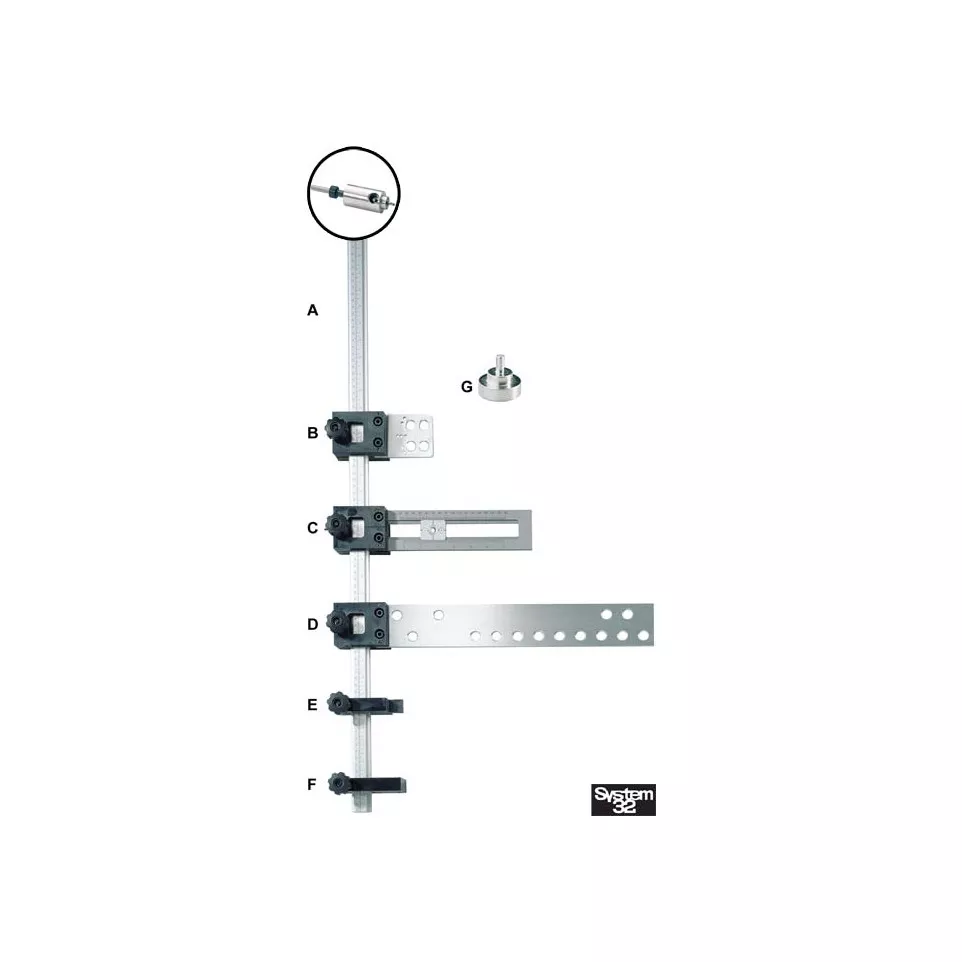

Accura Rail with Graduations 500mm per piece
€115.26
Usage
The kit is designed for precision drilling of holes for handles and knobs on cabinet doors, drawers, and furniture panels. It ensures accurate alignment and repeatability for both DIY users and professionals working with wood or composite furniture elements.
Advantages
- Enables precise positioning of drill holes, reducing installation errors
- Compatible with common drawer systems and handle layouts following the System 32 standard
- Saves time compared to manual measuring and marking methods
- Adjustable stops allow use on various cabinet sizes and designs
- A minor drawback: limited compatibility with highly customized hardware layouts outside industry standards
Specifications
- Main structure fabricated from robust metal alloys; includes precision-milled guide sleeves for drill bits
- Sleeve guides restrict drilling depth to prevent over-penetration through panel surfaces; meets typical workshop durability standards for repeated professional use
- Supports hole spacing according to System 32 (32 mm increments); scale markings ensure accuracy within ±0.5 mm per operation when properly set up; suitable panel thickness ranges from approximately 16 to over 22 mm depending on configuration used[3]
- Differentiating feature: can be quickly repositioned from one panel to another without resetting measurements, enhancing workflow efficiency during repeated installations[3]
How it works
The jig securely clamps onto the workpiece using adjustable stops. Users select the required position via integrated scales, then guide their drill bit through hardened sleeves that maintain perpendicularity and restrict depth. This process ensures consistently placed holes every time.
