Dr. Hahn Clamp Hinge for Aluminum Door Reynaers Profile 5.3 RC-System Raw for Painting / pc

Product

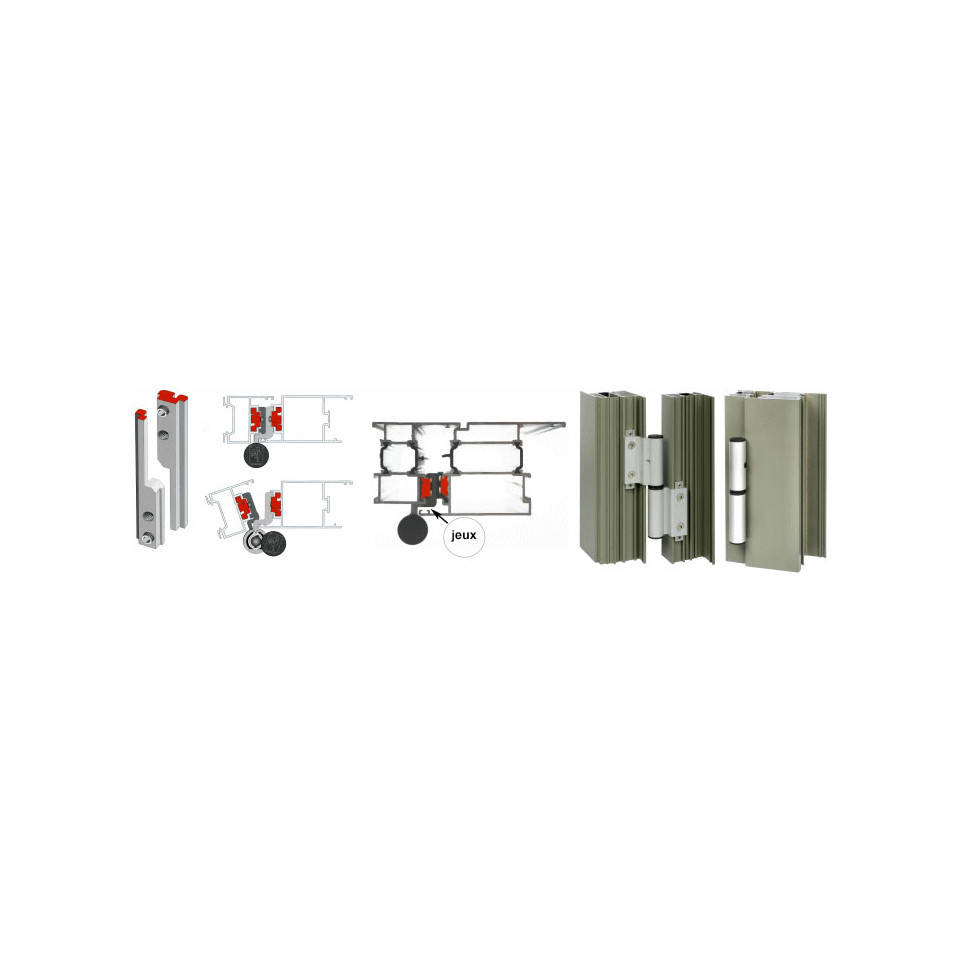

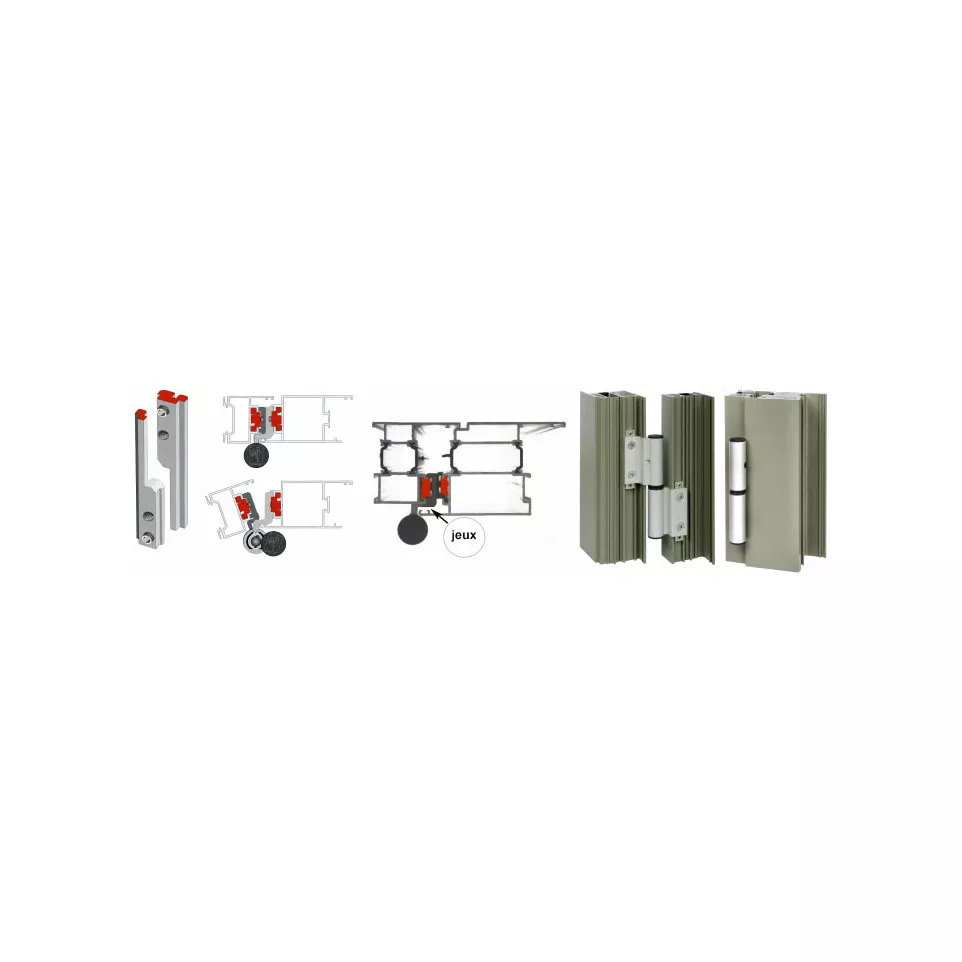

Dr. Hahn clamping hinge for quick, tool-free installation, specially designed for Reynaers and RC-System profiles on aluminum doors. Suitable for nearly all metal doors with compatible profile grooves, it offers a secure, clean, and efficient solution for professional door assembly.

Specifications

• Made from corrosion-resistant materials; hinge body and all fastening elements are stainless.
• Designed for a two-leaf configuration; supports door weights up to 80 kg using two hinges.
• Vertical adjustment on the mounted door: +4 mm; horizontal adjustment: ±1.5 mm.
• No play at the guide and adjustment elements; maintenance-free operation.
• Compatible with aluminum profile doors; bare finish ready for lacquering.

Usage

This clamping hinge is installed on metal doors without drilling or screwing, making assembly quicker and minimizing damage to the door profile. Once mounted, it allows precise horizontal and vertical adjustments for optimal alignment and ensures smooth, reliable, quiet door operation over time.

FAQ

1. Is drilling or screwing required for installation?
   No, the hinge clamps directly onto the profile, requiring no drilling or screwing.

2. What is the maximum door weight supported?
   Up to 80 kg per leaf using two hinges.

3. Can I adjust the hinge after installation?
   Yes, height can be adjusted by +4 mm and width by ±1.5 mm when the hinge is in place.

4. Is the hinge suitable for exterior doors?
   Yes, all materials are corrosion-resistant and suitable for demanding environments.

5. Does the hinge require maintenance?
   No, all moving parts are designed to be maintenance-free.
