Usage
This clamp-on hinge is engineered for mounting aluminum doors, specifically compatible with Van Beveren and Aliplast profiles. It is designed for use in residential or commercial settings where secure and adjustable door fitting is needed.
Advantages
- Compatible with common aluminum profiles such as Van Beveren and Aliplast ALU.
- Six-way adjustability enables precise alignment after installation.
- High corrosion resistance ensures reliable performance in various environments.
- Bearing points require no maintenance, reducing operational effort over time.
- Installation flexibility allows use on both left- or right-handed doors; minor drawback: load capacity depends on profile specifics.
Specifications
- The hinge body uses extruded natural anodized aluminum (EV1 finish) for durability and aesthetics.
- Complies with EN 1935:2002 (hinge class 14), indicating robust strength and high-quality manufacturing standards.
- The two-part version supports up to approximately 120–140 kg per door, while three-part versions allow a higher load capacity (up to about 220 kg), depending on the door profile design[3][5].
- Differentiators include horizontal adjustment of ±3 mm, height adjustment of +3/−1 to +3/−2 mm, sealing pressure adjustment of ±0.5 mm, and an opening angle exceeding 180°[5]. Maintenance-free operation due to self-lubricating bearing sleeves[3][5].
How it works

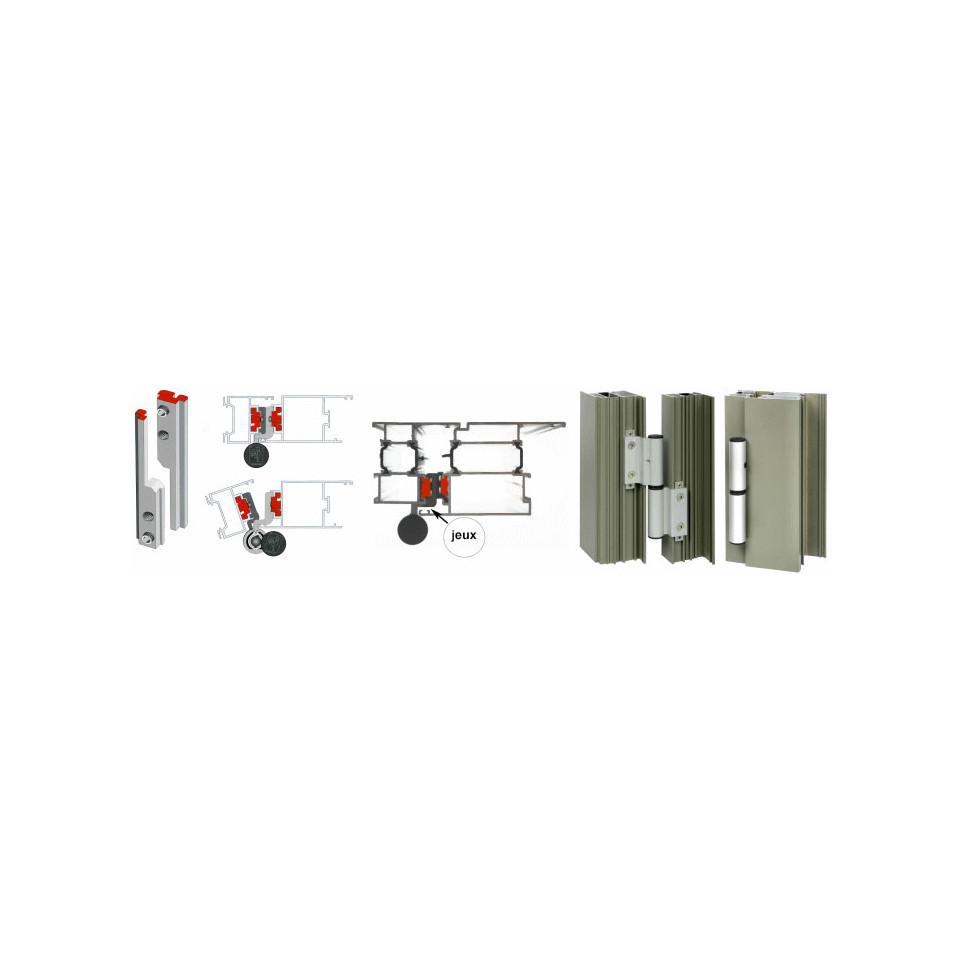

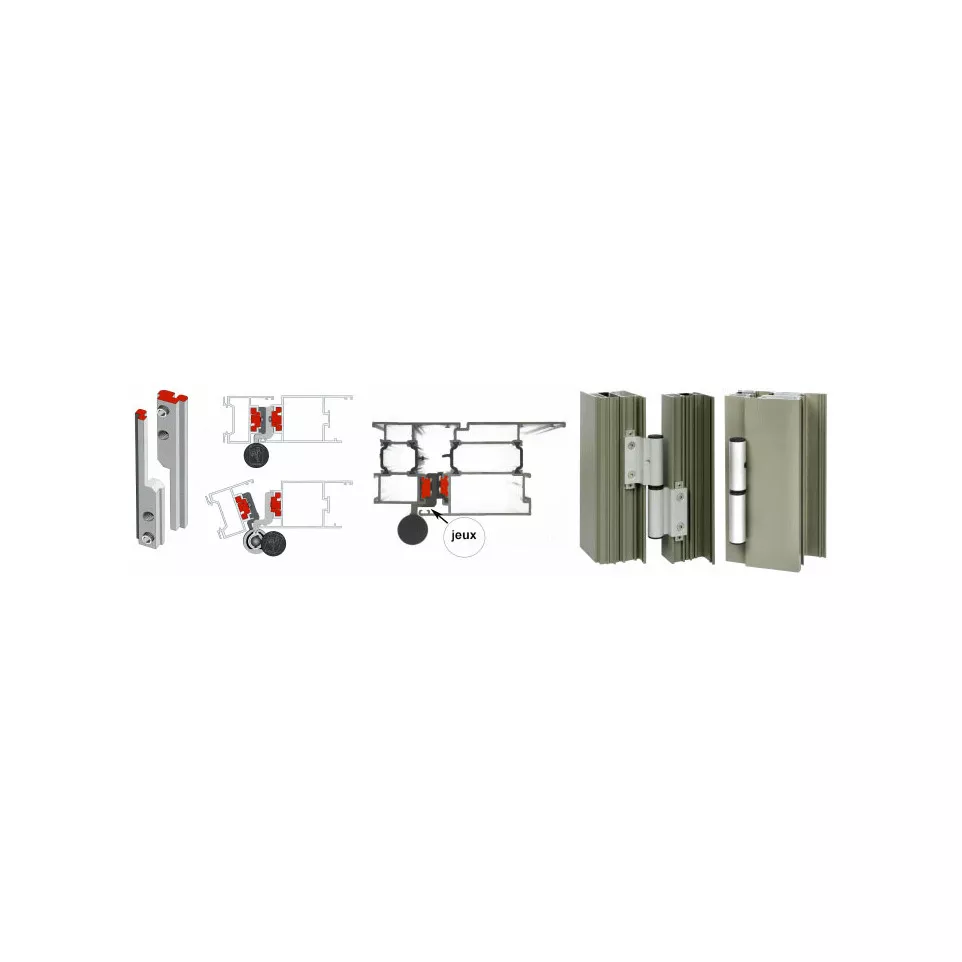

The hinge clamps directly onto the designated aluminum door profile using compatible fastening methods. Once mounted, the installer can finely adjust the horizontal position, height, and sealing pressure without removing the door leaf. This ensures a secure fit tailored to each installation scenario while requiring minimal maintenance during its service life[3][5].
