Dr. Hahn Clamp Hinge Profile 5.3 Reynaers RC-System ALU Natural EV1 per piece

Usage

The Paumelle à clamer Dr. Hahn for Reynaers and RC-System aluminium profiles is designed for mounting and adjusting aluminum doors in residential or commercial buildings, offering high durability and stable support.

Advantages

• Supports door weights up to 140 kg (for two-piece versions), meeting demanding application requirements.
• Adjustable in six directions while the door leaf is mounted, allowing precise fitting without dismantling the door.
• Manufactured from extruded aluminium with a durable natural EV1 anodized finish for corrosion resistance.
• Bearing point is maintenance-free—no lubrication required throughout its lifespan.
• Suits both left- and right-hinged doors, enhancing installation versatility; minor drawback: total capacity depends on profile design.

Specifications

• Design: Clamp hinge made of high-strength extruded aluminium, finished in natural EV1 anodization; includes synthetic sleeves at bearing points to reduce friction.[2][3]
• Sustainability: Standard version offers high corrosion resistance; maintenance-free operation. Certified to EN 1935:2002 (hinge class 14).
• Performance: Supports up to 140 kg per pair (two-piece); allows six-way adjustment—horizontal ±2.5 mm, vertical +3/–2 mm, sealing pressure ±0.5 mm.[2]
• Differentiating Features: Can be fitted while the door leaf remains mounted; compatible with common aluminum profile systems including Reynaers/RC-System; adaptable for inward or outward opening doors.[3]

How it works

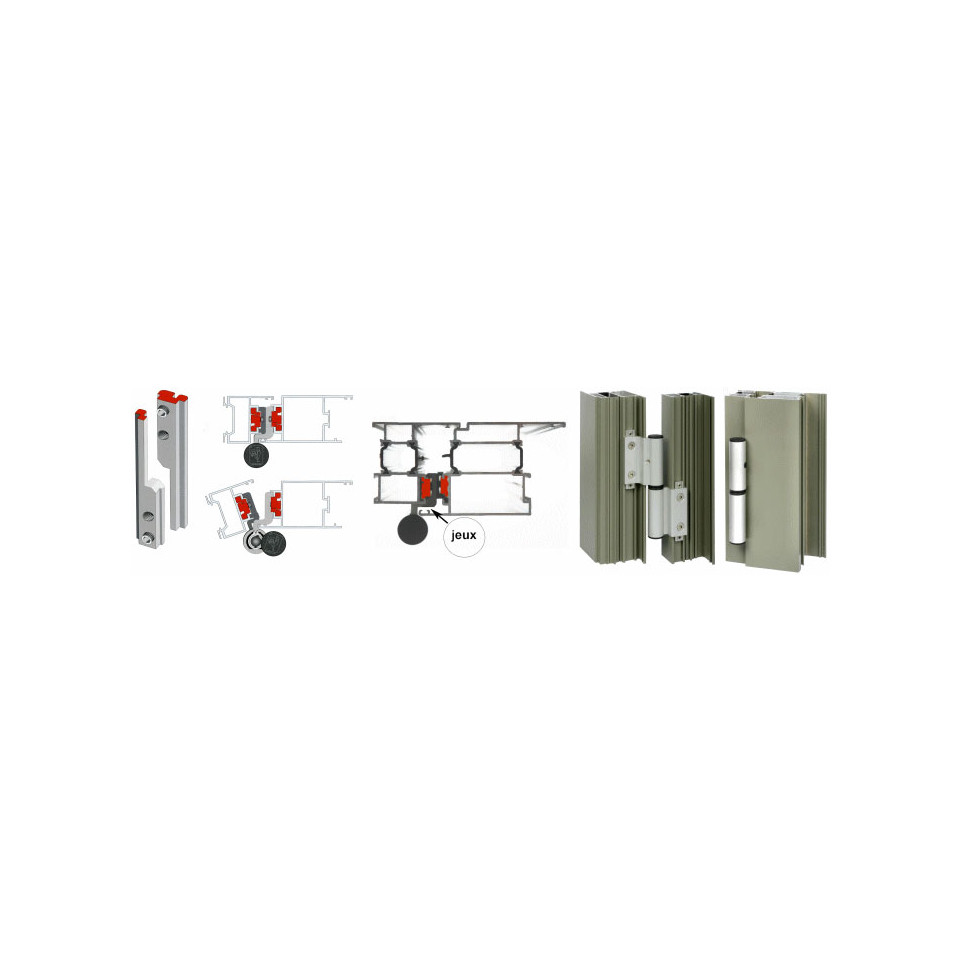

This clamp hinge attaches directly to compatible aluminum profiles using dedicated fasteners. Installers can finely adjust alignment in multiple directions without removing the door leaf, ensuring optimal fit and smooth operation throughout years of use.[2][3]
