Usage
The Paumelle à clamer Dr. Hahn for Aliplast profiles with a 16mm groove is designed for mounting aluminum doors in residential or commercial environments, offering secure and adjustable hinge functionality.
Advantages
- Six-directional adjustment enables precise door alignment without removing the leaf.
- Supports heavy loads—up to 140 kg (two-part version) depending on the door profile.
- Manufactured from extruded aluminum for high structural strength and corrosion resistance.
- Maintenance-free bearing point requires no lubrication during service life.
- Available in RAL 9016 (white) finish, ensuring compatibility with modern architectural styles.
Specifications
- The hinge body is made from extruded aluminum; fastening is achieved directly in the frame and door section for robust connection.[5]
- Carries CE certification according to EN1935:2002, hinge class 14.[3][5]
- The two-part model handles up to a maximum of 120–140 kg per pair; opening angle exceeds 180°.[5]
- Suits left- or right-handed installation; horizontal (+/–3 mm), vertical (+3/–1 mm), and sealing pressure (±0.4 mm) adjustments are easily accessible when installed.[5]

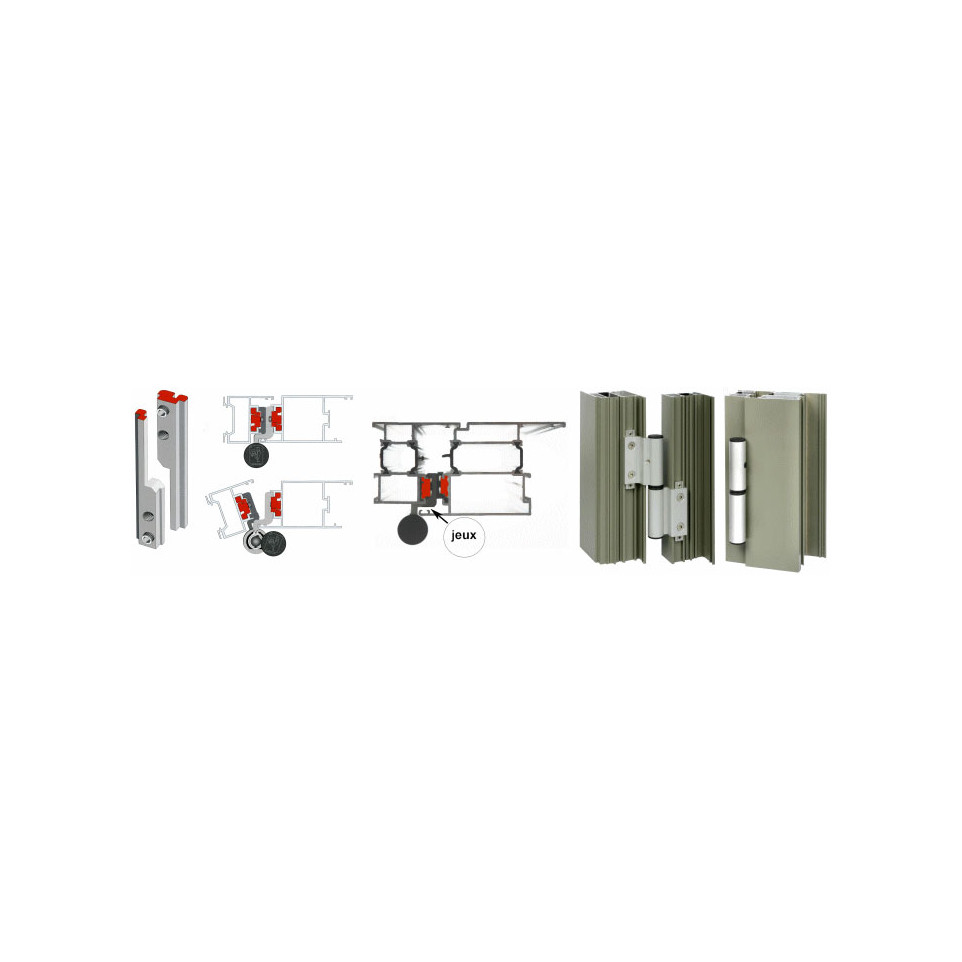

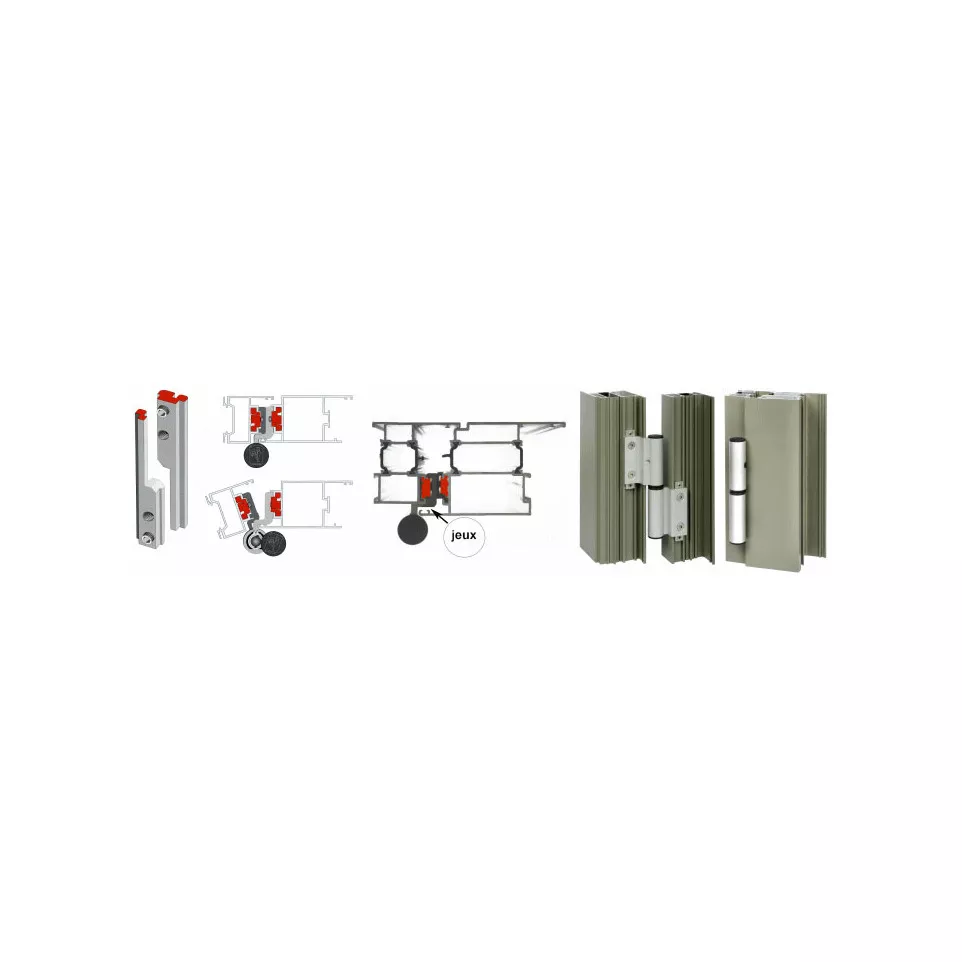

How it works
This clamp-on butt hinge mounts inside an Aliplast aluminum profile’s groove. Once positioned, its multi-directional adjustments allow installers to finely align the door leaf while it remains attached, optimizing fit and function over time without maintenance interruptions.[4][5]
