Dr. Hahn clamp hinge for 16 mm groove profile Aliplast raw for painting / pc

Usage

The Dr. Hahn clamp-on hinge for 16mm Aliplast groove is designed for mounting aluminum doors without drilling, offering a reliable solution for residential and commercial metal joinery applications.

Advantages

• Quick installation with two-part clamp system—no drilling required
• Supports door leaves up to 80 kg (with two hinges)
• Horizontal and vertical adjustment possible without unhinging the door (+4 mm height, ±1.5 mm lateral)
• Durable, corrosion-resistant aluminum construction ensures longevity and minimal maintenance
• Suits various European profile grooves—compatible with left or right-hand opening doors

Specifications

• Design & Materials: Extruded raw aluminum hinge body and stainless fixing elements ready for painting or anodizing as required.
• Lifespan & Compliance: Maintenance-free bearing points, high stability even under intensive use, CE-certified (upon request) meeting EN1935 standards as applicable.
• Performance: Recommended max. door leaf weight: up to 80 kg using two hinges per door set.
  Adjustment range: +4 mm vertical, ±1.5 mm horizontal on hinged leaf.
  Suitable for profiles with a standardized groove of 16 mm.
• Differentiators:  - Modular clamping system simplifies on-site retrofitting or additional installation
  - All mounting accessories included
  - Available in raw finish to be lacquered according to project needs

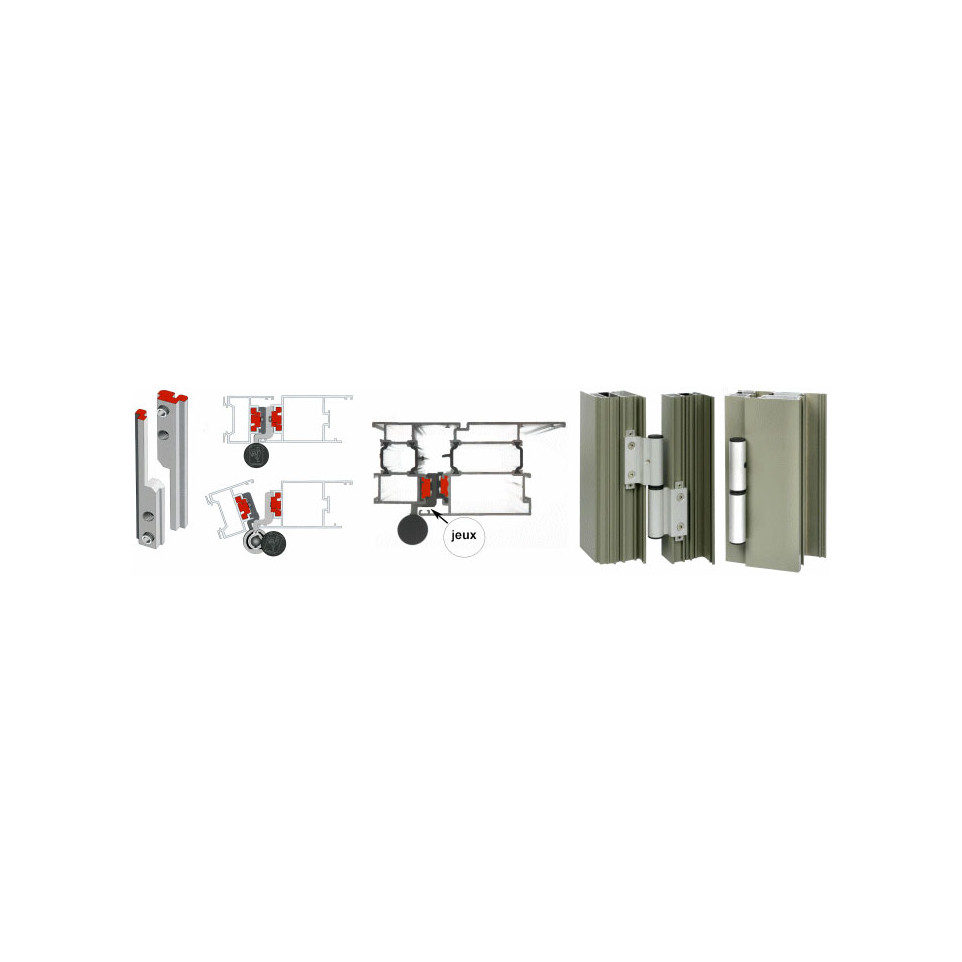

How it works

This hinge clamps directly onto the designated profile groove using a robust dual-part mechanism. Adjustments in position can be performed by one person from the installed side—without removing the door—ensuring optimal alignment and reliable daily performance.
