Product

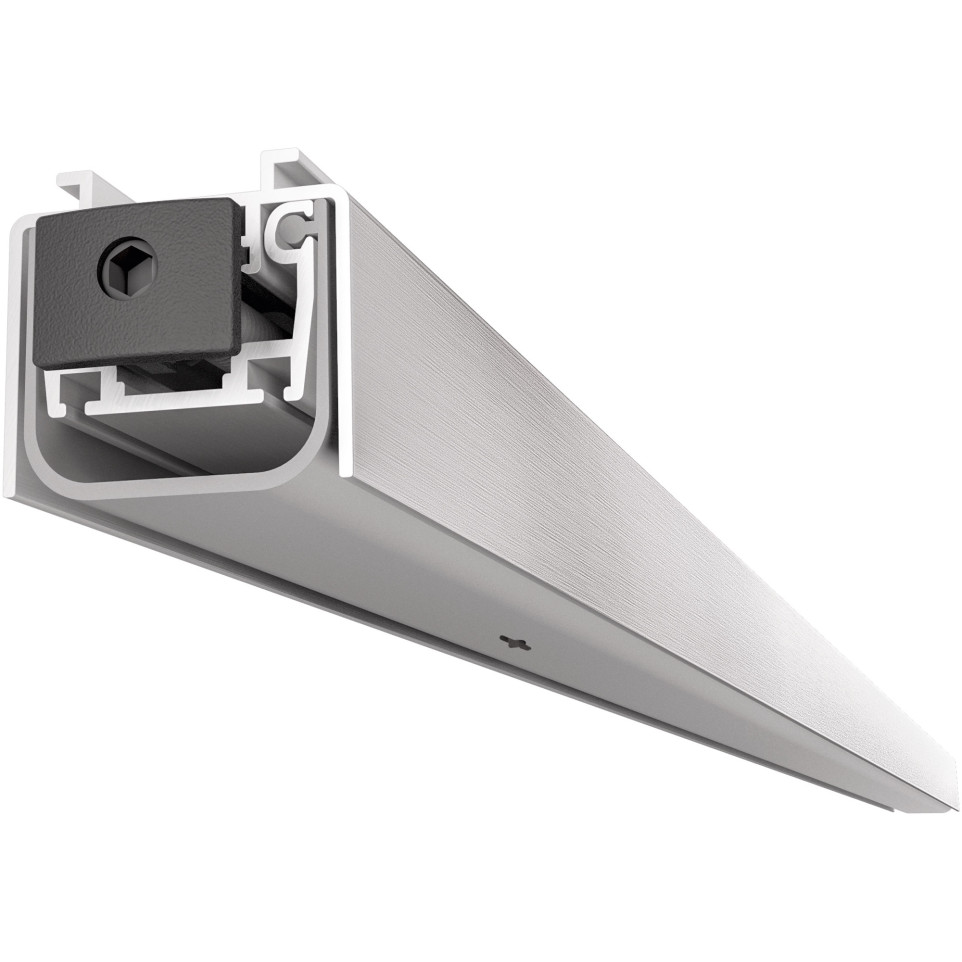

The CCE ALU-EURO 2520 is an automatic door bottom seal designed for PVC, aluminium, and armoured doors, providing effective draught and noise insulation across a 430 mm length.
Specifications
- Constructed from aluminium profile with a rigid nylon linkage system reinforced with fibreglass for uniform pressure distribution
- Mono-extruded thermoplastic seal made from fire-retardant material for enhanced safety compliance
- Push-button actuator in rounded-head nylon, adjustable with a 3 mm hex key
- Includes lateral mounting brackets for secure installation
- Maximum shortening capacity of 110 mm to accommodate various door widths
- Compatible with PVC, aluminium, and armoured door types
Usage
When the door closes, the push-button compresses against the door frame or an external stop, activating the rigid linkage rods. These rods lower the internal mobile profile in a guillotine motion — first on the button side, then on the opposite side — until the seal fully contacts the floor along the entire door width.
FAQ
- Which door types is the ALU-EURO 2520 compatible with? — It is designed for use with PVC, aluminium, and armoured doors.
- What is the standard length of this door bottom seal? — The seal measures 430 mm per piece, with a maximum shortening allowance of 110 mm.
- How is the push-button actuator adjusted? — The nylon push-button with a rounded head is adjustable using a standard 3 mm hexagonal key.
- Is the seal material fire-retardant? — Yes, the seal is made from a mono-extruded fire-retardant thermoplastic material.
- Are mounting accessories included with the product? — Yes, lateral mounting brackets are supplied with the unit for straightforward installation.
