Product

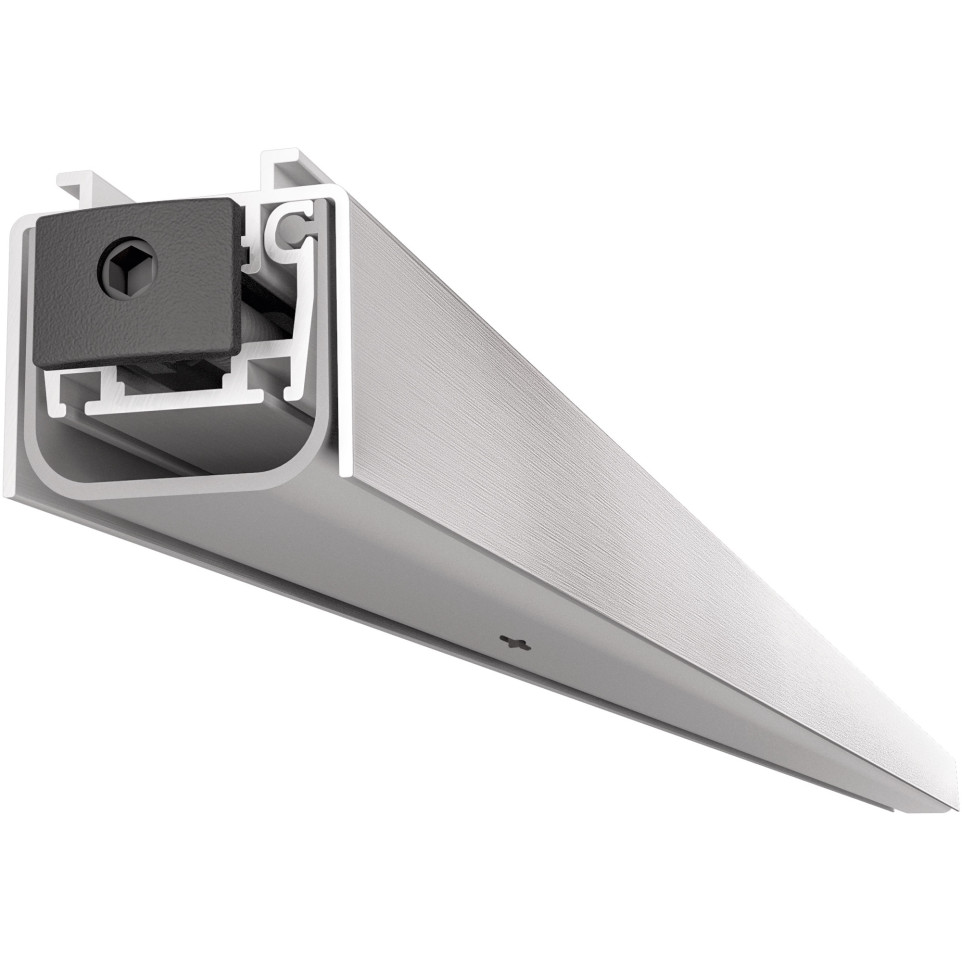

The ALU-EURO 2520 is an automatic door bottom seal designed for PVC, aluminium, and armoured doors, providing effective draught and sound insulation along the full door width.
Specifications
- Manufactured with a rigid linkage system made from fibreglass-reinforced nylon for maximum efficiency and uniform pressure across all floor types
- Single-extruded thermoplastic fire-retardant seal for reliable, long-lasting performance
- Nylon push button with rounded head, adjustable using a 3 mm hex key
- Supplied with lateral mounting brackets for secure installation
- Maximum shortening capacity of 150 mm to accommodate various door widths
- Length: 1430 mm per piece
- Brand: CCE | Reference: 195454
Usage
When the door closes, the push button compresses against the door frame or an external stop, activating the fibreglass-reinforced nylon linkages. This triggers a guillotine-style downward movement of the internal mobile profile, first on the button side then on the opposite side, until the seal fully contacts the floor surface.
FAQ
-
Which door types is the ALU-EURO 2520 compatible with? — It is designed for use with PVC, aluminium, and armoured doors.
-
How is the push button adjusted? — The nylon push button with a rounded head is adjustable using a standard 3 mm hexagonal key.
-
Can the seal be cut to fit a shorter door? — Yes, the profile can be shortened by a maximum of 150 mm to match the required door width.
-
What type of seal material is used? — The seal is made from a single-extruded, fire-retardant thermoplastic material, ensuring durability and safety compliance.
-
Is hardware included for installation? — Yes, lateral mounting brackets are supplied with the product to facilitate straightforward installation.
