Product

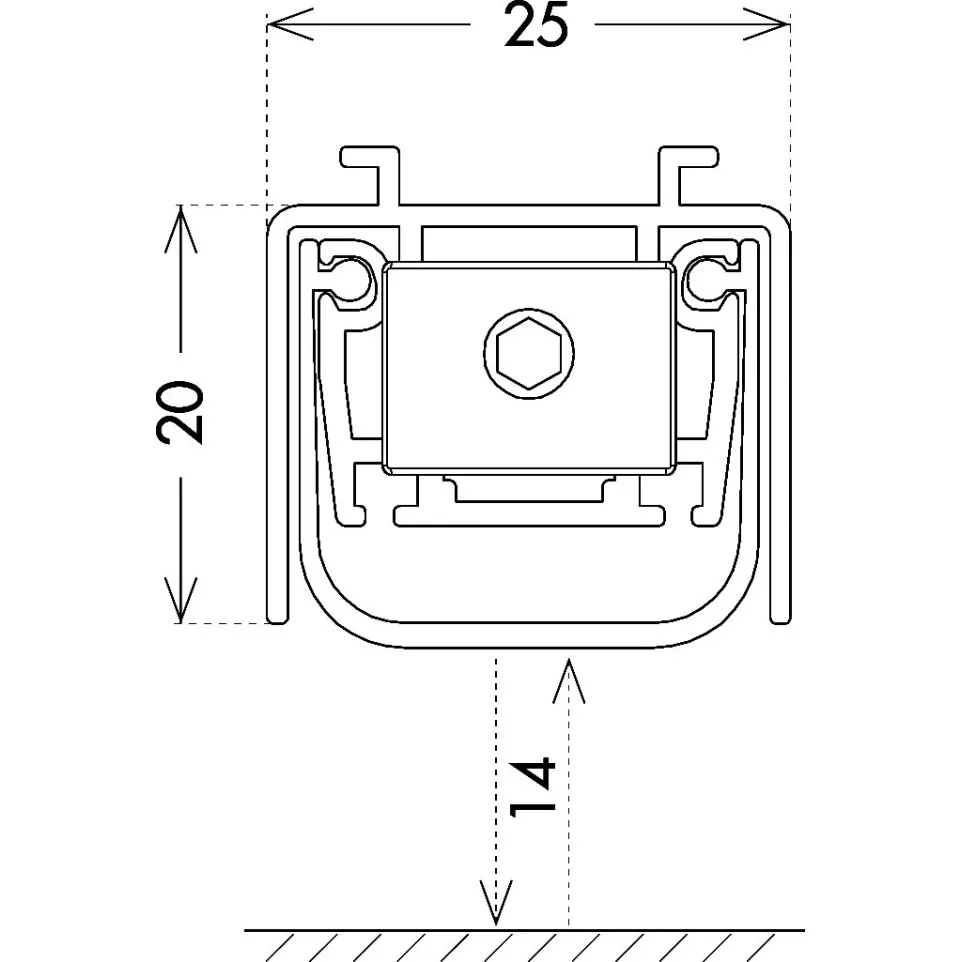

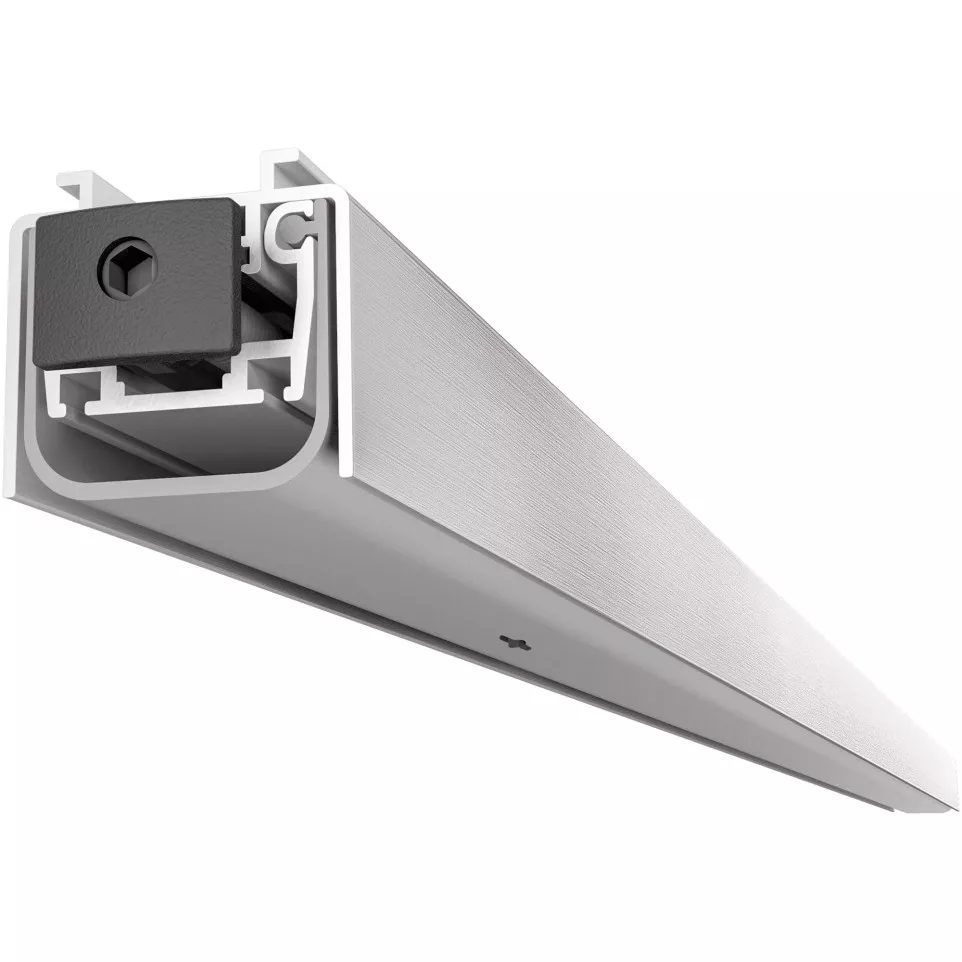

The CCE ALU-EURO 2520 is an automatic door bottom seal designed for PVC, aluminium, and armoured doors, providing effective draught and noise insulation across a 1030mm length.
Specifications
- Constructed from extruded aluminium profile with a rigid nylon linkage system reinforced with fibreglass for uniform pressure distribution
- Single-extruded thermoplastic seal made from fire-retardant material, ensuring compliance with safety standards
- Push-button actuator features a rounded nylon head, adjustable with a 3mm hex key
- Supplied with lateral mounting brackets for straightforward installation
- Maximum shortening capacity of 150mm to accommodate various door widths
- Compatible with PVC, aluminium, and armoured door types
Usage
When the door closes, the push-button compresses against the door frame or an external stop, activating the rigid linkage rods. These rods lower the internal mobile profile in a guillotine motion, first on the button side then the opposite side, pressing the seal firmly against the floor along the full door width.
FAQ
- Which door types is the ALU-EURO 2520 compatible with? — It is designed for use with PVC, aluminium, and armoured doors.
- Can the seal length be adjusted? — Yes, the profile can be shortened by a maximum of 150mm to fit the required door width.
- How is the push-button actuator adjusted? — The rounded nylon push-button head is adjustable using a standard 3mm hexagonal key.
- Is the seal material fire-retardant? — Yes, the seal is made from a single-extruded fire-retardant thermoplastic material.
- What fixings are included with the product? — Lateral mounting brackets are supplied with the product to facilitate secure installation.
