Product

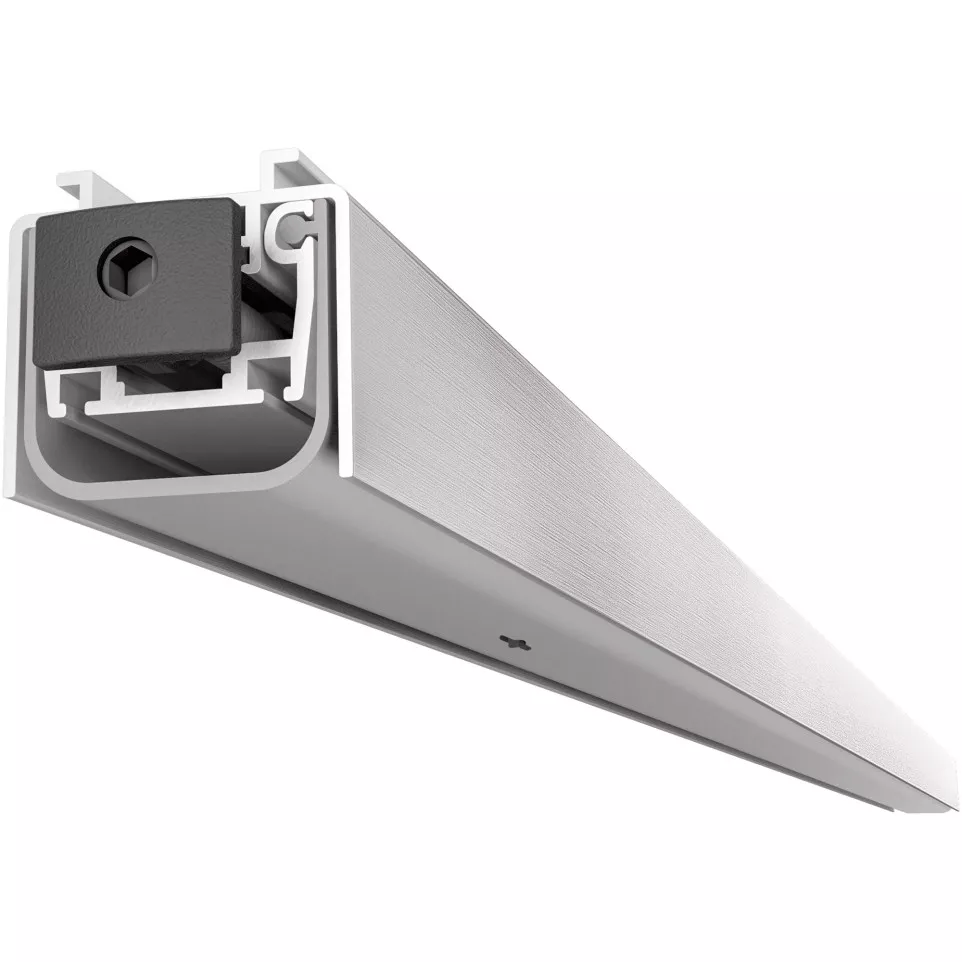

The CCE ALU-EURO 2520 is an automatic door bottom seal designed for PVC, aluminium, and armoured doors, providing effective draught and sound insulation at the base of the door.
Specifications
- Constructed from aluminium profile with a reinforced fibreglass and nylon rigid linkage system for consistent, uniform pressure across the full door width
- Sealing strip made from mono-extruded fire-retardant thermoplastic material
- Push button in rounded-head nylon, adjustable with a 3 mm hex key
- Supplied with lateral mounting brackets for secure installation
- Maximum shortening capacity of 150 mm
- Length: 530 mm per piece
- Compatible with PVC, aluminium, and armoured doors
Usage
When the door closes, the push button contacts the door frame or an external stop, activating the rigid nylon linkages. These drive the internal mobile profile downward in a guillotine motion, first on the button side then the opposite side, pressing the seal firmly against the floor along the full door length.
FAQ
-
Which door types is the ALU-EURO 2520 compatible with? — It is designed for use with PVC, aluminium, and armoured doors.
-
Can the push button be adjusted on-site? — Yes, the nylon push button with a rounded head is adjustable using a standard 3 mm hexagonal key.
-
How is the seal fixed to the door? — The seal is installed using lateral mounting brackets supplied with the product.
-
Can the profile be cut to fit a narrower door? — Yes, the profile can be shortened by a maximum of 150 mm to adapt to the required door width.
-
What material is the sealing strip made from? — The sealing strip is mono-extruded from a fire-retardant thermoplastic material, ensuring durability and safety compliance.
