Product

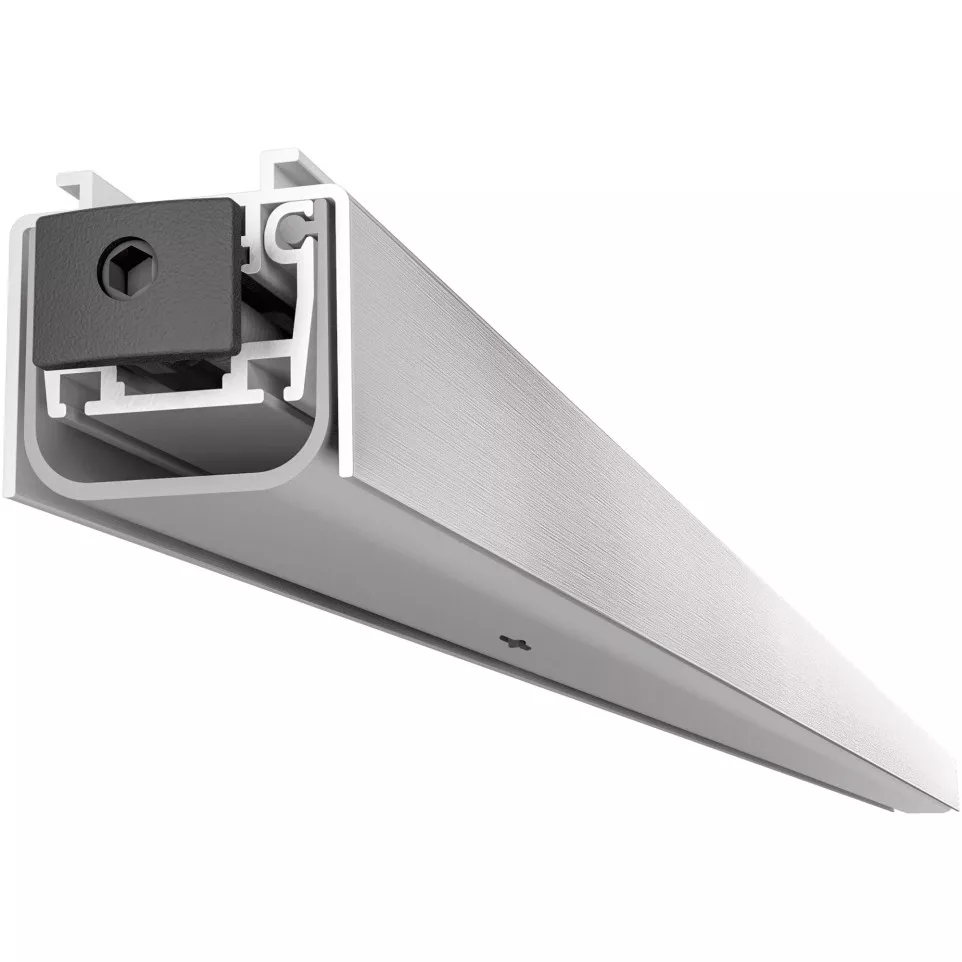

The ALU-EURO 2520 is an automatic door bottom seal designed for PVC, aluminium, and armoured doors, providing effective draught and noise insulation along the full door width.
Specifications
- Constructed with a rigid nylon linkage system reinforced with fibreglass for uniform pressure distribution across all floor types
- Mobile internal profile moves in a guillotine action, ensuring consistent contact with the floor surface along the entire door length
- Push button in nylon with a rounded head, adjustable using a 3 mm hex key
- Single-extruded fire-retardant thermoplastic seal for reliable performance and safety compliance
- Supplied with lateral mounting brackets for straightforward installation
- Maximum shortening capacity of 150 mm
- Available in 930 mm length per piece
- Brand: CCE | Reference: 195449
Usage
When the door closes, the push button compresses against the door frame or an external stop, activating the rigid linkage rods. These rods lower the internal mobile profile in a guillotine motion — first on the button side, then on the opposite side — until the seal makes full contact with the floor, closing the gap completely.
FAQ
- Which door types is the ALU-EURO 2520 compatible with? — It is designed for use with PVC, aluminium, and armoured doors.
- How is the push button adjusted? — The nylon push button with a rounded head is adjustable using a standard 3 mm hexagonal key.
- Can the seal be shortened to fit narrower doors? — Yes, the profile can be shortened by a maximum of 150 mm to accommodate different door widths.
- What material is the seal made from? — The seal is made from a single-extruded fire-retardant thermoplastic material, offering both flexibility and safety.
- Is hardware included for installation? — Yes, lateral mounting brackets are supplied with the product to facilitate secure and straightforward fitting.
