Product

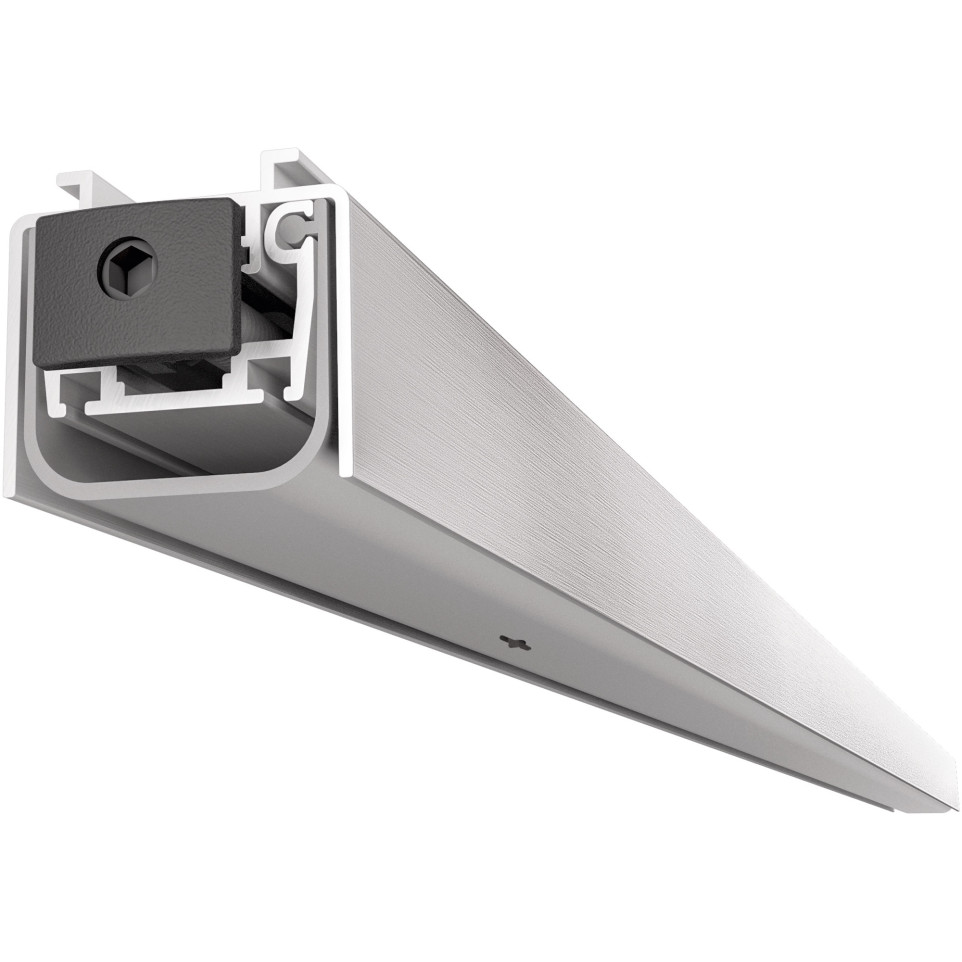

The ALU-EURO 2520 is an automatic door bottom seal designed for PVC, aluminium, and armoured doors, providing effective draught and sound insulation across a 1130mm length.
Specifications
- Manufactured with a rigid linkage system made from fibreglass-reinforced nylon for maximum efficiency and uniform pressure across all floor types
- Single-extruded thermoplastic fire-retardant seal for enhanced safety compliance
- Rounded-head nylon push button, adjustable with a 3mm hex key
- Includes lateral mounting brackets for secure installation
- Maximum shortening capacity of 150mm to accommodate various door widths
- Guillotine-action drop mechanism ensures full-length floor contact when the door closes
Usage
When the door closes, the push button compresses against the door frame or an external stop, activating the fibreglass-reinforced nylon linkage rods. These rods drive the internal mobile profile downward in a guillotine motion, first on the button side then on the opposite side, until the seal fully contacts the floor along the entire door length.
FAQ
- Which door types is the ALU-EURO 2520 compatible with? — It is designed for use with PVC, aluminium, and armoured doors.
- What is the length of this door bottom seal? — The seal measures 1130mm per piece, with a maximum shortening allowance of 150mm.
- How is the push button adjusted? — The nylon push button with a rounded head is adjustable using a standard 3mm hexagonal key.
- Is the seal material fire-retardant? — Yes, the seal is made from a single-extruded fire-retardant thermoplastic material.
- Are mounting accessories included with the product? — Yes, lateral mounting brackets are supplied with the seal for straightforward installation.
