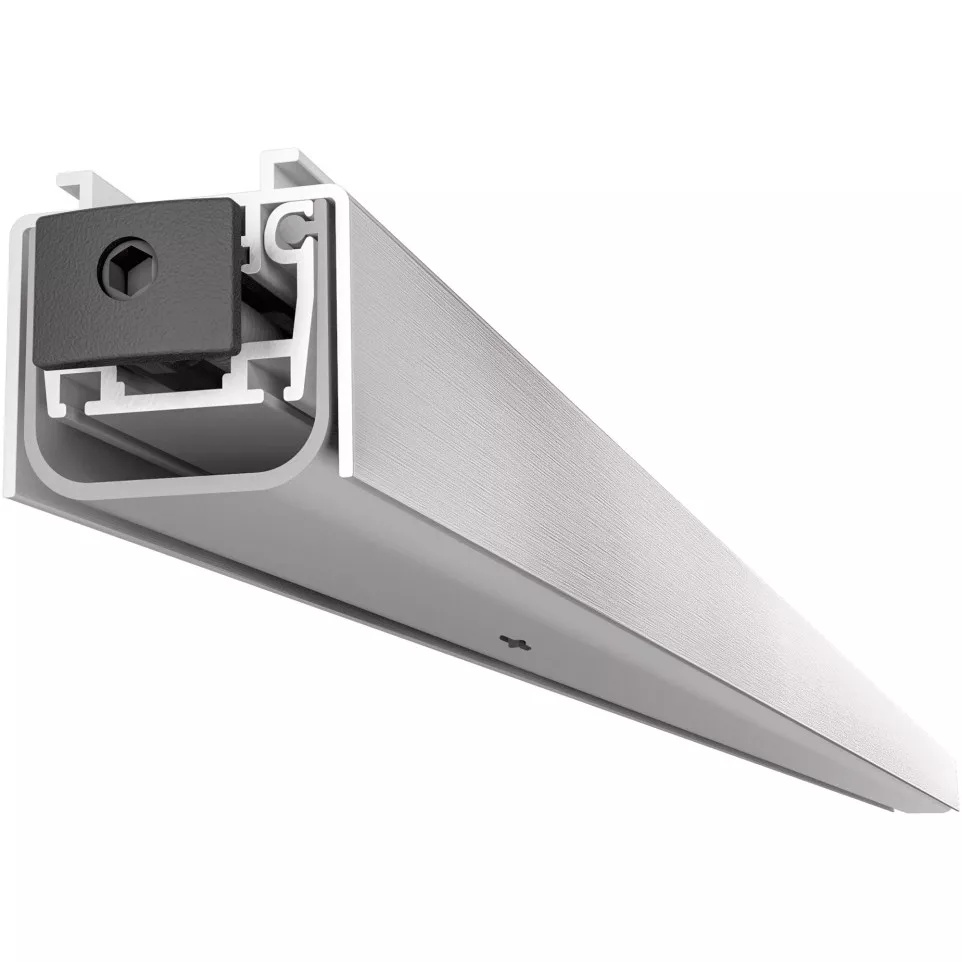

Automatic ALU-EURO 2520 baseboard, 730mm, by CCE, designed for professional door sealing in commercial and residential environments. Suitable for PVC, aluminum, and armored doors, it provides precise floor sealing for enhanced insulation and comfort.
Specifications
- Features a system of rigid nylon connecting rods reinforced with fiberglass for maximum efficiency and uniform pressure on all flooring.
- Mobile internal profile actuated by a push button; thermoplastic fire-resistant mono-extruded sealing gasket.
- Adjustable push button head in rounded nylon, modifiable with a 3 mm hex key.
- Lateral bracket fixation, supporting up to 150 mm maximum shortening.
- Designed for durability and consistent sealing over repeated use.
Usage
When the door is closed, the integrated push button presses against the frame or an external stop, activating the fiberglass-reinforced rods. This causes the internal movable profile to drop in a guillotine-like motion, sealing the gap between the door and floor along the entire length, effectively preventing drafts, dust, and noise penetration.
FAQ
-
What door types is this baseboard compatible with?
It is compatible with PVC, aluminum, and armored doors.
-
How is the sealing pressure distributed?
The reinforced nylon and fiberglass rod system ensures equal pressure and effective sealing across the entire baseboard length.
-
How is the product adjusted for installation?
The push button can be fine-tuned with a 3 mm hex key, and the baseboard can be shortened by up to 150 mm.
-
What material is used for the seal?
The sealing joint is made of a mono-extruded, flame-resistant thermoplastic.
-
How is the baseboard installed?
Installation is performed using lateral mounting brackets that provide secure fixation to the door.
