Product

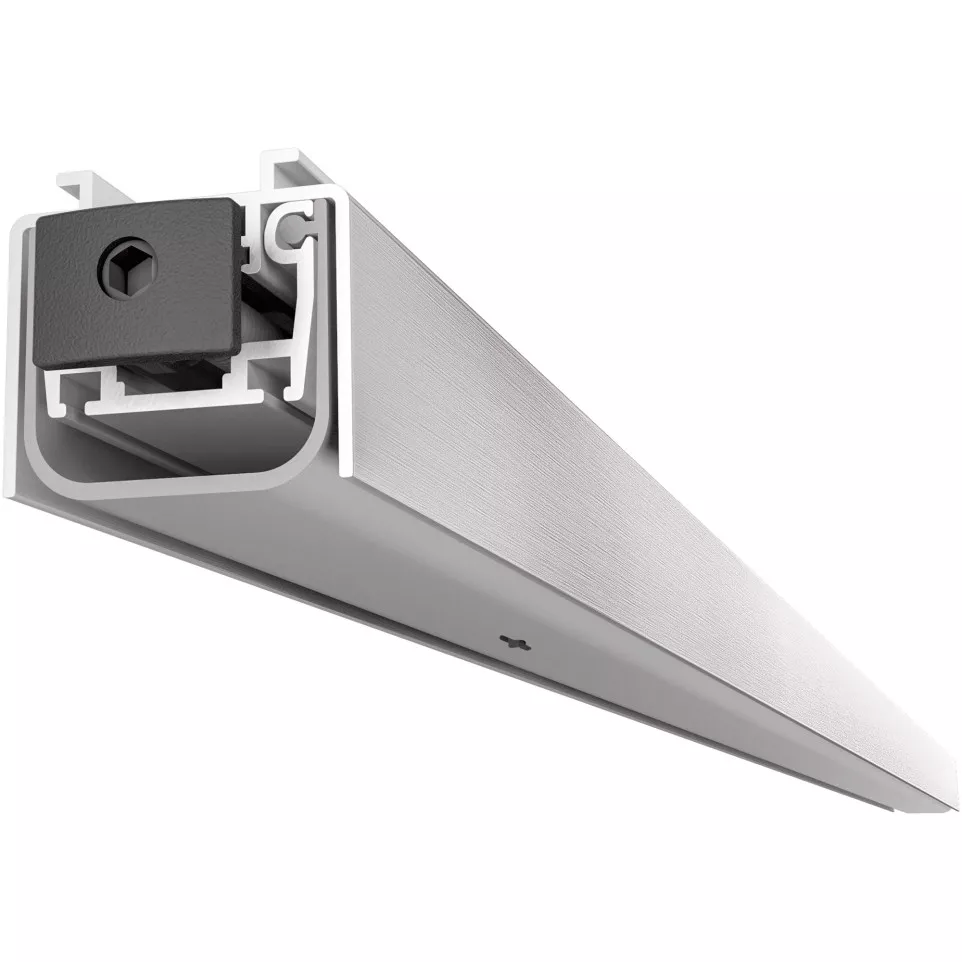

The CCE ALU-EURO 2520 is an automatic door bottom seal designed for PVC, aluminium, and armoured doors, providing effective draught and sound insulation across a 630 mm length.
Specifications
- Constructed from aluminium profile with rigid nylon connecting rods reinforced with fibreglass for uniform pressure distribution
- Single-extruded thermoplastic fire-retardant seal ensuring consistent contact along the full door width
- Nylon push button with rounded head, adjustable using a 3 mm hex key
- Lateral bracket fixings included for straightforward installation
- Maximum shortening capacity of 150 mm to accommodate various door widths
Usage
When the door closes, the push button compresses against the door frame or an external stop, activating the rigid connecting rods. These rods drive the internal mobile profile downward in a guillotine motion, first on the button side then on the opposite side, until the seal fully contacts the floor surface.
FAQ
- Which door types is this seal compatible with? — It is designed for use with PVC, aluminium, and armoured doors.
- Can the seal length be adjusted? — Yes, the profile can be shortened by a maximum of 150 mm to fit narrower door widths.
- How is the push button adjusted? — The nylon push button is adjustable using a standard 3 mm hexagonal key.
- What type of seal material is used? — The seal is made from a single-extruded, fire-retardant thermoplastic material.
- Are fixing accessories included? — Yes, lateral mounting brackets are supplied with the product for installation.
