Insulating Mass 2300 0.5 kg for Floor Door Closer per Piece
€46.58
In stock
Product

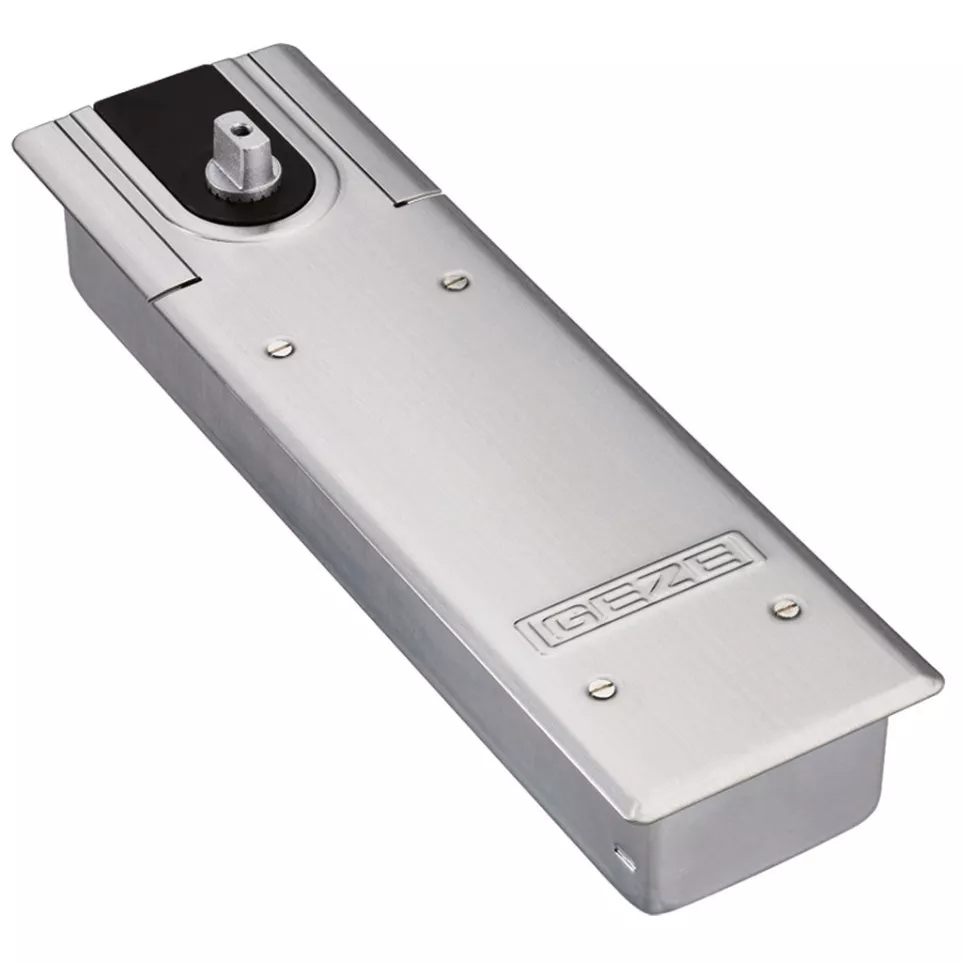

The Geze TS 550 NV-FP EN 3-6 is a concealed floor spring door closer engineered for single or double-action doors, accommodating heavy leaves up to 300 kg and widths up to 1400 mm. Designed for demanding, high-traffic environments such as public buildings, it provides robust and adjustable door control without a hold-open function.
Specifications
- Heavy-duty floor spring made from high-quality, durable materials for concealed installation
- Adjustable closing force within EN 3-6 for precise control over door movement
- Suitable for door leaves up to 1400 mm wide and 300 kg in weight
- Integrated back check reduces impact from forceful openings, enhancing door and frame longevity
- Adjustable closing speed, latching action, and delayed closing functions for versatile installation and user requirements
- All settings accessible from above post-installation to simplify adjustment and maintenance
- Fire tested and certified to EN 1154, EN 1634 EI 60, and additional compliance with DAS NFS 61937 for use with remote hold magnets
- Endurance tested to over 1 million opening and closing cycles
Usage
Install the TS 550 NV-FP concealed within the floor structure beneath single or double-action doors. Adjust closing force, speed, and latching action to match specific requirements, including heavy, frequently used doors in busy public or commercial buildings. The closer operates hydraulically and ensures reliable, controlled closure for enhanced safety and durability.
FAQ
-
What is the maximum door weight and width this floor spring can support? The TS 550 NV-FP supports doors up to 300 kg in weight and up to 1400 mm in width.
-
Is this closer suitable for fire doors? Yes, it is certified for use on fire protection doors and meets EN 1154 and EN 1634 EI 60 standards.
-
Does it have a hold-open function? No, this model does not include a hold-open function.
-
Can the settings be adjusted after installation? All main adjustments—including closing force, speed, and latching—are accessible from above even after installation.
-
What environments is this product designed for? It is ideal for high-traffic areas such as administrative buildings, schools, and entrances to public halls or conference centers.
