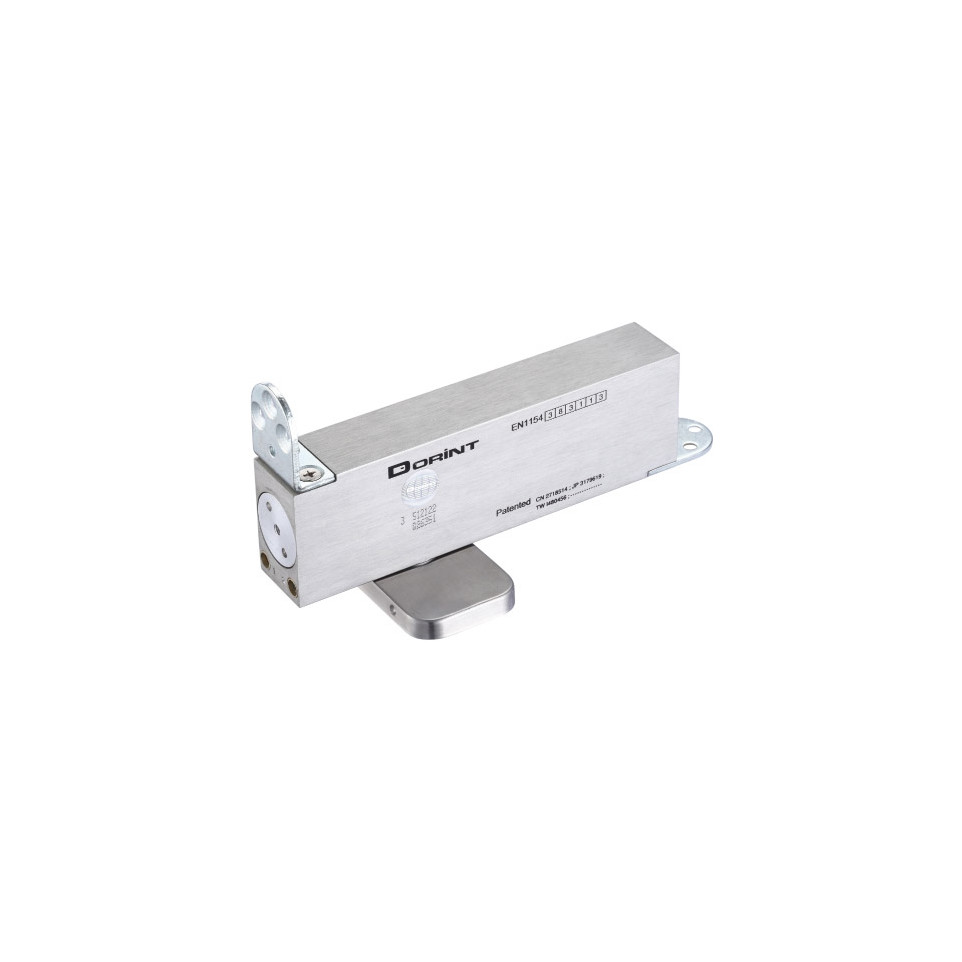

Dorint DFG 893 EN 3 hydraulic pivot with top pivot without packer / pc

Name: Dorint DFG 893 EN 3 hydraulic pivot with top pivot without packer / pc
Brand: Dorint
SKU: FGT-134751
Price: 91.09 EUR
Availability: InStock

Inc. Ex.

Estimated delivery date : Tuesday 14 July

€91.09 HT

In stock

Ref : FGT-134751

Quantity

Add to your shopping List

You must be logged

Description

Usage

The Pivot hydraulique Dorint DFG 893 EN 3 is designed for seamless, concealed door closing in commercial and public buildings. It is ideal for environments where aesthetics and reliable self-closing of single-leaf doors are required.

Advantages

Fully concealed installation maintains architectural aesthetics
Compatible with both left- and right-handed doors for versatile application
Variable closing and latching speeds via accessible regulating valves
High-performance hydraulic technology ensures consistent operation over time
No visible external hardware reduces risk of vandalism and tampering

Specifications

Slim integrated design using durable metal components; suitable for use with guide rail G893 without spacers (supérieur sans calage)
Tested to EN1154 standard; certified for barrier-free buildings in compliance with CEN/TR15894; CE marked product[2][3]
Sized at EN3, suitable for single-leaf doors up to approximately 950 mm wide; maximum opening angle of around 120°[2][3]
Latching speed adjustable between final degrees (typically from about 7° to closed); backcheck available as an additional accessory on the guide rail if required[2]

How it works

This pivot closer is discreetly fitted within the door leaf or frame. When the door is opened, hydraulic mechanisms smoothly control its return, automatically closing the door at an adjustable speed while remaining completely out of sight.

Product Details

Brand	Dorint
Finishing	argent

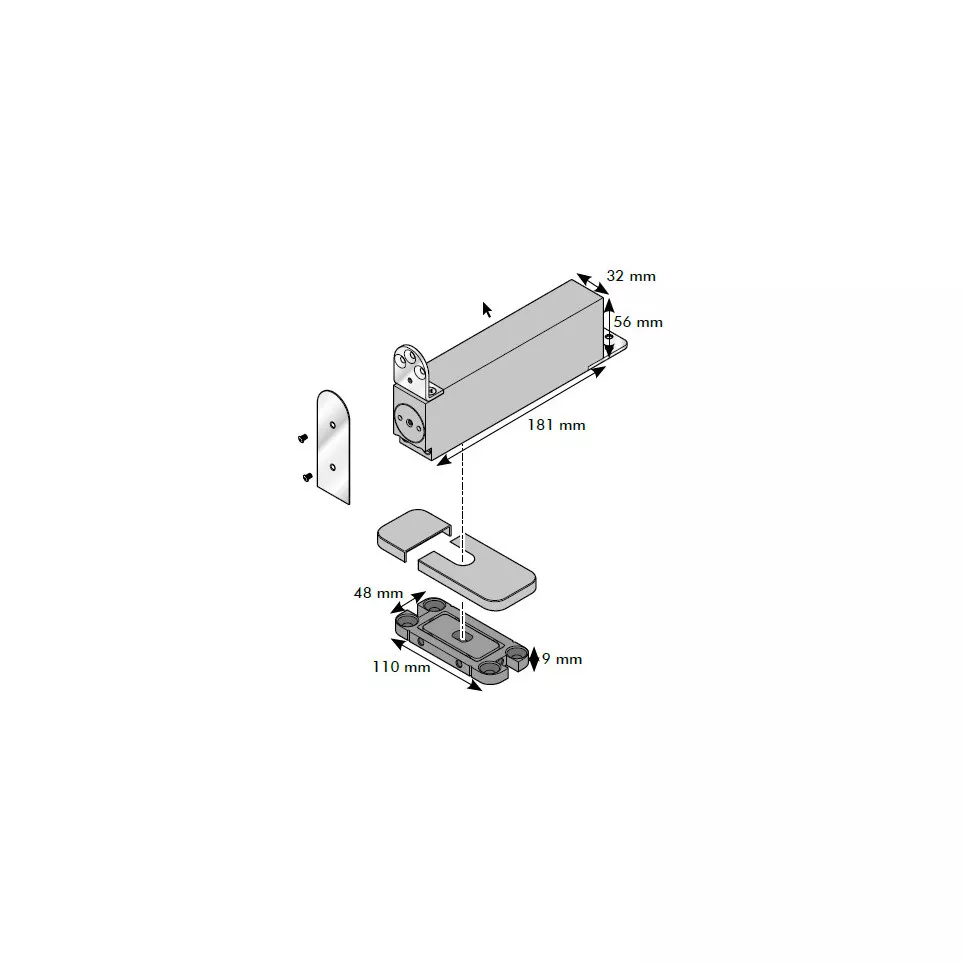

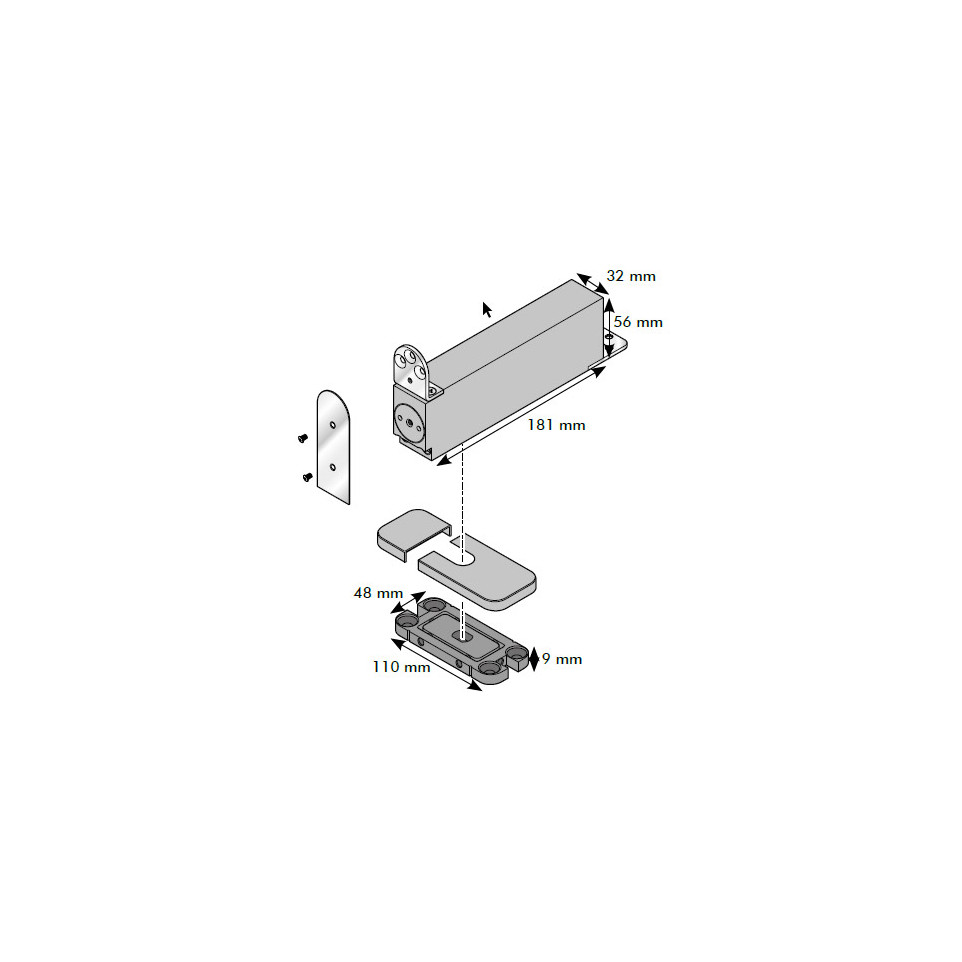

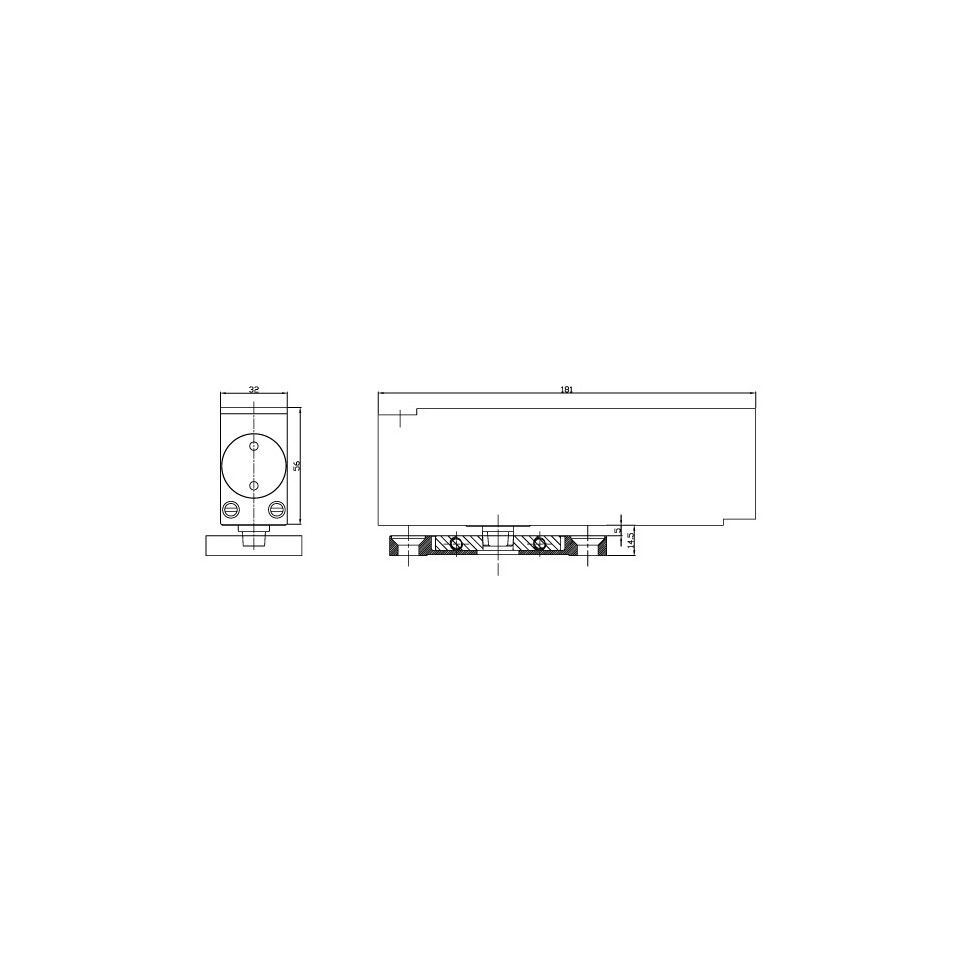

Product Dimensions	56 x 181 x 32 mm
Firewall	oui
Strength (selon EN1154)	EN 3
Leaf width (mm)	950
Max. weight of leaf (kg)	100 Kg
Operation technology	à came
Type of opening function	double action

Reference FGT-134751

Condition New
