Usage

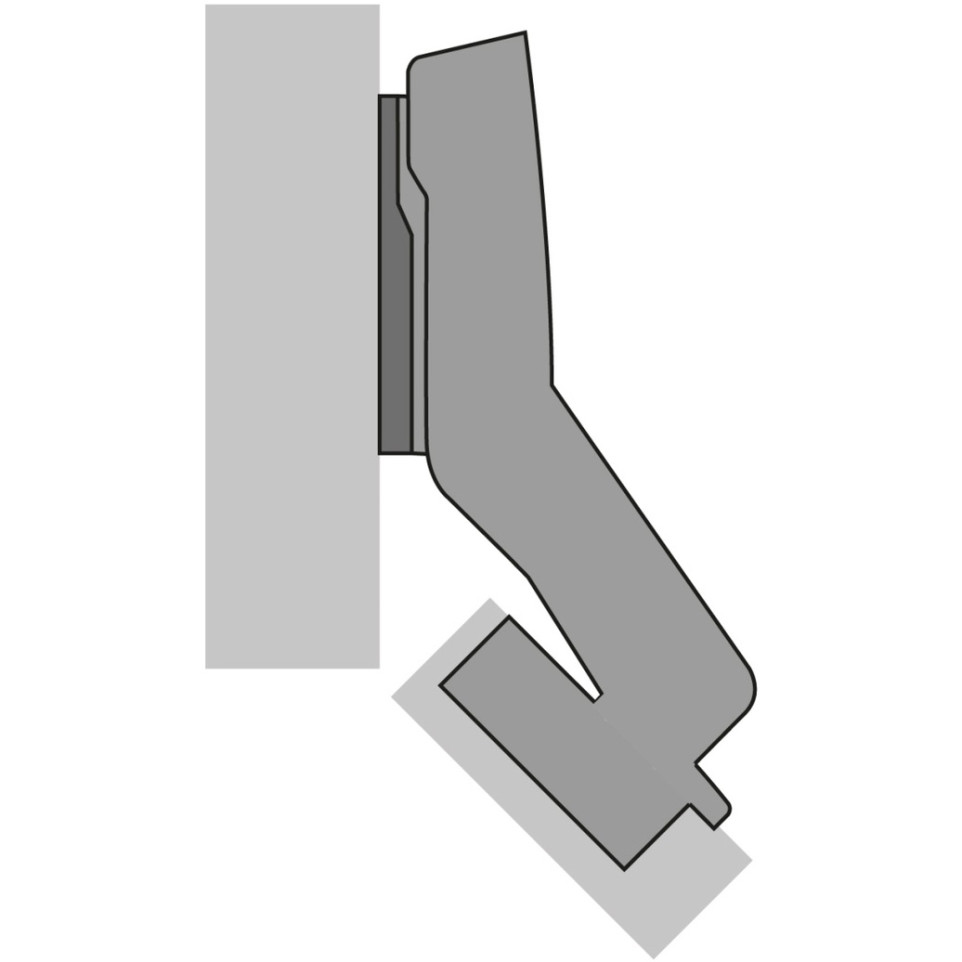

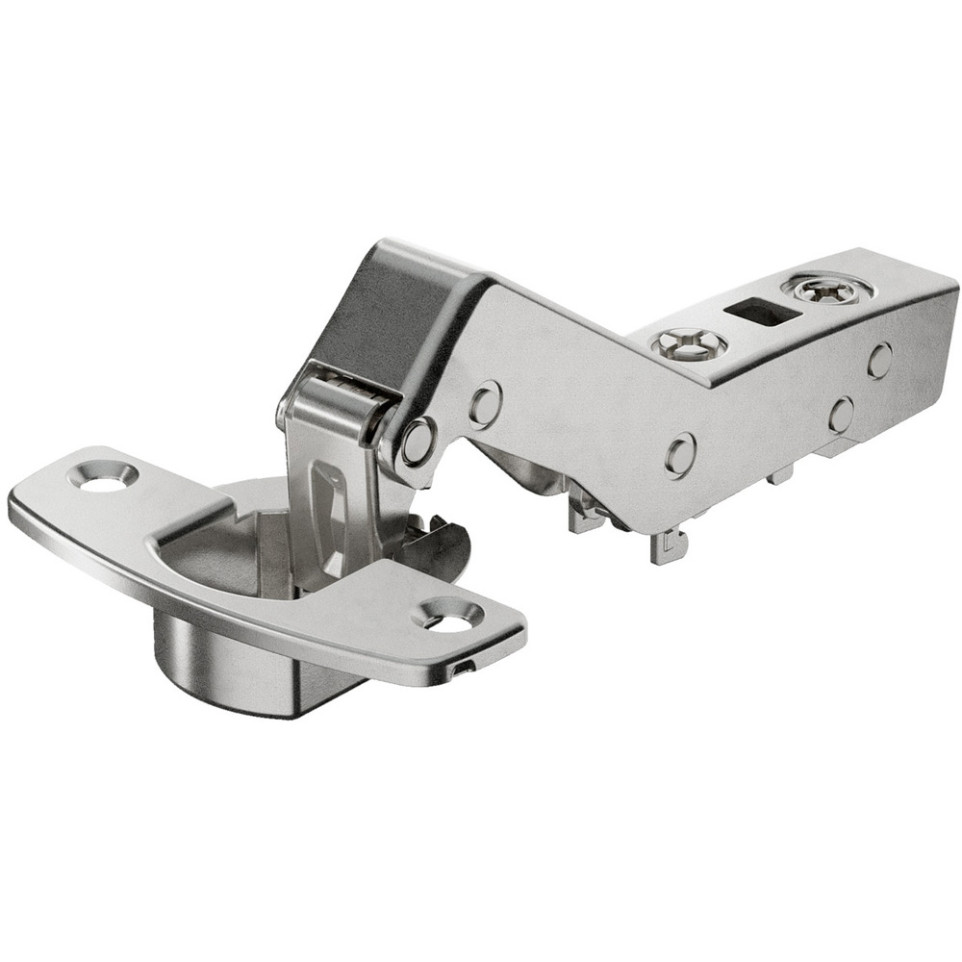

The Sensys 8639i W45 95° nickel-plated angle hinge is designed for inset cabinet doors, providing reliable mounting and smooth movement for furniture in kitchens, bathrooms, or other interior spaces.
Advantages
- Integrated silent system with built-in damping for soft closing action
- Self-closing function ensures automatic and secure door closure
- Nickel-plated steel construction offers corrosion resistance and durability

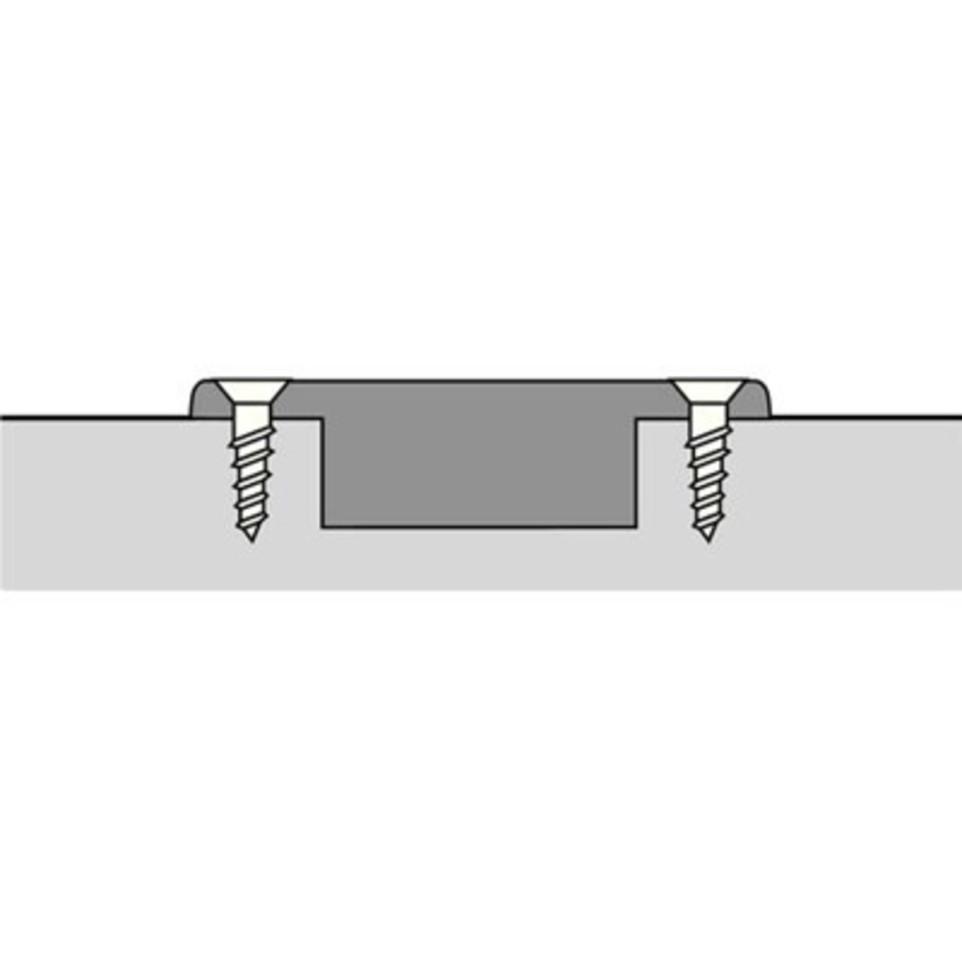

- Screw-on installation simplifies mounting and adjustment on furniture frames
- Suitable for door thicknesses from 15 to 28 mm; compact cup size optimizes cabinet space usage
Specifications

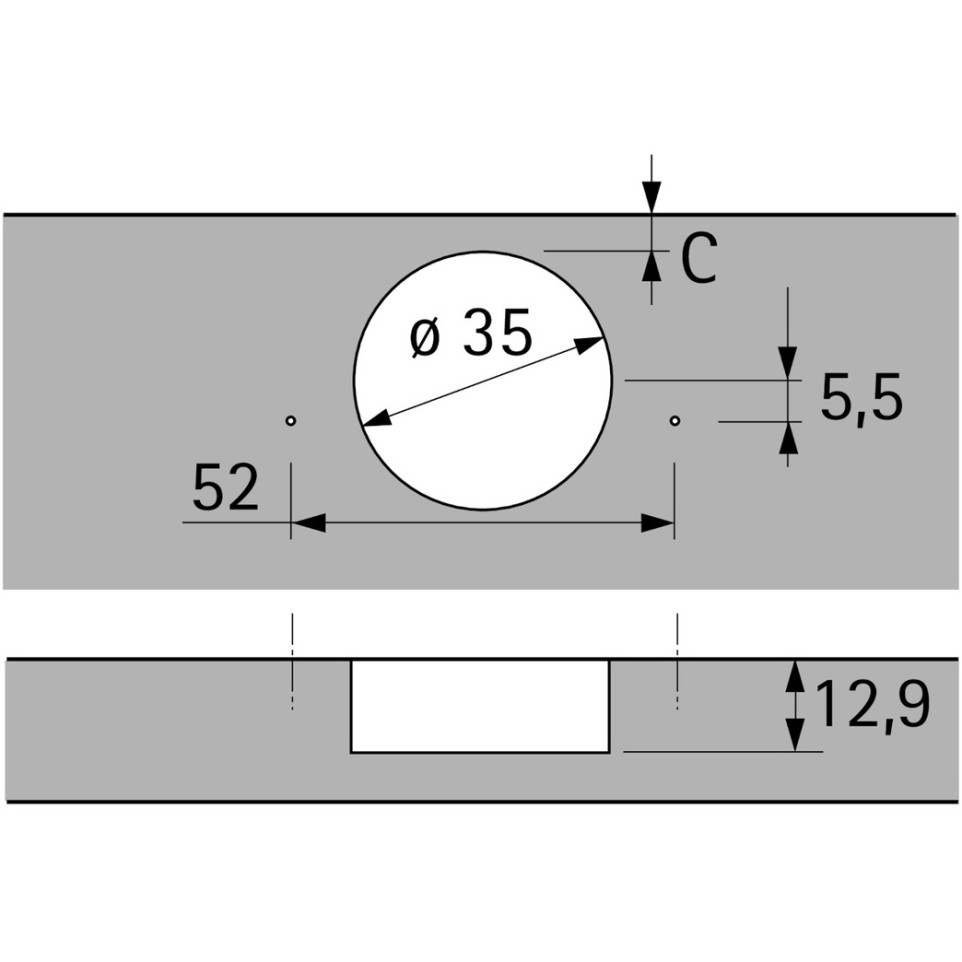

- Design: Concealed angle hinge with overlay option; nickel-plated steel material; screw-on base plate mount (TH52 x 5.5 mm drilling pattern)
- Durability: Quality classification according to EN 15570, level 3 (for high-performance use)
- Performance: Opening angle of up to 95°, minimum door thickness of 15 mm, maximum of 28 mm, cup diameter of 35 mm, cup depth of 12.8 mm[1][3][4][5]
- Differentiating features: Integrated damping (silent system), self-closing spring function, fast assembly mechanism enabling quick adjustments[1][4]
How it works
The hinge attaches with screws to the cabinet frame and bends at a precise angle—when closing the door, an integrated damper slows movement while a spring mechanism draws the door shut automatically for gentle yet firm closure.
