Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

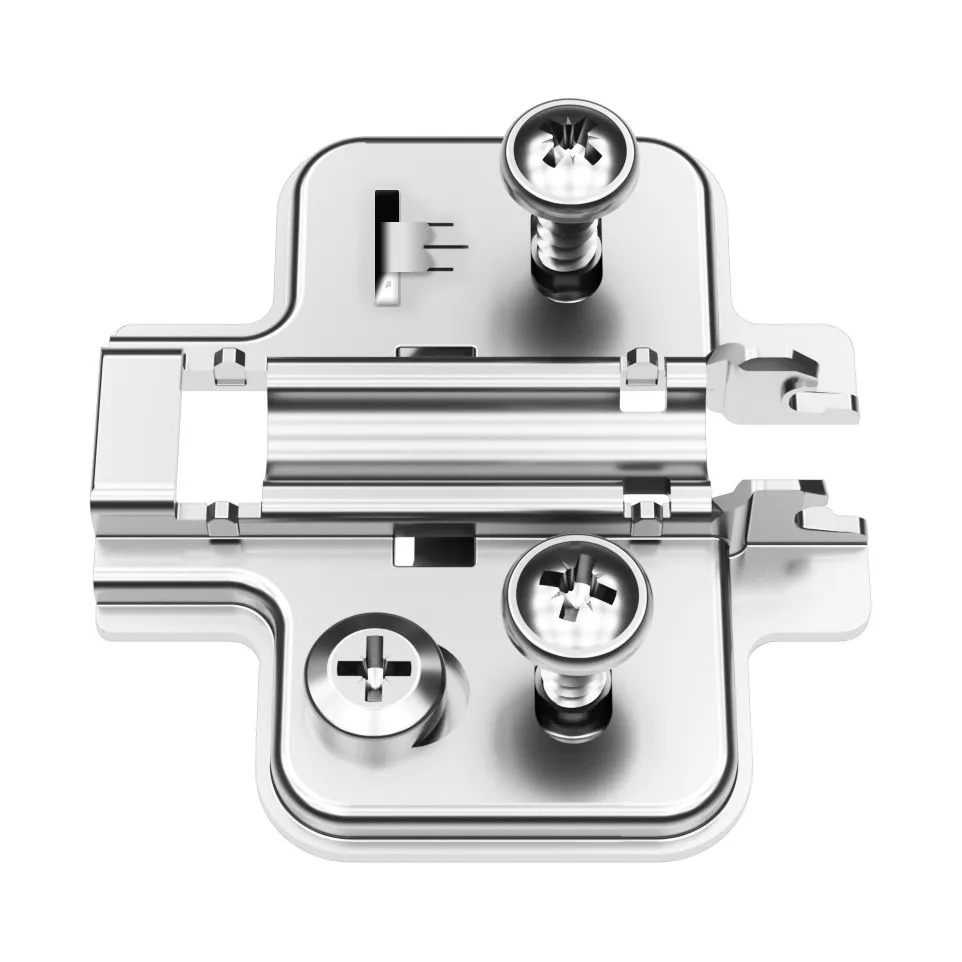

Nickel-plated Pivot-Star cruciform mounting plate with screws for particleboard, designed for 2.5mm drilling and direct vertical adjustment, with a 2mm cam offset. Suitable for cabinet construction and precise door mounting.
Specifications
- Constructed from nickel-plated steel for corrosion resistance
- Compatible with mounting on particleboard panels using standard screws (for 2.5mm pre-drilling)
- Features direct vertical adjustment and a 2mm cam height offset
- Designed for use with stud hinges and accessory systems
- Robust mounting plate ensures solid hinge-to-door connection
Usage
Secure the plate onto a particleboard panel using screws aligned with 2.5mm pre-drilled holes. The cam system enables fast, precise vertical adjustment of the mounted hinge, ensuring accurate door alignment in cabinetry.
FAQ
-
Is this mounting plate compatible with all stud hinges?
The plate is designed for use with compatible Pivot-Star series stud hinges and similar systems; always check hinge manufacturer recommendations. -
What is the adjustment range for the plate?
The plate offers direct vertical adjustment, allowing precise height control for reliable door alignment. -
What type of screws are required?
Standard wood screws suitable for particleboard panels and 2.5mm pre-drilled holes should be used for optimal fastening. -
Can this plate be used on materials other than particleboard?
While optimized for particleboard, it may be used with other wood-based panels if proper pre-drilling and screws are chosen. -
Is the mounting plate corrosion-resistant?
The nickel-plated finish provides enhanced resistance to corrosion under normal indoor conditions.
