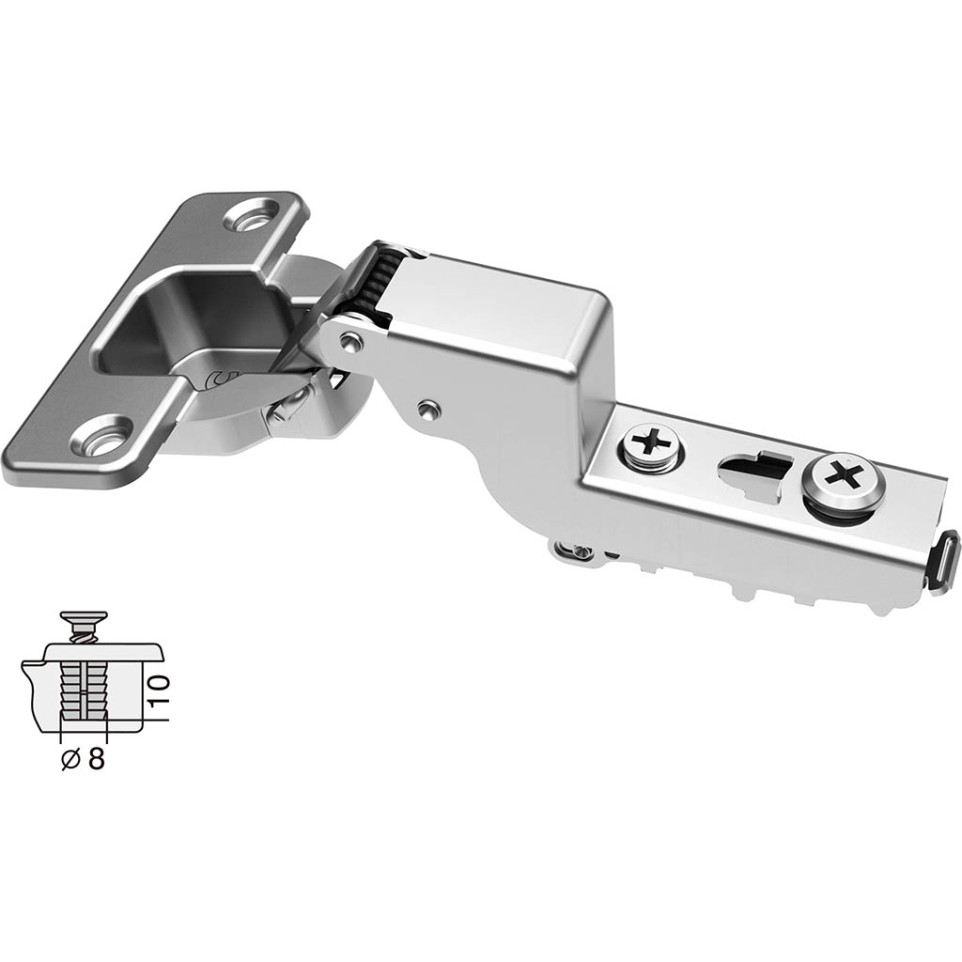

The Charnière Stylish 110° in nickel finish is a screwed-on hinge featuring integrated damping and self-closing for elegant inset cabinet doors, suitable for custom carpentry and residential or commercial interiors.
Specifications
- Design and Materials: Nickel-plated steel construction for durability and a modern look.
- Durability and Standards: Engineered for robust use, compatible with typical European fittings.
- Notable Features:
- Opening angle: 110°
- Integrated damping for soft, controlled closing
- Self-closing function
- Hinge body depth: 11.5 mm
- Hinge body diameter: 35 mm
- Inset (mortise) type hardware

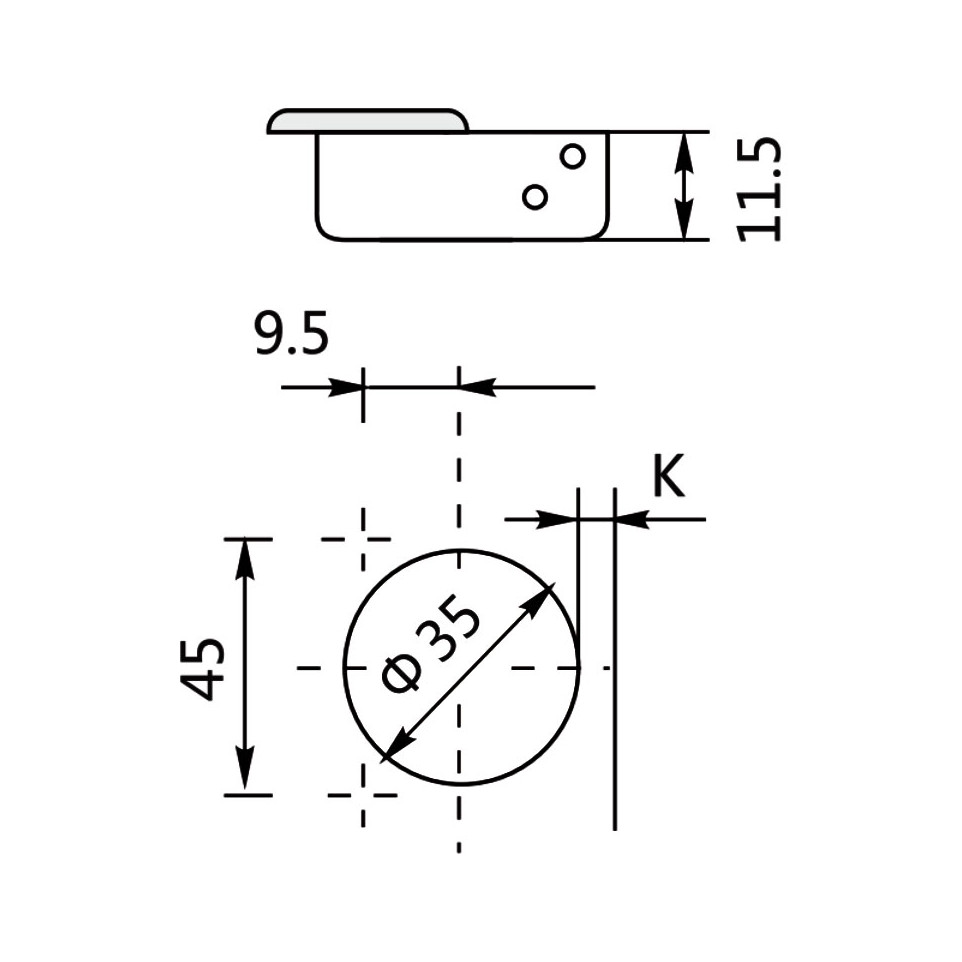

- Drilling pattern: 45 x 9.5 mm
- Screwed-on (screw-in) installation
- Suitable door thickness: 16–26 mm

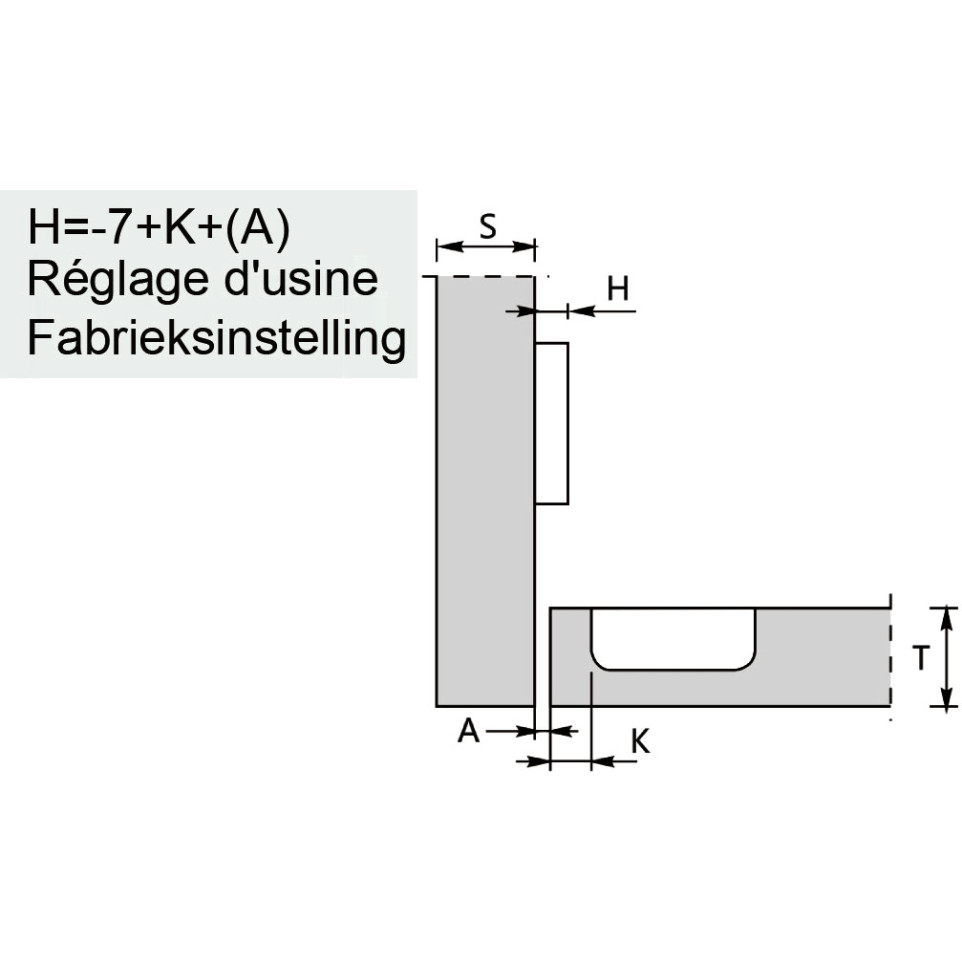

- Possible drilling distances (K) on door: 3–6 mm
Usage
The hinge is installed onto the door and cabinet frame using screws, aligning with the specified drilling pattern. Once fitted, it allows smooth door movement with automatic, cushioned closing and quiet operation, ideal for inset doors requiring precise alignment and seamless integration.
FAQ
- What door thickness does this hinge support?
It supports doors from 16 mm to 26 mm thick. - Is this hinge suitable for inset (mortise) doors?
Yes, it is specifically designed for inset (mortise) door applications. - Does the hinge have soft-close functionality?
Yes, it features integrated damping for soft and smooth closing. - What is the opening angle?
The opening angle is 110°. - How is the hinge installed?
It is installed using screws and requires a drilling pattern of 45 x 9.5 mm for proper alignment.
