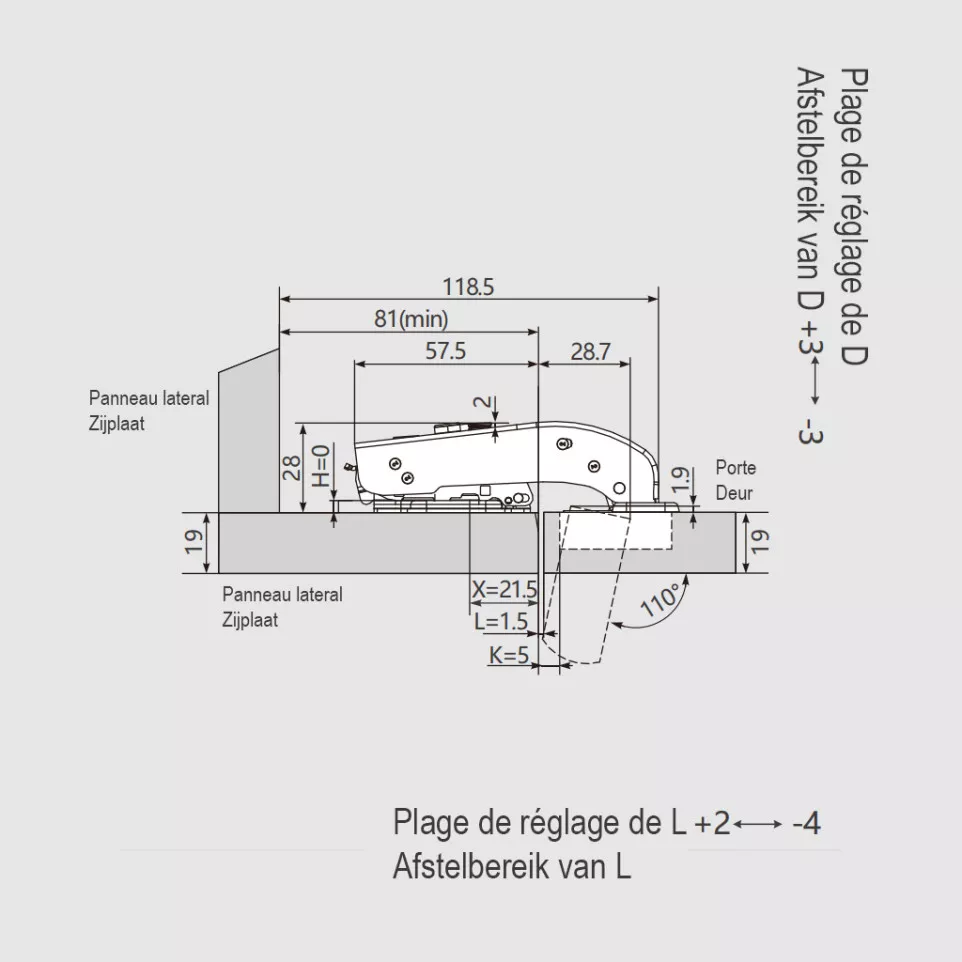

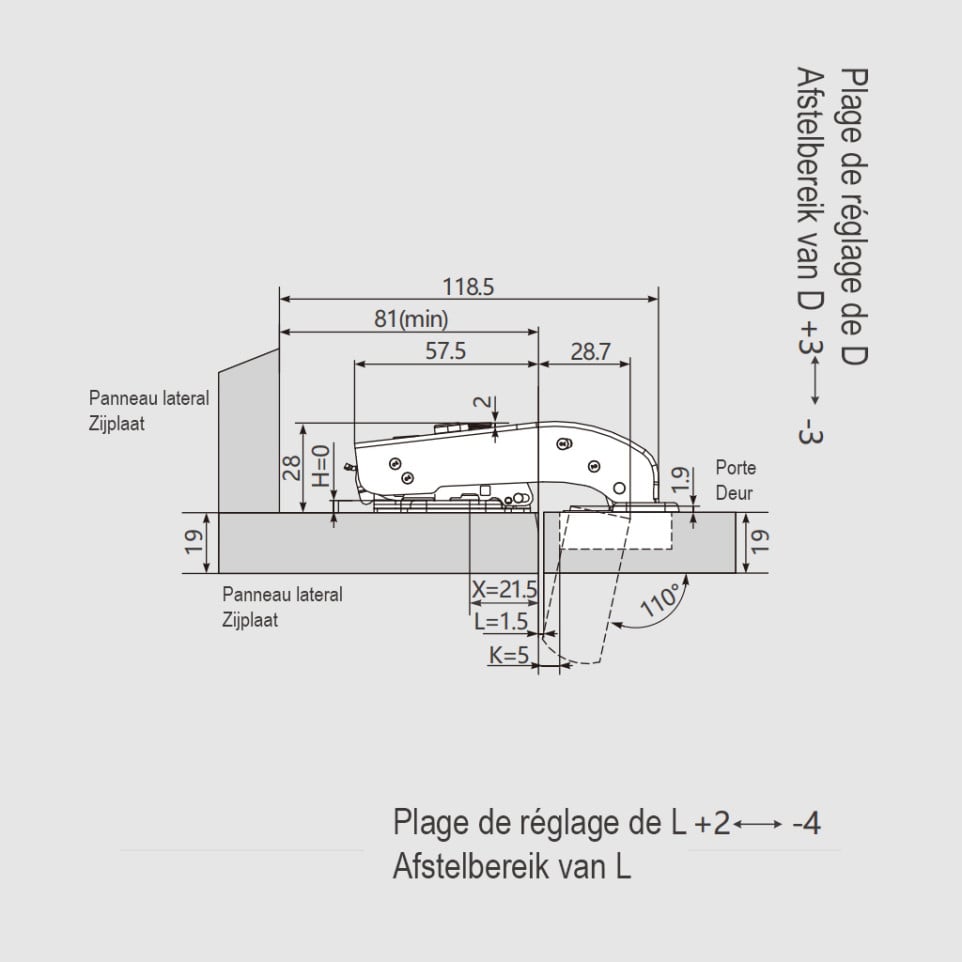

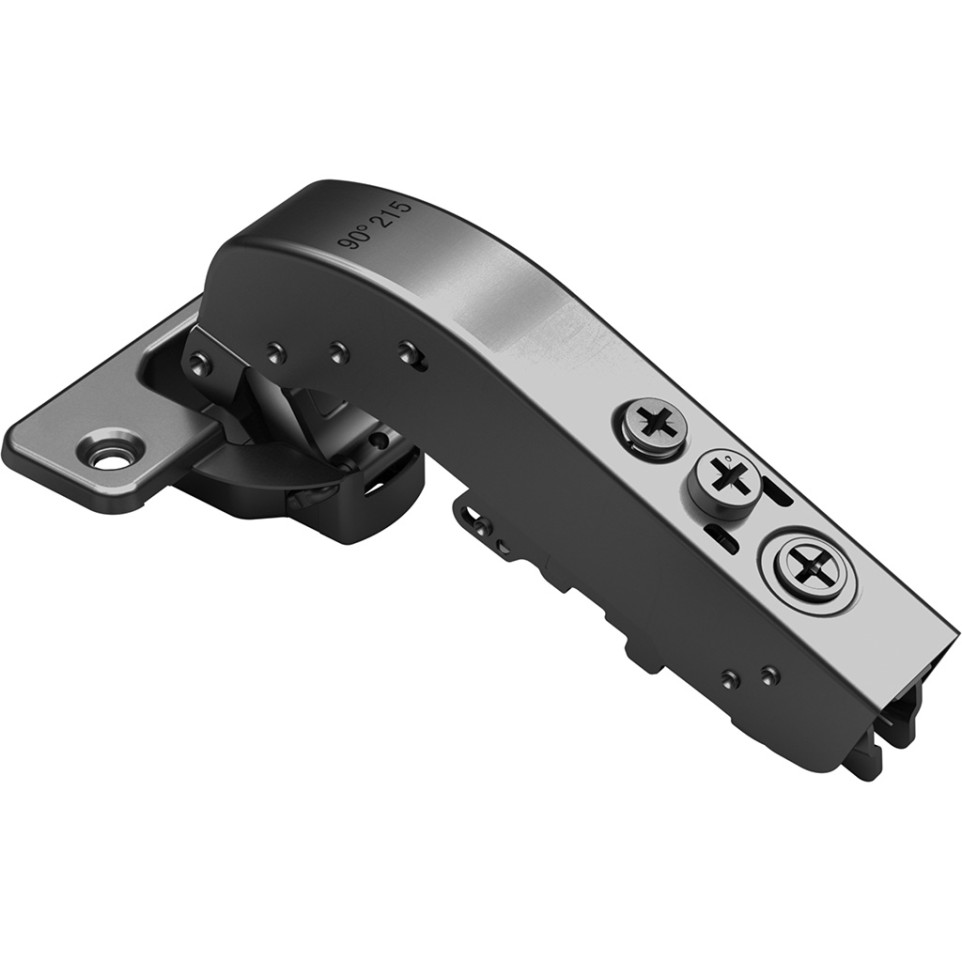

The 90° Pivot-Star 110° black titanium screw-on hinge features integrated soft-close and automatic closing, ideal for cabinets requiring precise, silent operation. Designed for inset applications, it supports door thicknesses from 16 to 26 mm.
Mount the hinge using the designated screw-on system and drilling pattern for accurate alignment. The speed-adjustable soft-close function gently controls door movement, while the automatic closing ensures a smooth and silent return every time, making it suitable for kitchen or furniture cabinets where quiet performance is essential.
What is the maximum door opening angle?
The hinge opens up to 110°, making it suitable for wide cabinet access.
Is this hinge suitable for overlay or inset doors?
This model is designed for inset fittings, where the door sits flush with the cabinet frame.

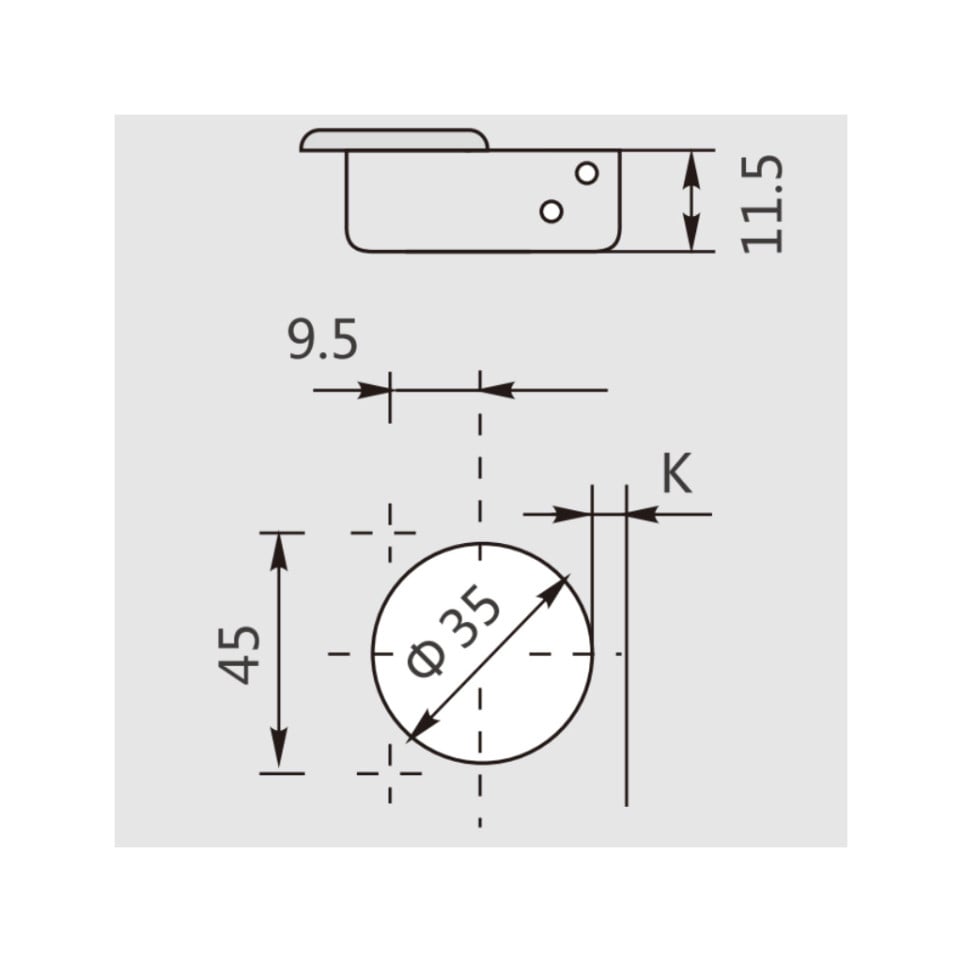

What is the required hinge cup bore size?
The hinge cup requires a 35 mm diameter bore with an 11.5 mm depth.
Does the hinge include soft-close and automatic closing?
Yes, it features integrated soft-close technology and an automatic closing function for controlled, silent operation.
What door thickness can this hinge support?
It is compatible with doors from 16 mm to 26 mm thick.
