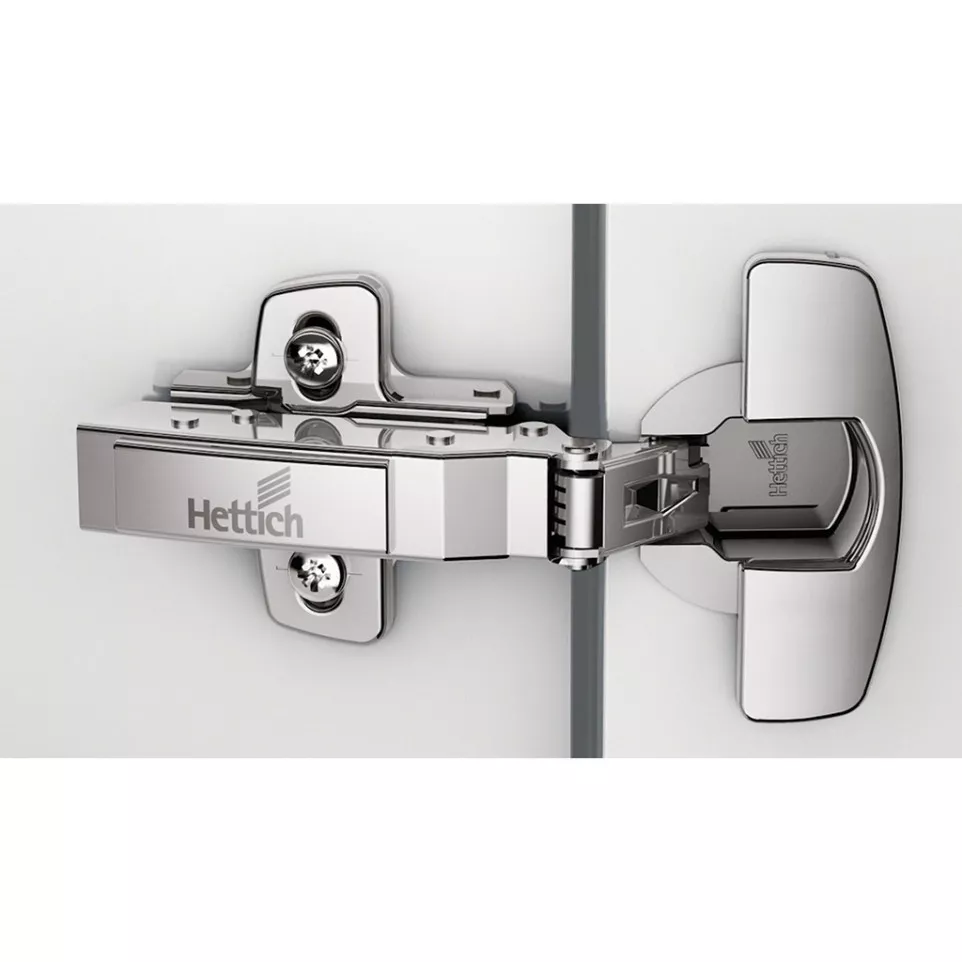

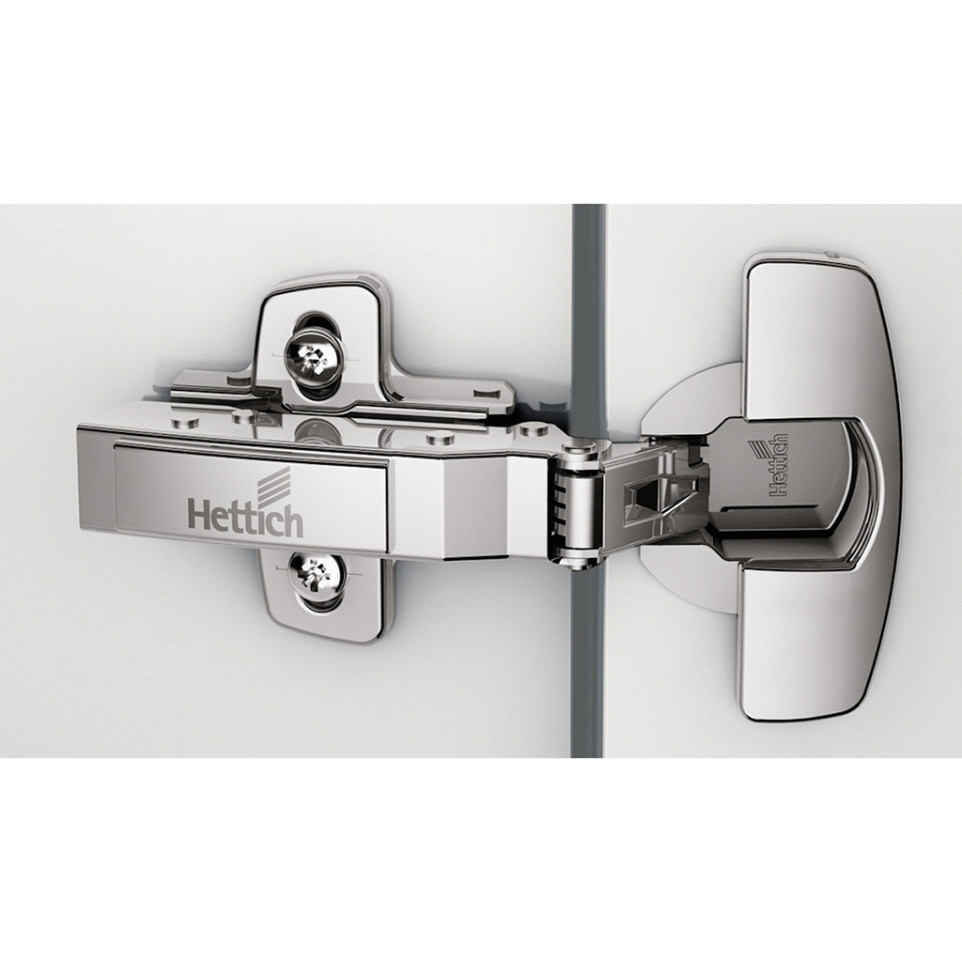

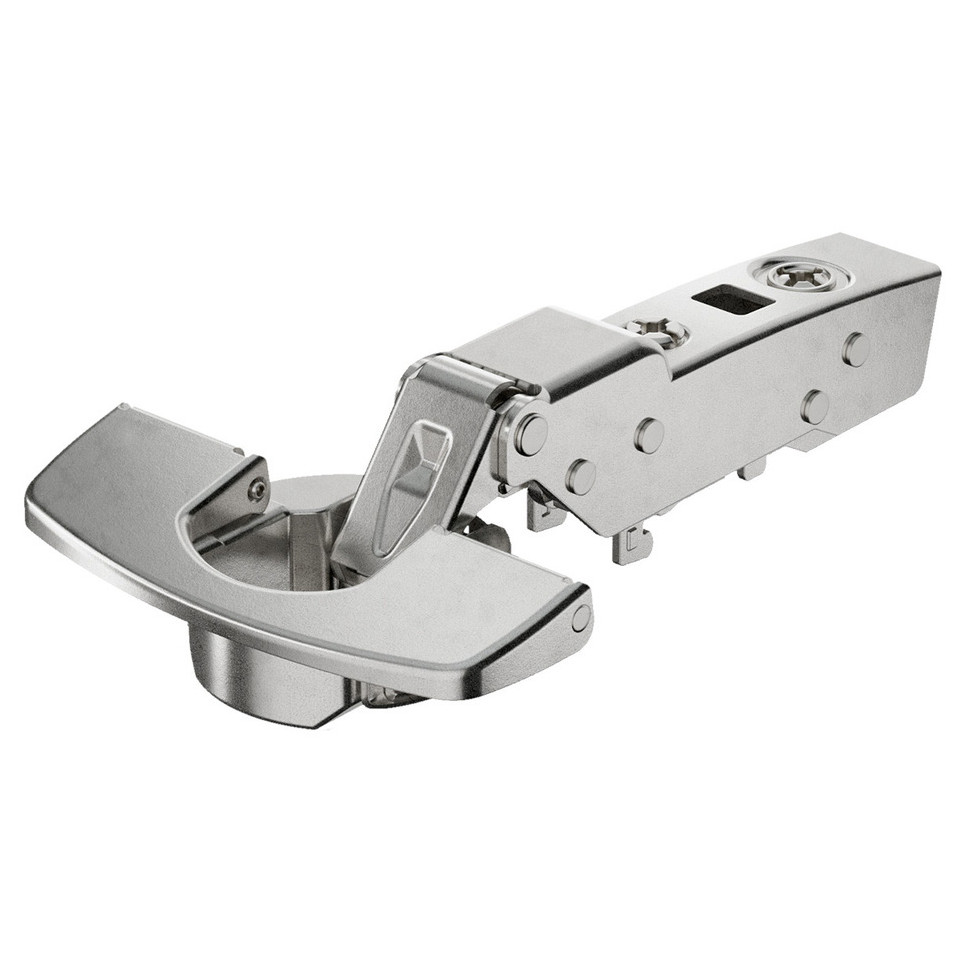

The Hettich Sensys 8675 110° quick-mount concealed hinge is engineered for handleless cabinet applications, offering full access with a 110° opening angle. Designed for doors 15–24 mm thick, it features a nickel-plated steel finish, no self-closing, and no damping.

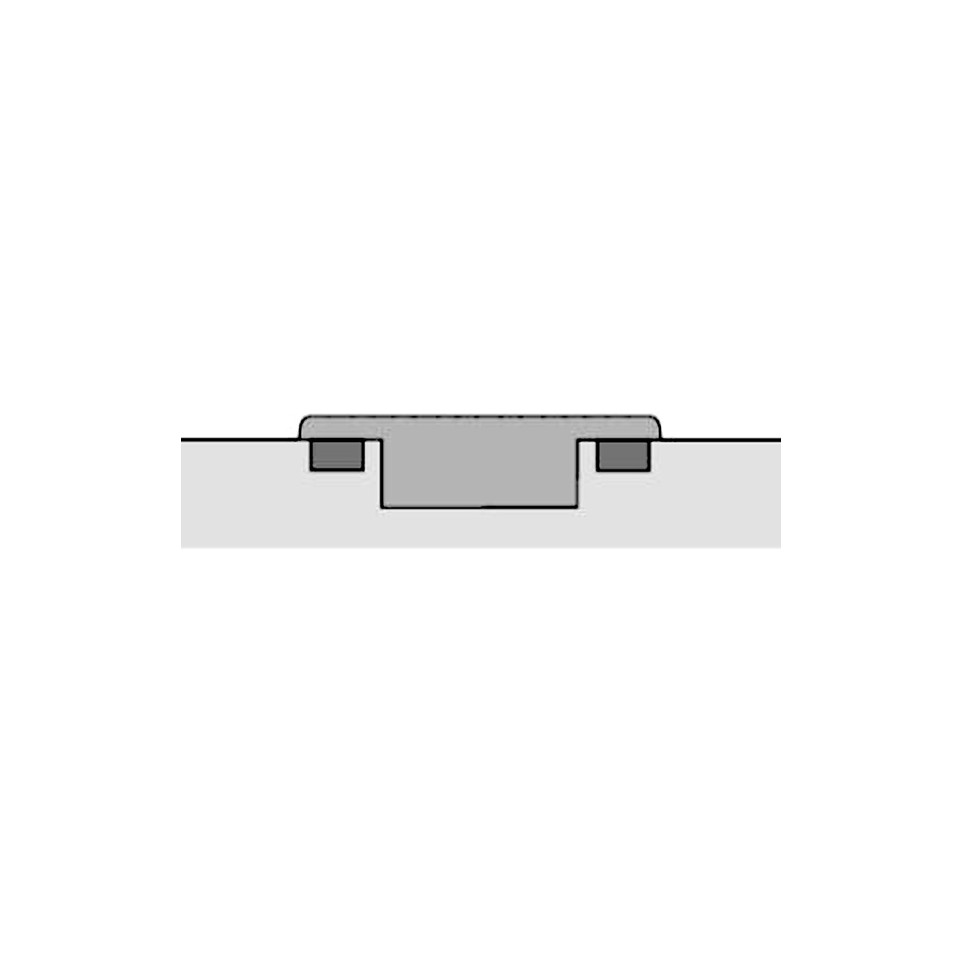

Install the Sensys 8675 hinge into the cabinet door using the specified drilling pattern and cup dimensions. Adjust overlay, depth, and height to align the door precisely. Ideal for push-to-open, handleless designs, this hinge offers a clean look without automatic closing or soft-closing features.
What are the recommended door thicknesses for this hinge?
The hinge is suitable for doors with thicknesses between 15 and 24 mm.
Does this hinge include soft-closing or self-closing features?
No, this model does not have damping or self-closing functions and is intended for push-to-open systems.
How do I adjust door alignment after installation?
Use the integrated overlay (+2/-2 mm) and depth (+3/-2 mm) adjustments, as well as height adjustment via the mounting plate.
Can this hinge be used on both right and left-handed doors?
Yes, the hinge can be mounted on either side, accommodating different cabinet configurations.
What is the suitable application for this hinge?
This hinge is intended for handleless furniture, such as modern kitchen cabinets or wardrobes, where a push-to-open mechanism is desired.
mvm-dt-2025-07-07
| Brand | Hettich |
|---|---|
| Finishing | nickelé |
| Type of assembly | montage rapide Fix |
| Material used | acier |

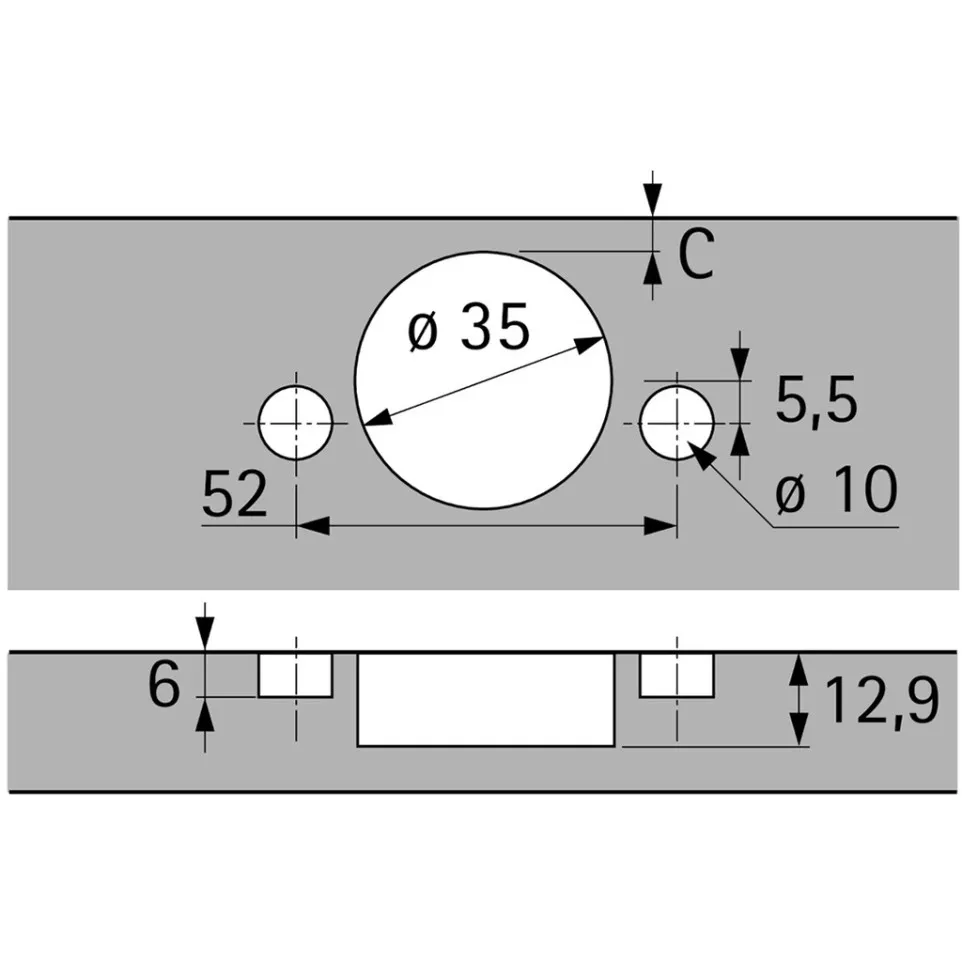

| Drilling diagram | TH52 x 5,5 mm |

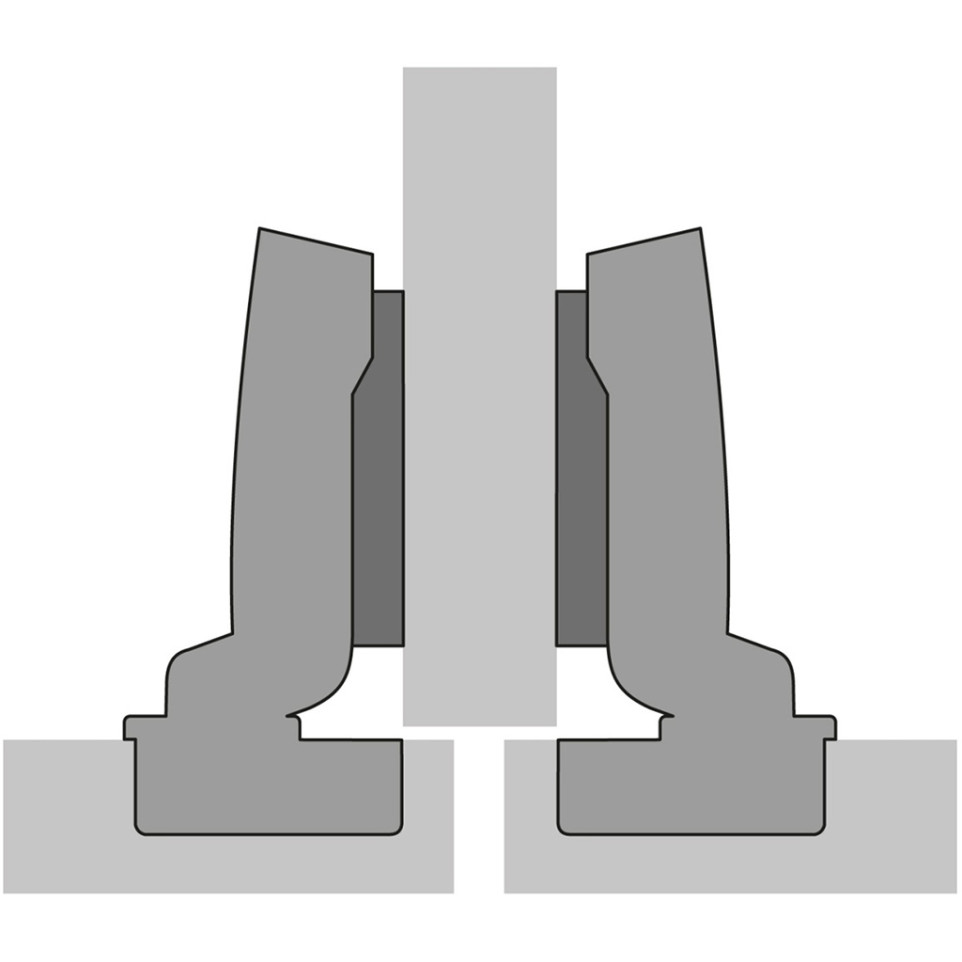

| Finish Fittings | en semi-applique |
