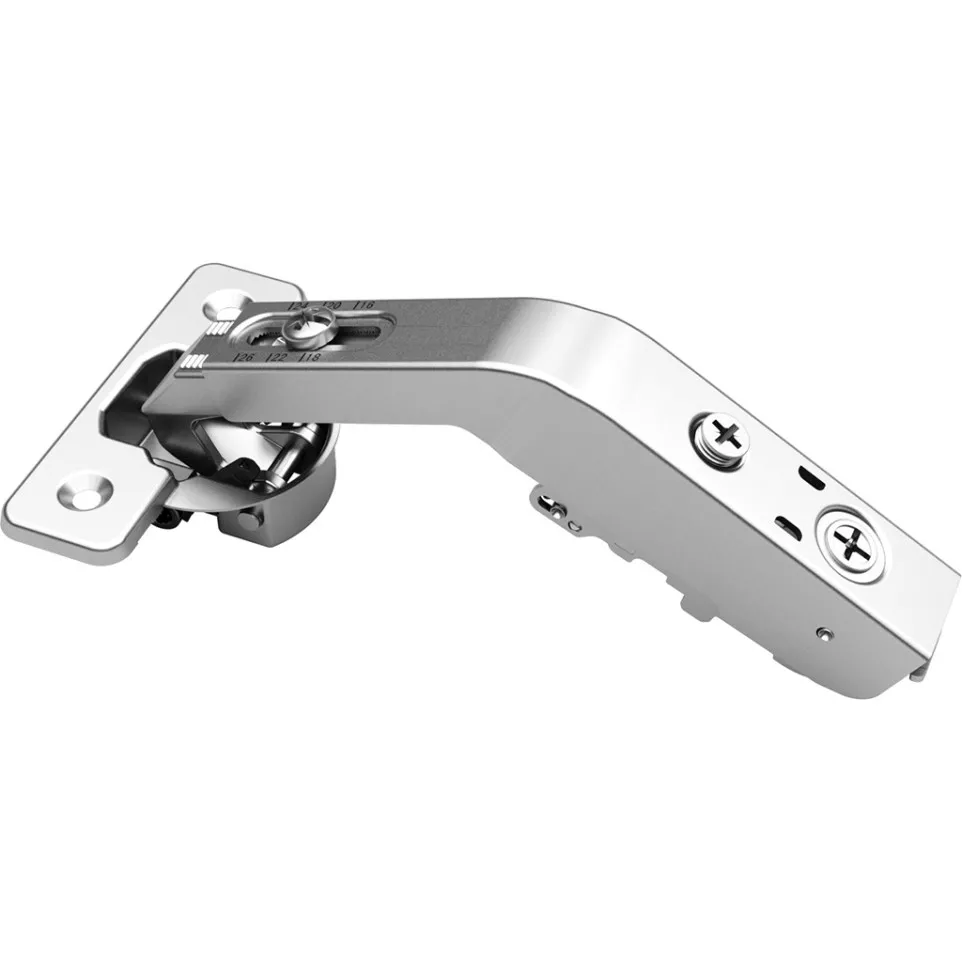

Pivot-Star 55° nickel-plated screw-on hinge for corner cabinet folding doors, designed for stud hinge systems. Offers automatic closing without integrated soft close, suitable for residential and commercial cabinetry.
Specifications
- Screw-on mounting for secure attachment and straightforward installation
- Nickel plating provides corrosion resistance and a clean appearance
- 55° opening angle enables space-saving door movement in corner cabinets
- Hinge cup depth: 11.5 mm
- Hinge cup diameter: 35 mm
- Overlay-type fitting for versatile cabinet designs
- Compatible with door thicknesses from 14 to 26 mm

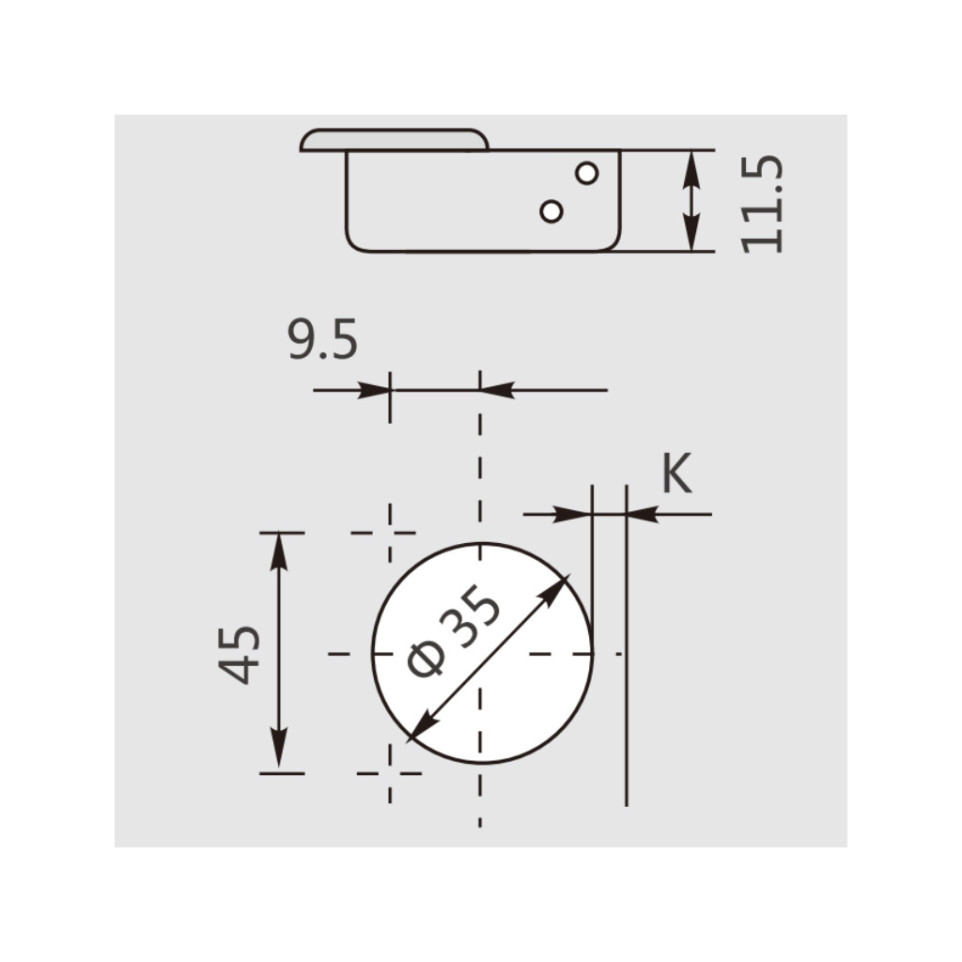

- Suitable for drilling patterns 45 x 9.5 mm and drilling distance K: 3–7 mm
- Does not include integrated soft close; features automatic closing mechanism
Usage

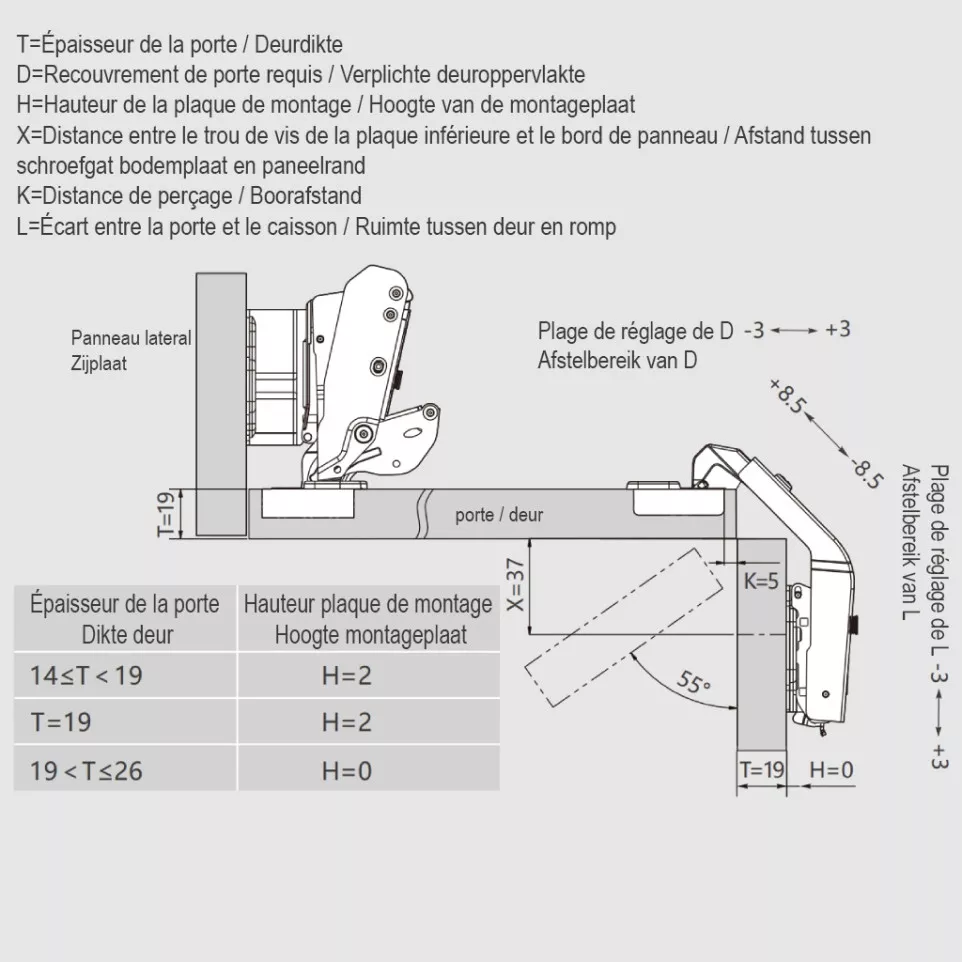

Install the Pivot-Star hinge on folding corner cabinet doors with the specified drilling pattern and door thickness range. Align and screw the hinge securely; the automatic closing action will engage when closing the door, ensuring it remains properly shut without manual adjustment.
FAQ
-
What is the opening angle of this hinge?
The hinge offers a 55° opening angle for corner cabinet folding doors. -
Is it suitable for soft-close applications?
No, this model does not include a soft-close function; it provides automatic closing only. -
What door thicknesses does this hinge support?
This hinge is compatible with doors ranging from 14 mm to 26 mm in thickness. -
How is the hinge installed?
The hinge is installed using screws, following a 45 x 9.5 mm drilling pattern and compatible K distances from 3 to 7 mm. -
Can this hinge be used on overlay cabinet doors?
Yes, the hinge is designed as an overlay-type fitting, ideal for stud hinge systems in corner units.
