Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage
The Abloy EL460 solenoid mortise lock is designed for electrically controlled access on profile doors, commonly used in interior office, public building, or corridor environments requiring secure one-sided handle control and monitoring.
Advantages
- Self-locking mechanism ensures automatic security when the door closes
- Suitable for fire-resistant and emergency exit doors with certified compliance
- Easily reversible trigger bolt accommodates both left- and right-handed doors
- Low power consumption with broad voltage compatibility (12–24 VDC)
- Manual key cylinder override allows mechanical access during power failure situations
Specifications

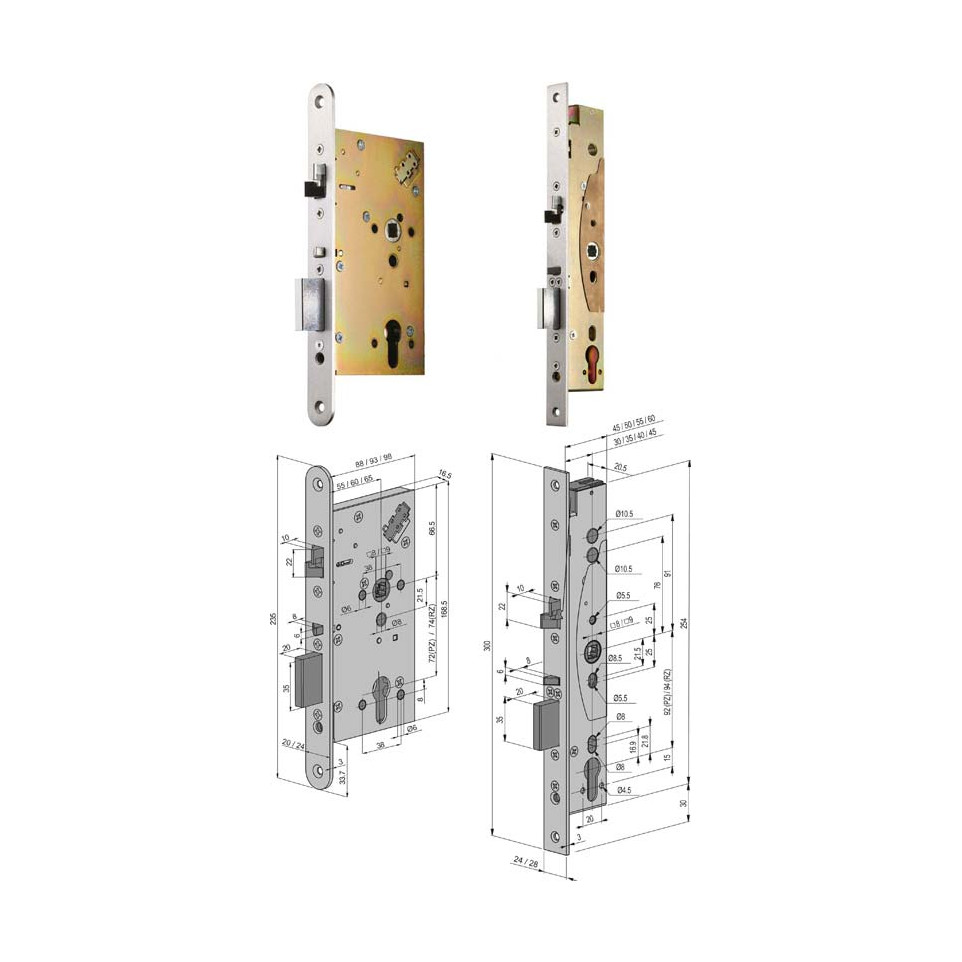

- Design & Materials: Mortise DIN lock case with stainless steel forend, double action latch bolt, Europrofile cylinder compatibility; backset: 45 mm; center distance: 92 mm; spindle: 9 mm (8 mm adapter included)
[1][3][4] - Sustainability & Certifications: Certified to EN14846 (electric locks), EN179 (emergency exit), EN1125 (panic exit), EN1634-1 (fire resistance); suitable for medium security requirements
[3][4] - Measured Performance: Input voltage: DC 12–24 V (-10% / +15%); idle current: ≤130 mA at 12 VDC / ≤65 mA at 24 VDC; max current draw up to 0.40 A. Deadbolt throw of 20 mm. Operating temperature range from -20°C to +60°C
[1][4][7] - Differentiating Features: Electrically controlled outside handle with split spindle configuration offers fail safe/fail secure settings selectable on installation. Full locking status monitoring outputs available.
[1][3][9]
How it works
The EL460 uses a solenoid mechanism to control the outside handle electronically via an access system. When locked, the deadbolt extends automatically as the door closes, securing it in two points. The inside handle always provides mechanical emergency egress while monitored contacts report real-time locking status.
[1][3][4]
