Product

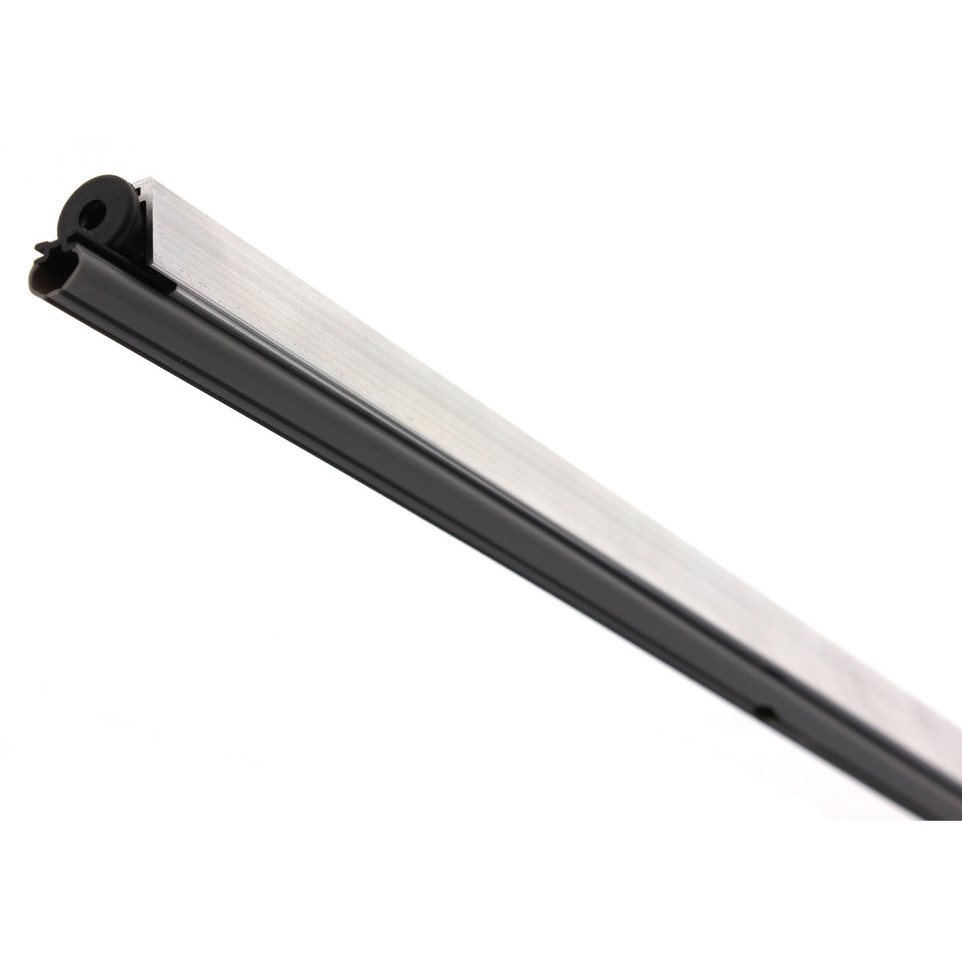

Automatic baseboard CCE SMALL 1213 1230mm is designed for professional sealing of door bottoms, ensuring maximum efficiency and uniform floor contact in residential or commercial environments.
Specifications
- Features rigid linkage arms in glass-fiber reinforced nylon for optimal pressure and long-term efficiency.
- Compatible with PVC, wood, aluminum, and reinforced doors.
- Equipped with a self-aligning metal push button and adjustable nylon cap for precision installation.
- Includes flame-retardant co-extruded thermoplastic seal (rigid + flexible).
- Secured using screws through the pre-drilled seal; shortening up to 150 mm possible.
Usage
Installed at the bottom of doors, the automatic baseboard activates its internal linkage system when closing, lowering the mobile profile to seal the gap between the door and floor. The sealing joint adheres along the entire width, preventing drafts, noise, and dust intrusion.
FAQ
-
What doors can this product be used with?
It is suitable for PVC, wood, aluminum, and armored doors.
-
How is the automatic lowering mechanism activated?
A push button is compressed against the door frame, triggering the internal arms to drop the sealing profile.
-
Can the length be adjusted on-site?
Yes, the baseboard can be shortened up to 150 mm to fit specific door widths.
-
Does the seal provide fire resistance?
The sealing joint is made of flame-retardant thermoplastic for enhanced fire safety.
-
How is the product installed?
It is fixed using screws directly through the pre-drilled joint for a secure and precise fit.
