Product

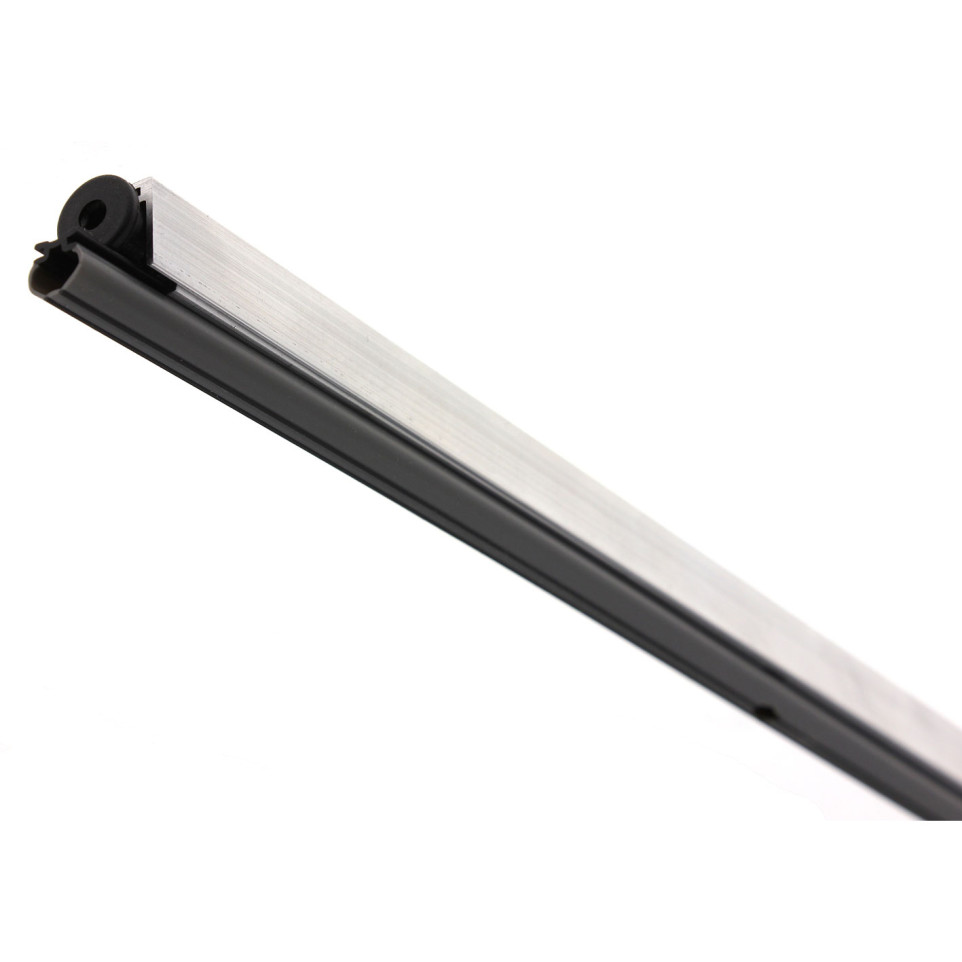

Automatic baseboard CCE SMALL 1213 1030mm is designed to efficiently seal the gap beneath interior doors in residential or commercial environments, enhancing insulation and comfort through an innovative automatic drop-down mechanism.
Specifications
- Constructed with fiberglass-reinforced nylon linkages for maximum efficiency and uniform pressure on all floor types
- Universal compatibility with PVC, wood, aluminum, and security doors
- Self-directing articulated metal plunger with adjustable nylon cap (3 mm hex key)
- Co-extruded thermoplastic flame-retardant gasket (rigid and flexible)
- Direct fixing with screws through pre-drilled gasket
- Maximum shortening capability of 150 mm
- Robust internal mechanism ensures consistent drop and precise sealing action
Usage
When the door closes, the metal plunger compresses against the door frame or an external stop, activating the internal linkages. The moving profile descends with a guillotine motion, sealing the floor gap along the entire base of the door until the door is reopened.
FAQ
-
For which door types is this baseboard suitable?
It is compatible with PVC, wood, aluminum, and reinforced security doors.
-
How is the drop-down mechanism activated?
The mechanism engages automatically via a metal plunger that contacts the door frame or an external stop when the door is closed.
-
Can the length be adjusted to fit narrower doors?
Yes, the baseboard can be shortened by up to 150 mm.
-
What material is the sealing gasket made from?
The gasket is made of co-extruded flame-retardant thermoplastic, combining rigid and soft sections for optimal sealing.
-
How is this baseboard installed?
Fixing is performed directly with screws through the pre-drilled gasket, ensuring secure installation.
