Product

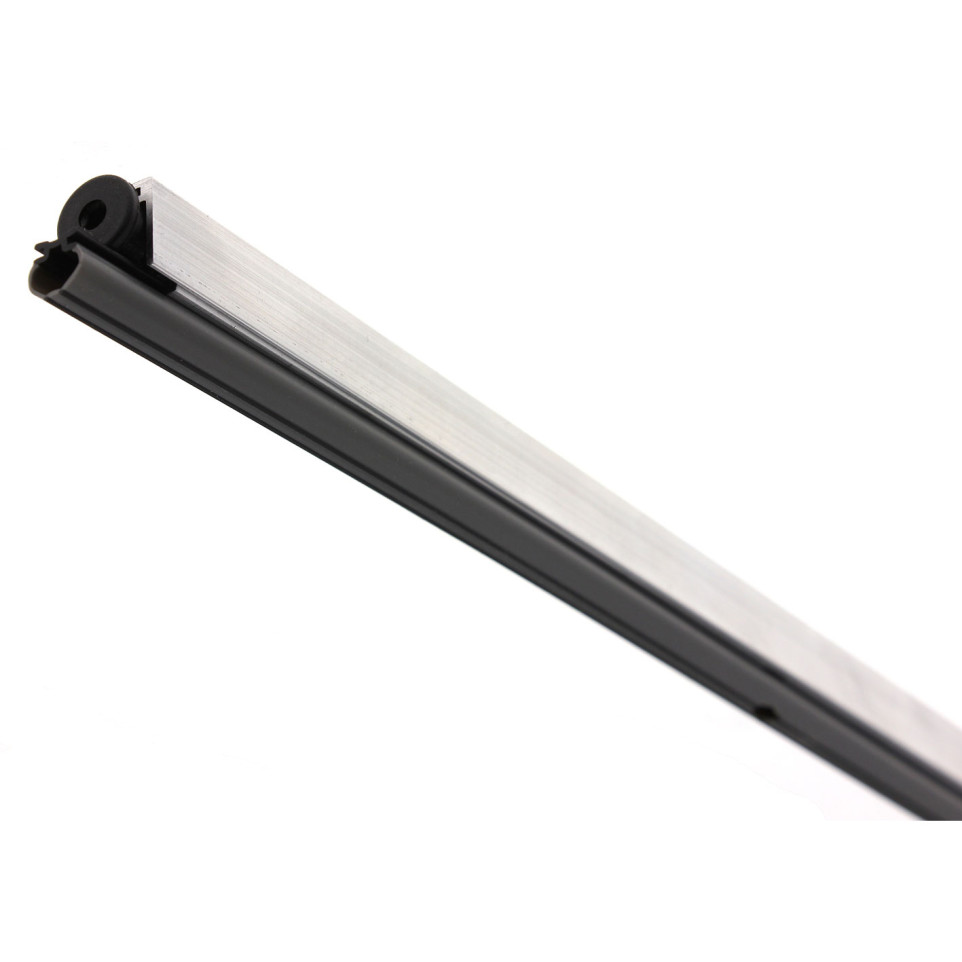

Automatic baseboard CCE SMALL 1213, measuring 1130mm, designed for sealing the gap beneath doors in residential or commercial environments. Ensures uniform pressure and reliable performance on diverse flooring types.
Specifications
- Rigid nylon linkages reinforced with fiberglass for maximized efficiency and even sealing pressure
- Suitable for PVC, wood, aluminum, and armored doors
- Self-directing articulated metal push button with adjustable nylon cap, fine-tuned via 3mm hex key
- Flame-retardant, co-extruded thermoplastic gasket (rigid and flexible)
- Secured directly through pre-drilled joint using provided screws
- Maximum shortening: 150mm
Usage
When the door is closed, the external push button compresses against the door frame or a stop, engaging the mechanism. This causes the internal movable profile to drop in a guillotine motion, pressing the gasket firmly against the floor and effectively sealing the gap to block sound, drafts, and dust.
FAQ
-
What types of doors is this automatic baseboard compatible with?
Compatible with PVC, wood, aluminum, and armored doors.
-
How is the baseboard installed?
It mounts directly under the door with screws through pre-drilled holes on the seal.
-
Can the length of the baseboard be adjusted?
Yes, the unit can be shortened by up to 150mm for custom fitting.
-
What material is used for the sealing gasket?
The gasket is made from flame-retardant, co-extruded thermoplastic combining rigid and flexible sections for optimal sealing.
-
How does the automatic mechanism work?
Closing the door triggers a self-directing push button which lowers the mobile profile, ensuring a continuous seal along the floor.
