Product

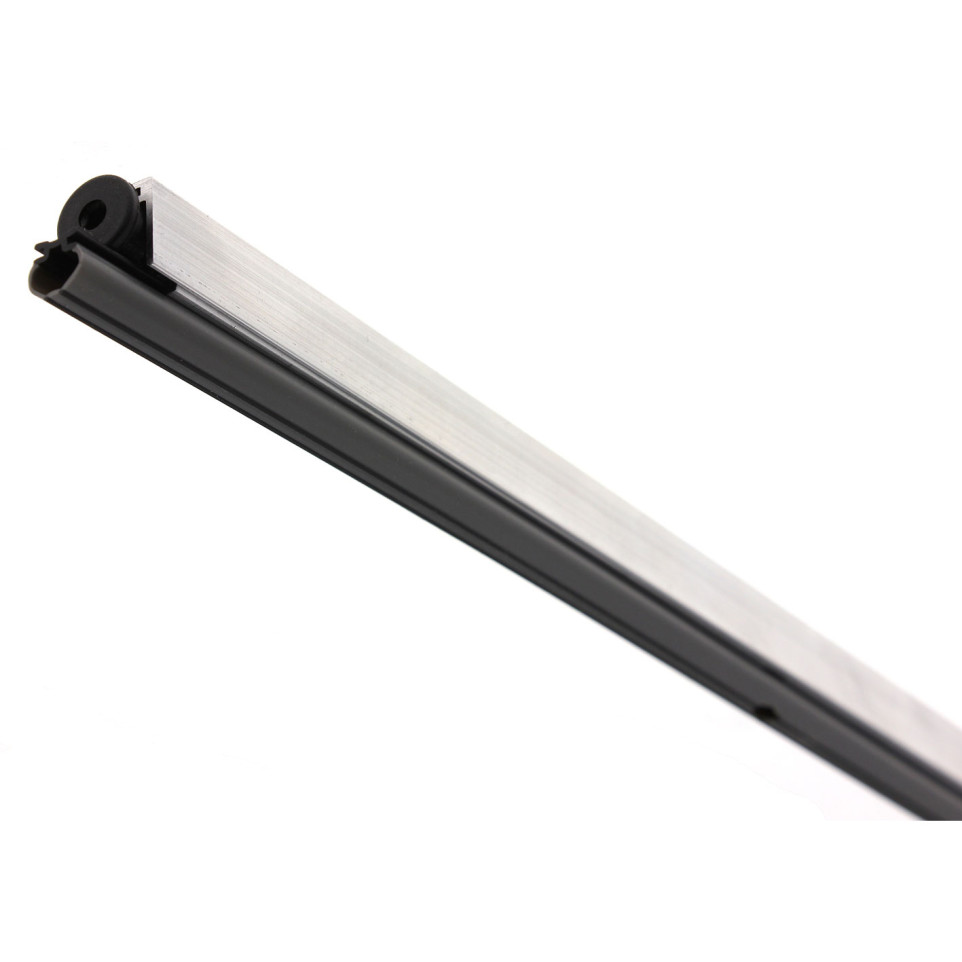

Automatic baseboard CCE SMALL 1213 is a compact drop-down seal system for doors measuring 530 mm, engineered to efficiently block drafts, dust, and noise. Suitable for both residential and commercial doors, it helps enhance energy efficiency and comfort.
Specifications
- Rigid nylon pushrod mechanism reinforced with fiberglass for stability and consistent downward pressure
- Thermoplastic co-extruded flexible + rigid gasket, flame-retardant for safety
- Adjustable metal self-directing push button with nylon cap; hex key 3 mm for fine-tuning
- Direct screw fixation via pre-drilled gasket holes
- Maximum shortenability: 150 mm from original length
- Compatible with PVC, wood, aluminum, and reinforced doors
Usage
Fit the CCE SMALL 1213 baseboard to the bottom edge of the door. When the door closes, its push button compresses against the frame or external stop, activating the bi-linkage mechanism to lower the internal profile and seal the floor gap. The thermoplastic gasket conforms to uneven floors, ensuring airtight closure.
FAQ
-
Which door types are compatible with this baseboard?
It is designed for PVC, wood, aluminum, and reinforced doors.
-
Is adjustment possible after installation?
Yes, the push button cap is adjustable with a 3 mm hex key for precise pressure, and the baseboard can be shortened by up to 150 mm.
-
How does the sealing mechanism work?
When the door closes, the push button triggers a rigid, reinforced nylon mechanism that presses the gasket evenly across the floor.
-
What material is the gasket made from?
The gasket is a co-extruded thermoplastic, combining rigid and flexible, flame-retardant materials.
-
How is the product installed?
The baseboard is fixed directly using screws through the pre-drilled gasket for secure attachment.
